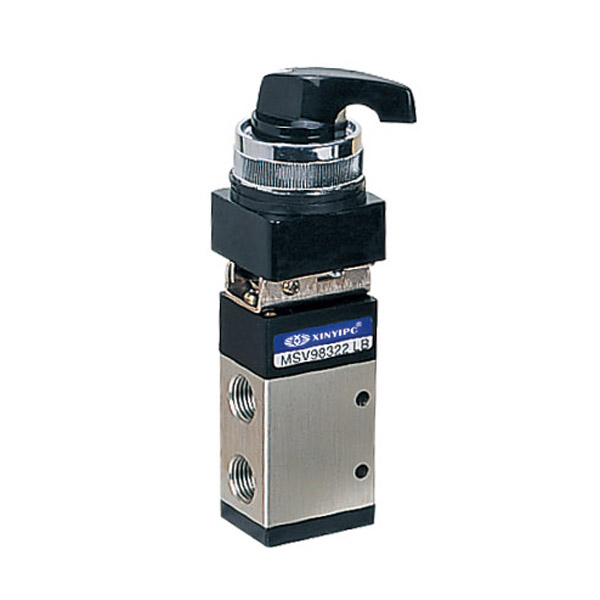

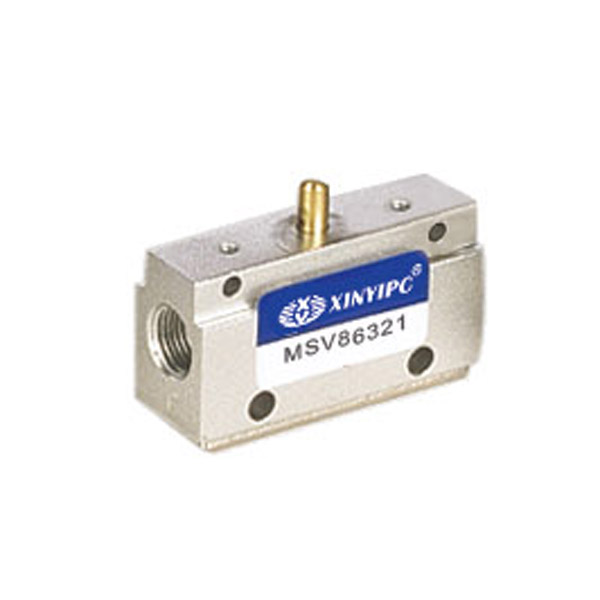

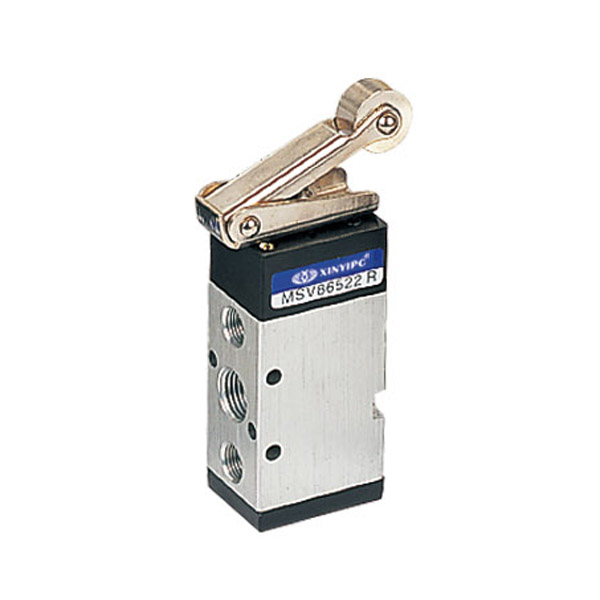

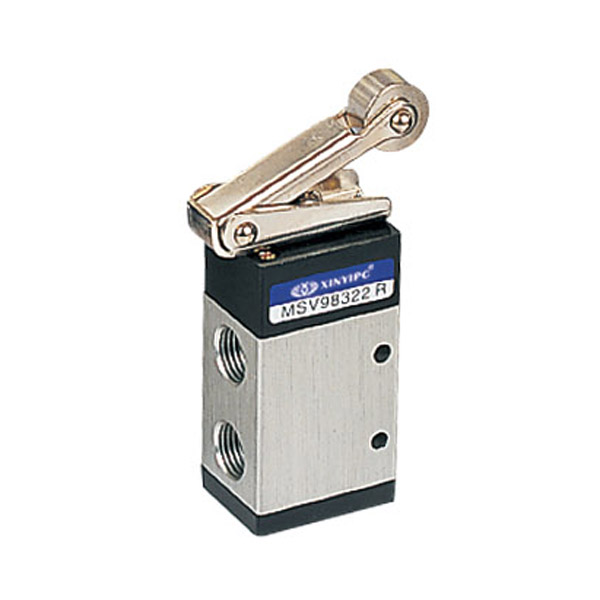

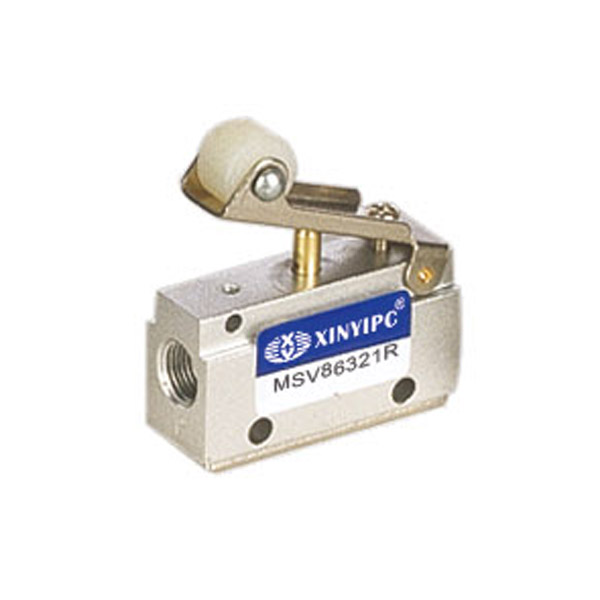

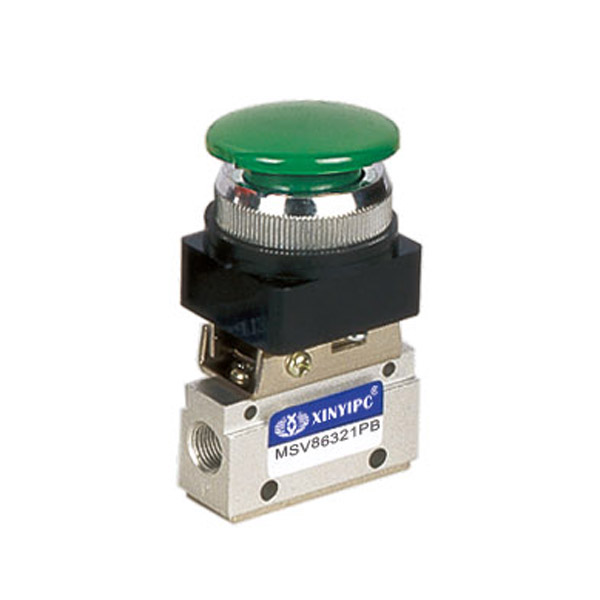

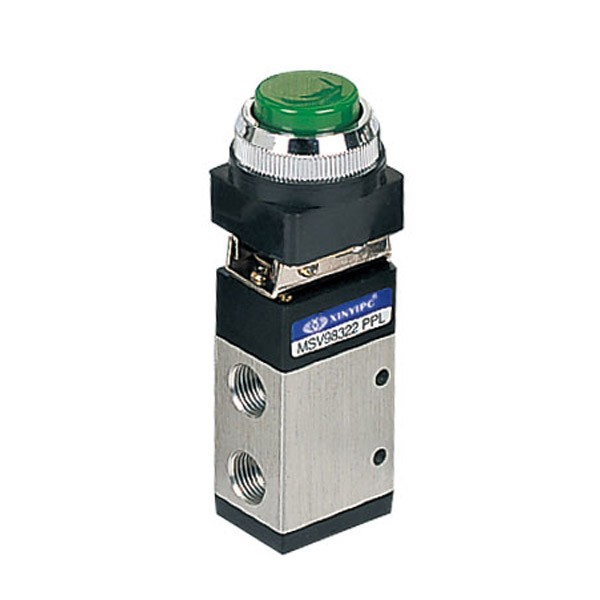

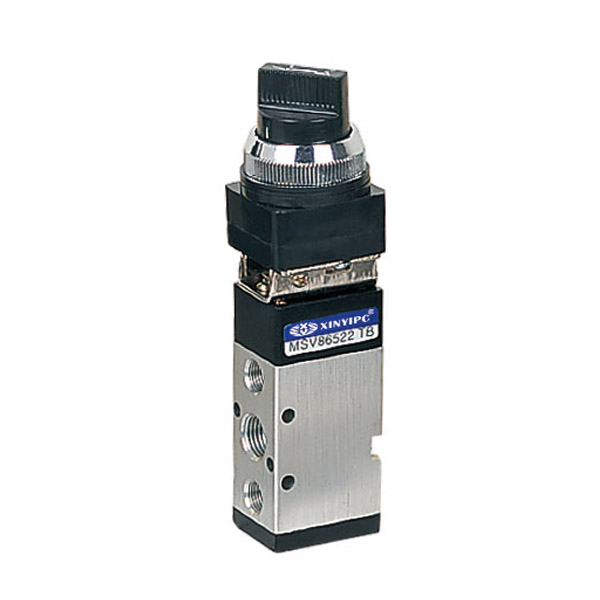

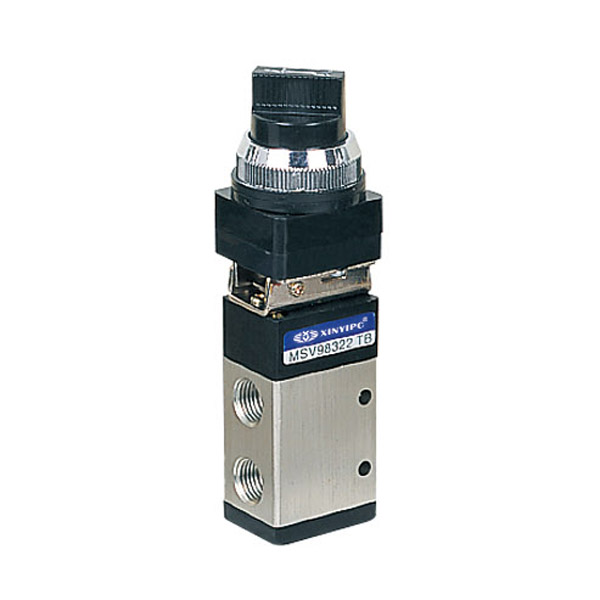

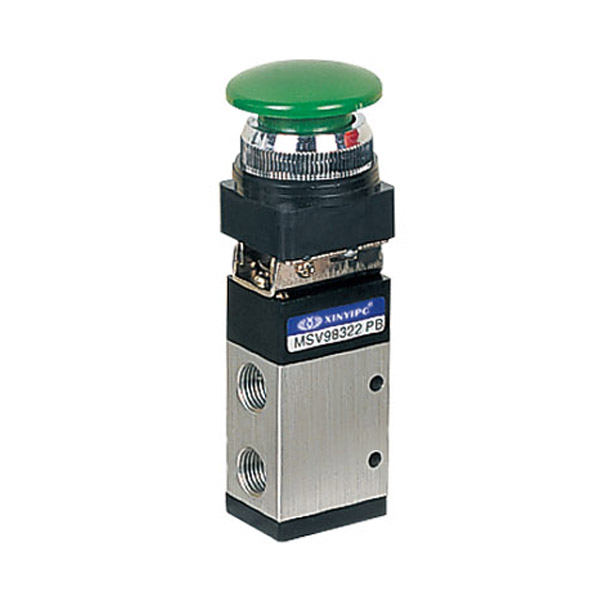

MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
MSV Mechanical Valve
Specifications
Ordering Code Specification :
Array,40 Micron Filtered Air,Array,Array,Array,0~0.8MPa,0~60℃,Dimension Sheet Series Symbol/Model PP PPL LB TB EB PB R MSV86522 A 114 119 133 136.5 134 131 10
FOB Price :
negotiation
Min.Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo,ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

 MSV Mechanical Valve MSV Mechanical Valve  MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve
MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve  MSV Mechanical Valve MSV Mechanical Valve
MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve MSV Mechanical Valve

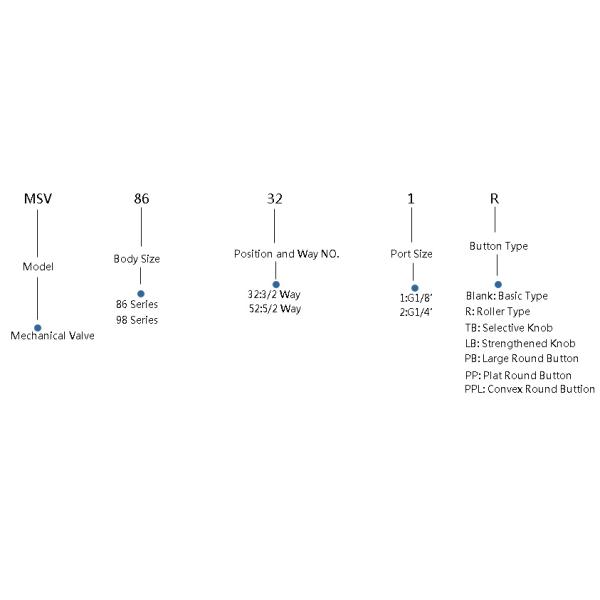

Ordering Code

MSV Mechanical Valve

Specification

Model MSV86321 MSV86522 MSV98322
Working Medium 40 Micron Filtered Air
Position and Way NO. 3/2 Way 5/2 Way 3/2 Way
Effective Sectional Area 12m㎡(CV=0.67) 16m㎡(CV=0.89) 16m㎡(CV=0.89)
Port Size G1/8′ G1/4′ G1/4′
Working-pressure Range 0~0.8MPa
Operating Temperature 0~60℃

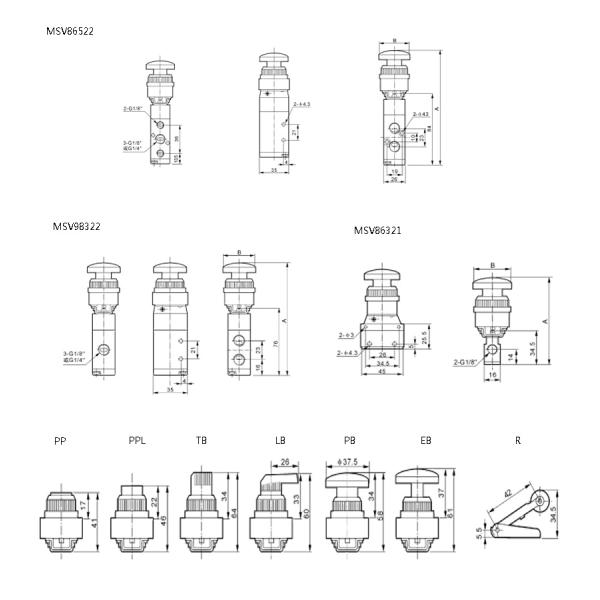

Overall Dimension
MSV Mechanical Valve

Dimension Sheet

Series Symbol/Model PP PPL LB TB EB PB R
MSV86522 A 114 119 133 136.5 134 131 107.5
B 39.5 24.5 26.5 36.5 39.5 37.5 42.5
MSV98322 A 106 111 125 129.5 126 123 99.5
B 39.5 24.5 26.5 36.5 39.5 37.5 42.5
MSV86321 A 66 71 85 88.5 86 83 59.5
B 39.5 24.5 26.5 36.5 39.5 37.5 42.5
