HV/K/4HVseries HAND SWITCH VALVE
HV/K/4HVseries HAND SWITCH VALVE
Specifications
Name :
Manual Directional Control Valve
Working Medium :
Air
Pressure Range :
0~0.8Mpa
Temperature Range :
0~60℃
Colour :
White
MOQ :
10pcs
Series :
4HV
Seal :
NBR or TC seal with Nut
Position :
Three
Way :
Four
Port Size :
G1/4, G3/8, G1/2
Switching Angle :
90º
Quick Detail :
4HV Series hand switching valve
Main body mounting :
Panel
FOB Price :
negotiation
Min. Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T, L/C, PAYPAL
Description

Product Detail

Product Tags

Detailed Product Description
Name: Manual Directional Control Valve Working Medium: Air
Pressure Range: 0~0.8Mpa Temperature Range: 0~60℃
Colour: White MOQ: 10pcs

4HV Series Hand Switching Valve White Body NBR seal or TC seal with Nut

4HV Series Three position four way hand switching valve port size G1/4,G3/8,G1/2 e.g 4HV400-15 with 90º switching angle

Quick Detail:

* 4HV Series hand switching valve

* Three position Four Way

* Port Size G1/4,G3/8,G1/2

* Main body mounting and Panel Mounting for option

* Switching angle 90º,sensitive repond acting

* Smooth switching,Long Service Life

Applications:

4HV series hand switching valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system

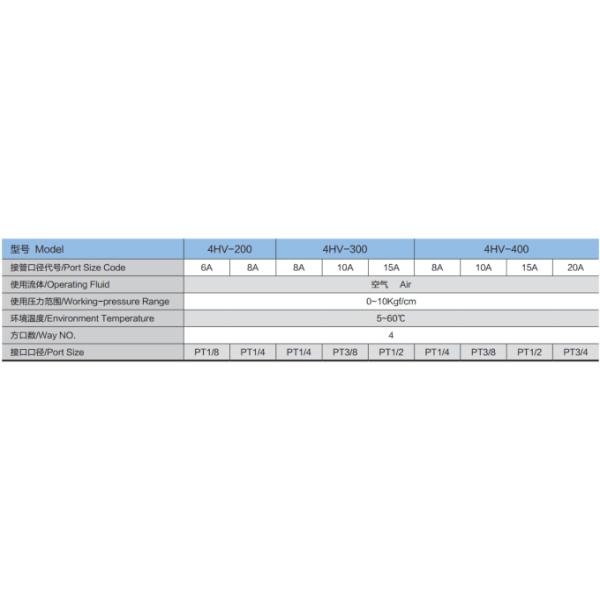

Specifiction

Model 4HV-200 4HV-300 4HV-400
Port Size Code 6A 8A 8A 10A 15A 8A 10A 15A 20A
Operating Fluid Air
Working-pressure Range 0~10Kgf/cm
Environment Temperature 5~60℃
Way NO. 4
Port Size PT1/8 PT1/4 PT1/4 PT3/8 PT1/2 PT1/4 PT3/8 PT1/2 PT3/4





HV/K/4HVseries HAND SWITCH VALVEHV/K/4HVseries HAND SWITCH VALVEHV/K/4HVseries HAND SWITCH VALVE

HV/K/4HVseries HAND SWITCH VALVEHV/K/4HVseries HAND SWITCH VALVE   HV/K/4HVseries HAND SWITCH VALVE
