HV/K/4HV Hand Switch Valve
HV/K/4HV Hand Switch Valve
HV/K/4HV Hand Switch Valve
HV/K/4HV Hand Switch Valve
Specifications
Short Description :
40 Micron Filtered Air,Array,Array,0~0.8MPa,0~60℃,Hand-switching Valve with soft rubber seals and hard pottery seals
FOB Price :
negotiation
Min. Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T, L/C, PAYPAL
Description

Product Detail

Product Tags

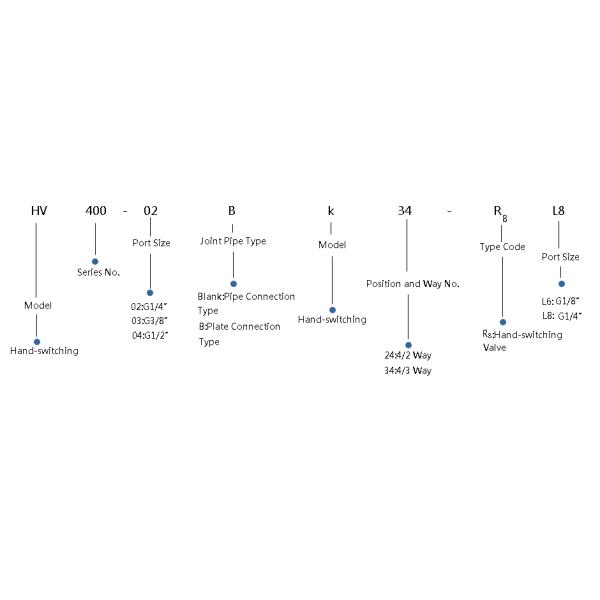

Ordering Code

HV/K/4HV Hand Switch Valve
Specification

Model HV400-02 HV400-03 HV400-04 K34R8-L6 K34R8-L8
Working Medium   40 Micron Filtered Air
Effective Sectional Area     30mm2(CV=1.68)  18mm2(CV=1.00)
Port Size  G1/4″ G3/8″ G1/2″  G1/8″ G1/4″
Working-pressure Range         0~0.8MPa
Operating Temperature         0~60℃

*Company can offer Hand-switching Valve with soft rubber seals and hard pottery seals as the seal structure form.

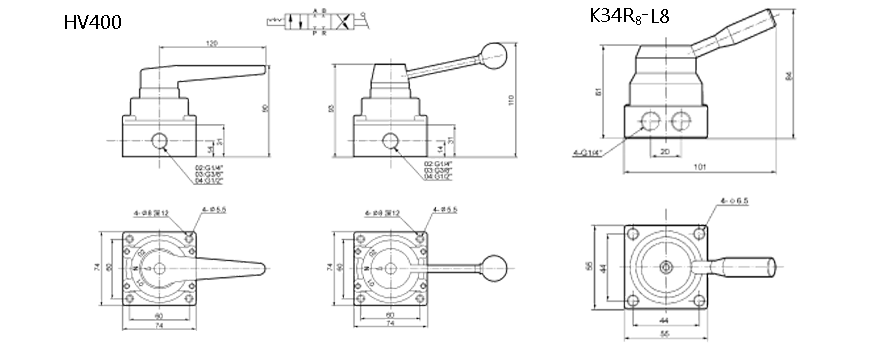

Overall Dimension

HV/K/4HV Hand Switch Valve
4HV

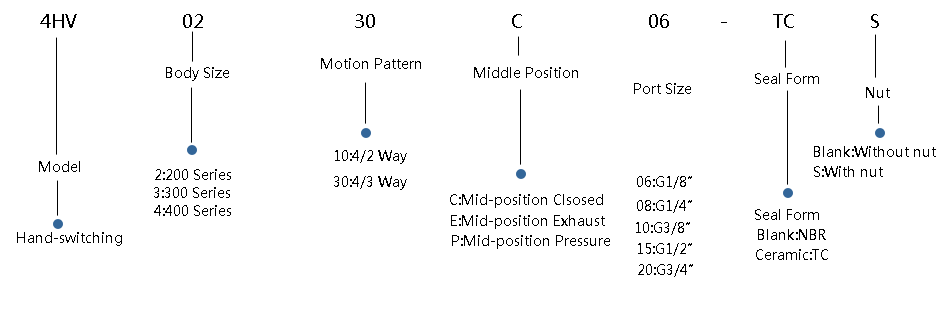

Ordering Code
HV/K/4HV Hand Switch Valve
Specification

Model 4HV-200  4HV-300  4HV-400
Port Size Code 6A 8A 8A 10A  15A 8A 10A 15A 20A
Operating Fluid     Air
Working-pressure Range     0~10Kgf/cm
Environment Temperature      5~60℃
Way NO.     4
Port Size PT1/8 PT1/4 PT1/4 PT3/8  PT1/2 PT1/4 PT3/8 PT1/2 PT3/4

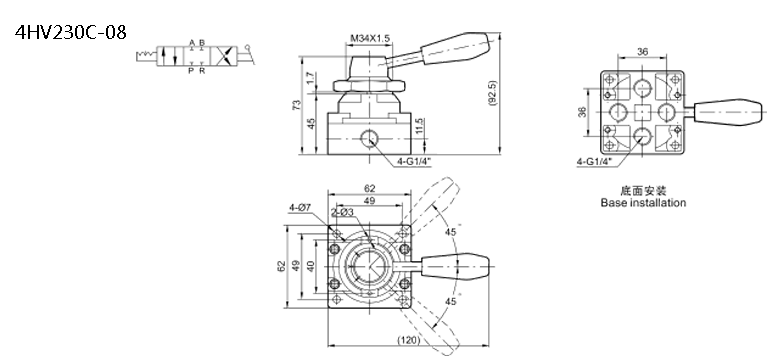

Overall Dimension
HV/K/4HV Hand Switch Valve
