Specifications
Material :
Plastic + Brass
Working Medium :
Air/oxygen/rare Gases
Max Pressure :
0.4Mpa
Pressure Range :
0~0.35Mpa
Temperature Range :
-5~60℃
Port Size :
G1/4″
Net Weight :
0.4kg/pcs
Voltage :
DC12V,DC24V
Class Of Insulation :
F Class
Cv :
0.89
Model :
MP-08
Medium :
air/oxygen/rare gases
Pressure IN-port1.2-OUT1.2 :
Min:0.001Mpa
FOB Price :
negotiation
Min.Order Quantity :
10PCS
Supply Ability :
10000 Piece/Pieces per Month
Port :
NingBo Or ShangHai
Payment Terms :
T/T,L/C,PAYPAL
Description

Product Detail

Product Tags

Detailed Product Description
Material: Plastic + Brass Working Medium: Air/oxygen/rare Gases
Max Pressure: 0.4Mpa Pressure Range: 0~0.35Mpa
Temperature Range: -5~60℃ Port Size: G1/4″
Net Weight: 0.4kg/pcs Voltage: DC12V,DC24V
Class Of Insulation: F Class Cv: 0.89

Aluminium Alloy Brass Pneumatic Solenoid Valve Plunger Kits Guide Head 100 ~ 400 Series

Specifiction

Model MP-08
Medium air/oxygen/rare gases
Pressure IN-port1.2-OUT1.2 Min:0.001Mpa
Service pressure range 0~0.35Mpa
Max operating pressure 0.4Mpa
Effective cross-sectional arer 16mm2
Cv value 0.89
Ambient temperature (-5~60c°)
Operating fluid temperature (-5~50c°)
Allowable inside lerkage pressure=0.2Mpa ≤0.1/min
Allowable outside lerkage pressure=0.2Mpa ≤0.1/min
Mounting posture According to our design
Response time ON=≤0.1MS OFF=≥0.1MS
Noise level 　
Life cycles ≥10 million times
Allowable voltage fluctuation DC12V DC24V
Range of allowable voltage ±15%
Power consumption 1W
Class of Insulation F class
Protective struchure IP65/IEC/DIN40050
Piping thread G1/4″
Lead wire length produce as requested
Dimensions Mounting 71.3mm*42mm*64.3mm(h)
Material aluminium alloy brass
Net Weight 0.4kg/pcs

 Aluminium Alloy Brass Pneumatic Solenoid Valve ...

  • Previous: Explosion Proof 12 Volt Solenoid Valve Coil 24V / 11V / 220V With Wire Lead
  • Next: Solenoid Valve 5V110-06

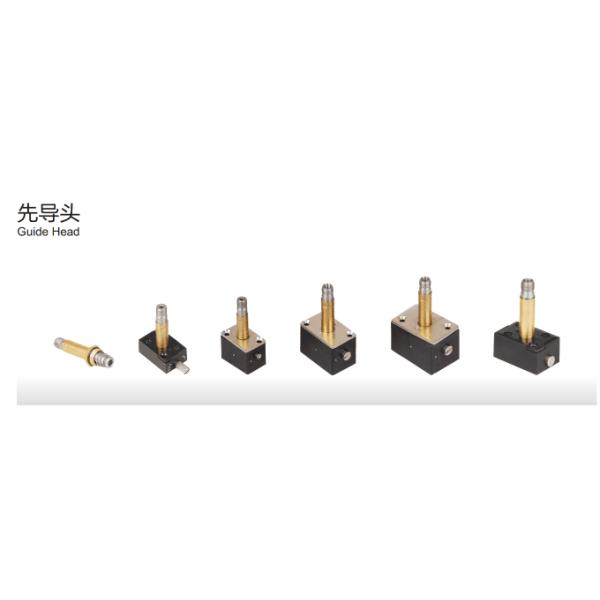

  • Guide Head
