Class D K Series Power Amplifier Professional 1000w 800w Power Amplifier
Class D K Series Power Amplifier Professional 1000w 800w Power Amplifier
Specifications
Model Number :
K Series
Place of Origin :
KPARTY CHINA
Brand Name :
KPARTY
Description

K Series

K Series

The power is supplied by the transformer, and the power amplifier is a digital amplifier circuit (Class D), which is characterized by high efficiency, small size, large power and light weight.

The whole machine adopts high-precision, high consistency patch components, military level components, and the circuit board is designed with 4-layer circuit, which has strong anti-interference ability. The perfect protection circuit can connect to low impedance sound without changing the sound.

The design of the whole machine is simple and generous. The 6MM aluminum panel and 2.8-inch LCD color display screen can display the body temperature, volume and signal strength in real time.

Harmful signal protection: DC protection, VHF protection, clipping protection.

High performance ADDA converter has high power, light weight and beautiful sound quality. It is widely used in various touring performances, bars, discos and high-end nightclubs. It is the first choice of first-class system designers and sound engineering.

TECHNICAL DATE

TECHNICAL DATE K-800 K-1000 K-1300 K-1600 K-406 K-408 K-4100 K-4130
8Ω Stereo power 800W×2 1000W×2 1300W×2 1600W×2 600W×4 800W×4 1000W×4 1300W×4
4Ω Stereo power 1200W×2 1400W×2 1600W×2 1800W×2 1200W×4 1600W×4 2000W×4 2600W×4
2Ω Stereo power 2400W×2 3000W×2 3900W×2 4500W×2 2100W×4 2400W×4 3000W×4 3900W×4
Protect DC protection, short circuit protection, current limiting voltage protection, temperature limiting protection
Total harmonic distortion Clipping below 1kHz and 1dB:<0.09% Total harmonic distortion 20Hz-20kHz 1W:<0.058%
Signal to noise ratio (weighted) > 110 dB
Channel isolation (1KHZ) > 70 dB
Frequency response 20 Hz-20kHz:+/- 0.05 dB
Damping coefficient > 400 8oh /1Khz
Input impedance Balance/Unbalance: 20/10 kohm
Amplifier gain 34 dB
Nalog channel 3-pin XLR (including 2 × 3 Audio link output)
Electronic balance input NEUTRIK terminal
Output connection Speaker Neutrik (2 x nlt4) (NEUTRIK terminal)
Cold swarm Front and rear airflow, temperature control speed
Power ON/OFF Single switch on the front panel
Control Each channel is equipped with a level attenuator
Indicator light Independent LED indicator for each channel
Nominal voltage 220 Volt AC 50 Hz
Working voltage 190-250V AC
Soft start/power supply Support
Body size(H×W×D) 88×483×488

CONSTRUCTION DRAWING

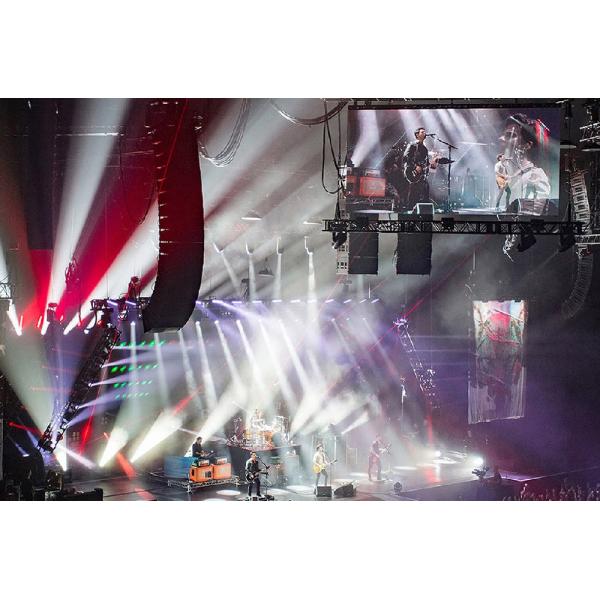

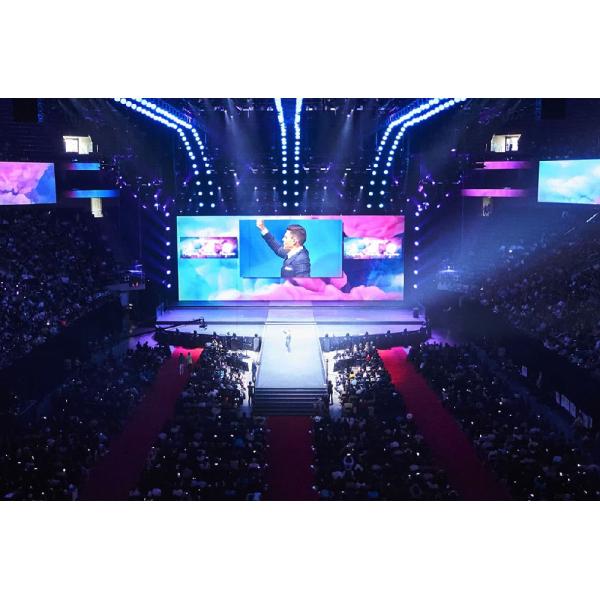

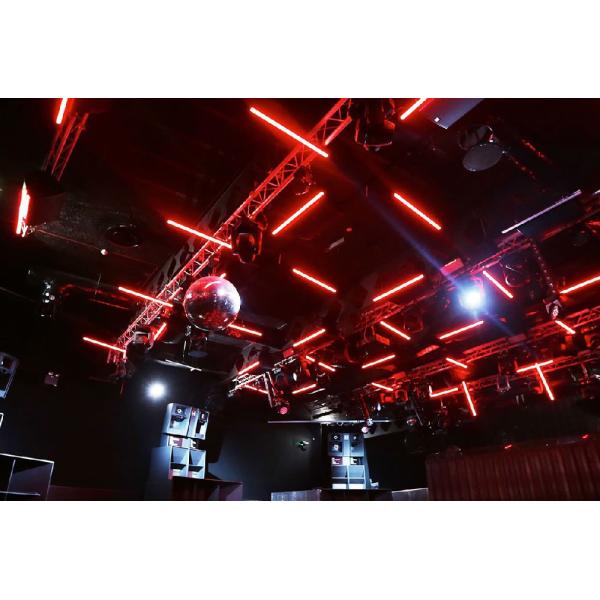

Application scenario

Class D K Series Power Amplifier Professional 1000w 800w Power AmplifierClass D K Series Power Amplifier Professional 1000w 800w Power AmplifierClass D K Series Power Amplifier Professional 1000w 800w Power AmplifierClass D K Series Power Amplifier Professional 1000w 800w Power Amplifier
