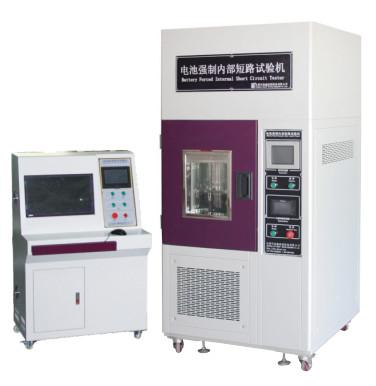

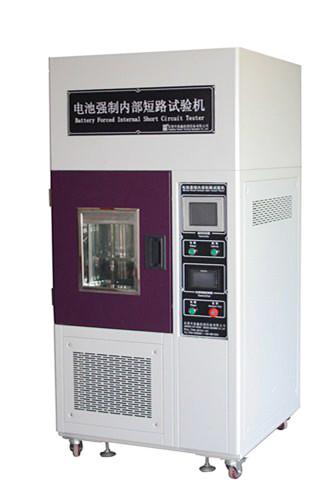

High Low Temperature Battery Internal Forced Short Circuit Testing Machine
High Low Temperature Battery Internal Forced Short Circuit Testing Machine
High Low Temperature Battery Internal Forced Short Circuit Testing Machine
High Low Temperature Battery Internal Forced Short Circuit Testing Machine
Specifications
Brand Name :
GAOXIN
Model Number :
GX-6055-C
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per month
Delivery Time :
15~20 days
Packaging Details :
Non-fumigation wooden box
Control Mothed :
PLC
Temperature Range :
0 ° C ~ 100 ° C;
Internal dimension :
W500×H600×D500mm
Voltage acquisition range :
0~10V;
Test speed :
0~20mm/s
Valid stroke :
100mm
Description

IEC 62133 High And Low Temperature Control Battery Internal Forced Short Circuit Testing Machine

This machine is designed according to the latest requirements of Japanese Industrial Standards JISC 8714: 2007 and IEC62133-2-2017. Simulate the battery to perform forced internal short-circuit test at a certain temperature or a squeeze test at a certain temperature

The control system: PC remote human-machine interface control, Voltage data recording rate 100Hz. The program can set the compress force, pressure retention time, measuring compress force, measuring of battery voltage, battery deformation, voltage drop, test speed. Curve graph. test results Save, edit, and print, etc.

Temperature controller
Temperature range 0℃~100℃；
Resolution accuracy 0.1℃；
Temperature fluctuation ±0.5℃；
Temperature uniformity ±2℃；
Limit of low temperature 0℃；
Heating rate Average 3℃/min(from 0℃to 100℃,no-load nonlinearity)
Cooling rate Average 1℃/min(from 100℃ to 0℃,no-load nonlinearity)
Internal dimension W500×H600×D500mm
Internal box material #304 stainless steel , reinforcement at the bottom
Outward volume W1050×D1500×H2100mm
Power 1∮,220V/50HZ
Weight About 150KG
Temperature control system: Korea TEMI system controller
Technical parameters of pressure system
Test load Generally 80kg (max of 100kg)
Load resolution 1/10000
Unit change kg, lb,N
Load accuracy ≤0.5%
Strength maximum multiples 7 paragraphs, automatically switch
Displacement resolution 1/1000
Displacement accuracy ±0.05 mm
Speed range 0~20mm/min adjustable, generally 0.1mm/s
Valid stroke 100mm(not including the fixture)
Test plate 200×200mm(can customize)
Voltage acquisition range 0~10V
Voltage resolution 0.1mV
Voltage acquisition frequency 100 times per second
Working table material Stainless steel with Teflon tape
Pressure direction From upper to lower
Drive Method AC Servo Motor
Displacement resolution 1/1000
Control system PLC


High Low Temperature Battery Internal Forced Short Circuit Testing Machine
