Specifications
Brand Name :
Gaoxin
Model Number :
GX-5066
Certification :
ISO 9001
Place of Origin :
Gaoxin
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
15~20 days after payment
Packaging Details :
Non-fumigation wooden box
Product name :
Battery Impact Testing Machine
The hammer weight :
9.1kg
Drop height :
(610±25)mm
Test simple max size :
300*300*100mm (L*W*H)
Dimension :
800x800x1520mm
Net Weight :
Approx. 320 kg
Power supply :
AC220±10%, 50/60HZ
Description

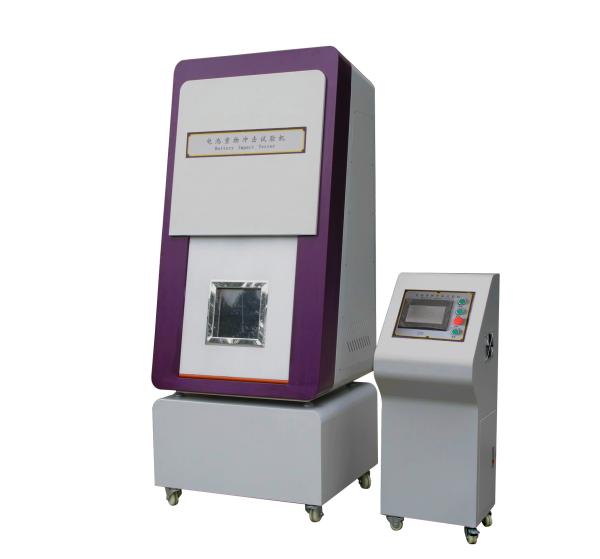

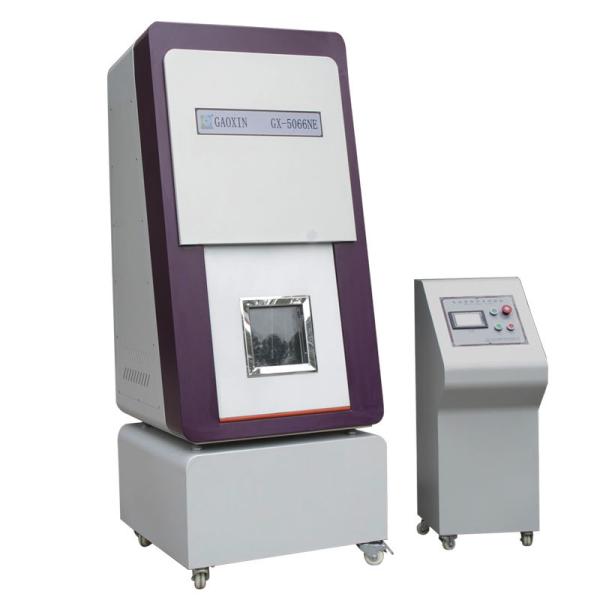

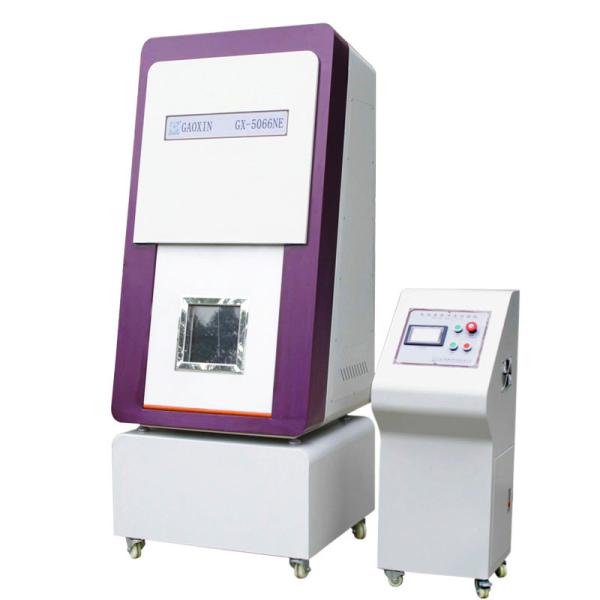

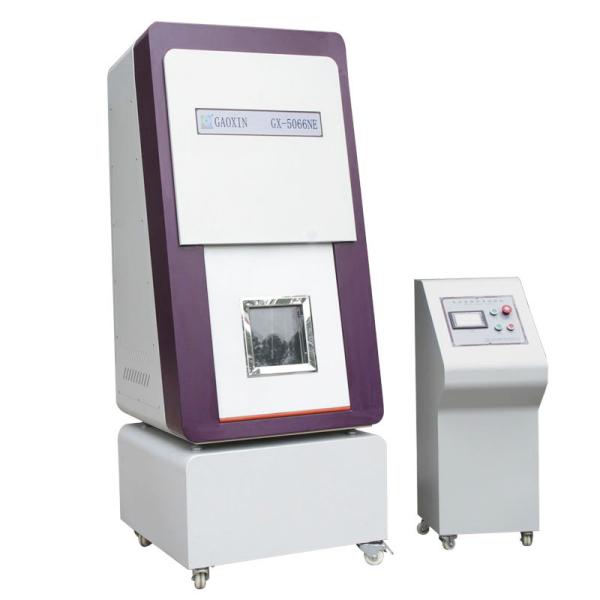

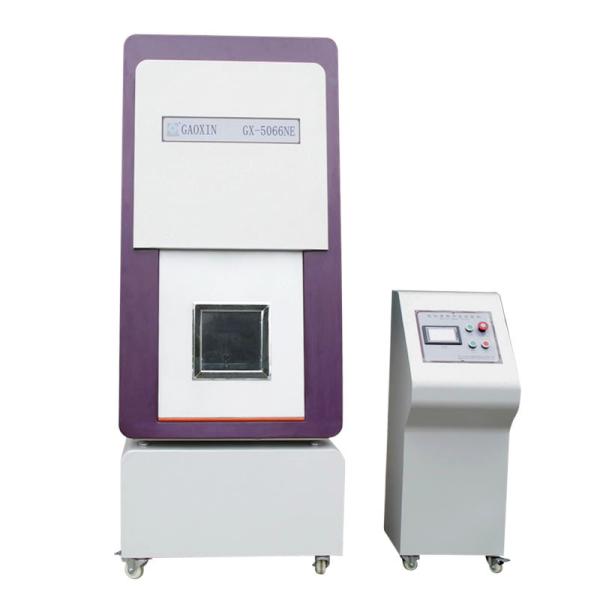

Battery Impact Testing Machine for UN38.3

Product Description

This machine is used to simulate a battery (or battery pack) that is subjected to a weight of 9.1kg±0.1kg from a free-falling state of 610mm±25mm(or 1000mm) Battery internal short circuit destructive test, by observing the test results used to asscess the safety performance of the battery.

Product specification

Weight 9.1kg
Impact height 610 mm
Impact method Lift the weight to some height and release the weight freely
Horizontal Bar 15.8mm(5/8 inch) diameter
Test chamber material SUS#304 Stainless steel
Sealing strip Silicone foam
Air outlet 120mm, in the back box
safe Door

Single door with explosion-proof observing window and explosion-proof stainless steel mesh
Impact flat Reinforce Stainless steel board

(if case of base plate sink because of gravity impact)
Power AC220V,5A
Weight About 105Kg
Control method: PLC+ wire control within 8 meters
Height display: PLC
Impact model Automatic return to the original position, automatic grab the hammer
Max. tested sample size 300*300*100mm (L*W*H)
venting: Located at the back of the cabinet, exhaust fan diameter 120mm, the duct length 100mm, convenient to connected with external laboratory high-power exhaust fan
Equipment volume 820*830*2030mm (L*W*H)
PLC controller 400*450*1080mm (L*W*H)
Power supply: AC220V±10%, 10A 50Hz 1∮

For more detail information please contact with us

UN38.3 Standard Basis Battery Vertical Impact Testing Equipment Free Drop TesterUN38.3 Standard Basis Battery Vertical Impact Testing Equipment Free Drop TesterUN38.3 Standard Basis Battery Vertical Impact Testing Equipment Free Drop Tester

1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
