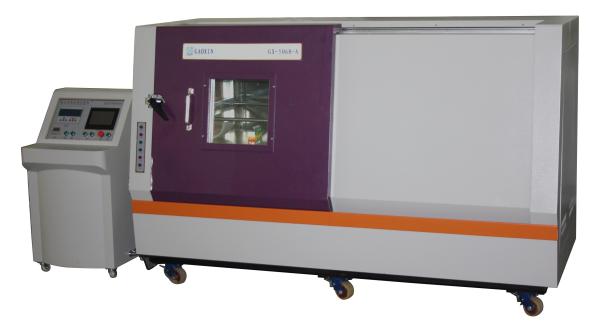

UL 1642 UL 2054 Lithium-on Battery Crush Testing Machine Servo drive
UL 1642 UL 2054 Lithium-on Battery Crush Testing Machine Servo drive
Specifications
Brand Name :
Gaoxin
Model Number :
GX-5067-A
Certification :
ISO 9001
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per months
Delivery Time :
15 ~ 20 days
Packaging Details :
Non-fumigation wooden box
Drive mode :
Hydraulic drive
Pressure range :
20T ~ 300 T or customized
Measurable battery :
500mm ~ 2000 mm
Control mode :
Controlled by computer or PLC
Stroke resolution :
0.05mm
Sampling rate :
200 times/s
Signal transmission :
RS232/ USB serial-port
Pressure control precision :
±1%, sensor resolution: 1/100,000
Lighting settings :
Explosion-proof lighting
Supply power :
AC380V± 10%,50/60HZ
Description

UL 1642 UL 2054 Lithium-on Battery Crush Testing Machine Hydraulic drive

High Accuracy Pressure Sensor Touch Screen Display Battery Crush Testing Equipment Power Battery Crush Testing Machine

Production Description

The machine is used to simulate the various types of power battery monomer, battery pack and battery system in use, the battery is subject to the backlog of cases, the battery presents the extrusion is likely to occur under different conditions, detection and evaluation of battery products of the safety performance. The equipment on fire or explosion should be able to absolutely guarantee personal safety and not cause harm to the environment.

Product specifications

Drive mode Servo motor drive
Pressure range 20T/50T/ 100T/ 200T/ 300T or customized
Measurable battery 500mm ~ 2000mm
Extrusion direction

Perpendicular to the direction of the battery plate or

parallel to the direction of the battery module
Force sensor High accuracy pressure sensor display by computer
Control mode controlled by computer or PLC
Stroke resolution 0.05mm
Sampling rate 200 times/s
Delay function

0-999 min test time adjustable
Monitor system The monitor screen can be stored as a copy
Observing window Two-layer visible explosion proof glasses
Lighting settings Explosion-proof lighting
Supply Power AC380V±10%, 50/60HZ


UL 1642 UL 2054 Lithium-on Battery Crush Testing Machine Servo drive
