Automatic Controlled Paper Testing Equipments Carton Packaging Box Incline Impact Tester
Automatic Controlled Paper Testing Equipments Carton Packaging Box Incline Impact Tester
Specifications
Brand Name :
GAOXIN
Model Number :
GX-6074
Certification :
ISO 2015
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
FOB Shenzhen, L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Non fumigation wooden box
Usage :
Paper test accessories
Applicable Object :
Packaging Carton
Description

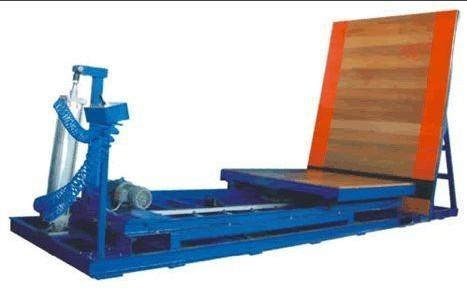

Automatic Controlled Carton Packaging Box Incline Impact Tester

Description

Change the traditional model, makes the system more advanced; A more reasonable; And hold more, measuring system is advanced in designing, live high; Main components such as: cylinder plunger, change face, electric drawing schedule, so as to make the product in a certain degree of surface and stroke, impact block board product to assess the damage.

Features

  • Flexible settle electric car, is advantageous for the simple fixed quantity, the speed of implementation requires changes in value.
  • The height of the car is lower, is advantageous to the installation and debugging.
  • Can adjust the levels will block mesa, easy to install specimens.
  • When installation, the customer will be fixed on the ground of machine without other complex operations to install, easy to test. 5. Angle adjustment with cylinder to drive, easy to test.

Parameters

Load capacity(kg) 100, 200, 300, 500, 600
Impact board size(LxW)mm 1600x2000, 2100x2400
Maximun sliding distance(mm) 1600, 2000(can be customized)
Impact velocity range(m/s) 1.305~2.608, 1.305~2.334
Velocity deviation ≤±5%
Pulley surface(L*W)mm 1000x1000, 1800x1800
Voltage there phase 380V, 50/60Hz
Working environment Temperature 0~40℃, Humidity≤80%
Control system PLC
