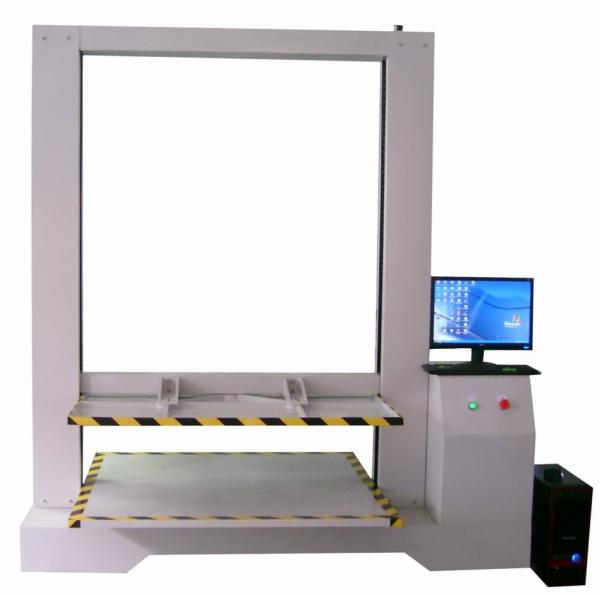

10 Ton Capacity Corrugated Carton Compression Test Equipment Computer Controlled
10 Ton Capacity Corrugated Carton Compression Test Equipment Computer Controlled
Specifications
Brand Name :
GAOXIN
Model Number :
GX-6010-L
Certification :
ISO 2015
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
FOB Shenzhen, L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Non fumigation wooden box
Material :
304# Stainless Steel
Color :
Silver
Displayer :
Computer
Max. Pressure :
10Ton
Feature :
High Capacity
Usage :
Test Compression Resistance Of Carton
Applicable Object :
Carton, Other Packaging Box
Speed :
10mm / Min
Description

Computer Controlled Corrugated Carton Compression Resistance Testing Machine with 10 Ton Capacity

Quick Details

Function

Test compression resistance of corrugated paper box

Determine loading capability and piling height
Feature Electronic controller
Weight 550kg
Volume 120×120×100cm
Test standard TAPP1-T804 JIS-Z0212 GB/T4857

Description

Carton box compression tester is mainly used for testing compression resistance of corrugated carton

box and other material packaging box, determining loading capability and piling height of carton box.

The test can check the quality and compression strength of carton box, and provides basis to avoid

damage and lost caused by poor quality carton in the process of using, carrying, storage, piling up,

and transportation.

The carton box compression tester can be used to do stacking test, and the result can be taken as

important reference for factory to determine height of piling-up packaging box.

Features

(1). Computer controlling system

(2). The tester is mainly used to check compression resistance of corrugated carton box.

(3). The tester can also do stacking test.

(4). Simple structure and easy to operate

Specifications

Capacity (optional) 1Ton,2Ton,5Ton ,10Ton
Unit (switchable) N, KN, Kgf, Lbf
Load resolution 1/10000
Load accuracy ±1%
Load induction Load cell
Force display Specialized software in computer
Printing function Serial number , peak value , average value , recordable
Load magnifying rate stepless
Test speed 10 mm/min
Stroke resolution 0.001 mm
Motor AC Motor
Structure Seamless precise screw
Protection device Over-load, over-pressure, position limitation protection device
Weight 500 kg
Power supply 1∮,220v / 50HZ
