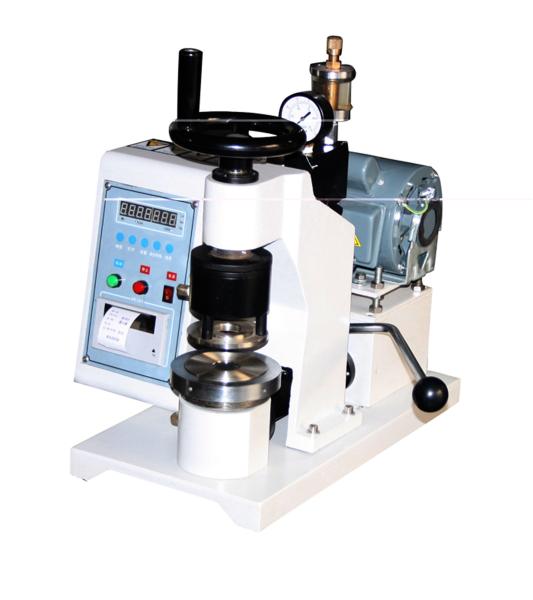

Electronic Type Semi Automatic Box Paper Burst Strength Testing Machine
Electronic Type Semi Automatic Box Paper Burst Strength Testing Machine
Specifications
Brand Name :
GAOXIN
Model Number :
GX-6020-P
Certification :
ISO 2015
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
FOB Shenzhen, L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Non fumigation wooden box
Function :
Cardboard burst strength test
Display :
LCD Display
Sensor Method :
Pressure Transducer
Indicator Method :
LED
Capacity :
250~5600kPa
Test Speed :
170cc/min.±10cc/min
Description

Electronic Type Semiautomatic Box Paper Burst Strength Testing Machine

Description

The tester is applicable for the carton box rupture strength test for various industries.

Test standard

ISO-2759,GB/T6545, JIS-P8112,L1018,ASTM-D2210,TAPPI-T403

Technical Parameter

Item Specification
Sensor method Pressure transducer
Indicator method Digital display

Capacity

(Alternative)

 High 0~100KG/cm²(accuracy to 0.1kg/ cm²)
Lower 0~16KG/cm²(accuracy to 0.02kg/ cm²)
Oil pressure speed (170±10)ml/min
Clamp ring diameter Upper ring High pressure Φ31.5mm; Lower pressureΦ30.48mm
Lower ring High pressure Φ31.5mm; Lower pressure Φ31.75mm
Oil pressure gauge 0~25kg/ cm²
Motor 1/4HP, shockproof motor
Volume 62×51×57cm
Weight About 67kg
Power Single phase AC 220V 2.6A 50HZ
Power consumption About 200W
Print item Max value and date; can restore 12 groups
Accessory

Rubber membrane 2 pieces; Aluminum foils 5 pieces; Glycerinum 1 bottle; Special wrench 1 piece
