UN 38.3 Shock Test Computer Control Battery Acceleration Shock Test Equipment
UN 38.3 Shock Test Computer Control Battery Acceleration Shock Test Equipment
UN 38.3 Shock Test Computer Control Battery Acceleration Shock Test Equipment
UN 38.3 Shock Test Computer Control Battery Acceleration Shock Test Equipment
UN 38.3 Shock Test Computer Control Battery Acceleration Shock Test Equipment
UN 38.3 Shock Test Computer Control Battery Acceleration Shock Test Equipment
Specifications
Brand Name :
Gaoxin
Model Number :
GX-5099
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
30 sets per month
Delivery Time :
10-15 working days
Packaging Details :
International wooden package
Work Platform :
200 mm×200 mm
Maximum Load :
10 kg
Peak Acceleration range :
20---300 G(can be customized)
Pulse Duration :
0.5---7ms
Volume（L×W×H） :
600×550×1950mm
Weight :
650 kg
Power :
AC220V±10% 50Hz，1KVA & 0.5—0.7MPa
Description

Computer Control Battery Acceleration Shock Tester

1. Product Name: Battery Acceleration Shock Tester

2. Product model: GX-5099

3. Test standard:

UN38.3,UL1642,UL2054,QC/T 743-2006 , QC/T 744-2006,GB 8897.4-2002,IEC60086-4 ,SN/T1414, SN/T1413 , YD1628, GJB2374, QB/T2052, IEC62133-2012, SAE-J2464,GB31241

4. Scope:

The system can capture impact wave quickly and exactly. The highest sampling rate can be up to 1 MHZ. You don't need to worry any missing even if the impact event is very small. It is also an integrated solution. You don't need to be busy with viewing and recording as it can capture the whole process from capturing impact event to generating a report. More importantly, it can also provide the function of shock response spectrum (SRS) which can help you to evaluate the potential damage of the shock pulse of actual system. Finally, the auxiliary force analysis such as deformation, shock response can help you understand more details about the impact results.

5. Technical Parameter:

Machine Parameters
Work Platform 200 mm×200 mm
Maximum Load 10 kg
Peak Acceleration range 20---300 G(can be customized)
Pulse Duration 0.5---7ms
Volume(L×W×H) 600×550×1950mm
Weight 650 kg
Power AC220V±10% 50Hz,1KVA & 0.5—0.7MPa
Measure System
Input Channel 2
Sampling Frequency 192KHz
Input Method Voltage,electricity
Coupling Method AC,DC,ICP
Pulse Duration: 50-1ms
Voltage Range -10V--+10V
Impact Wave: Half Sin
Operation System Microsoft Windows2000/XP
communication interface USB2.0
System Acceleration Sensor
Brand B&W
Model 22100
Output Electric charges
Sensitivity 3.93Pc/g
Frequency Range 0.5---12KHz
Acceleration Range ±2500G
Working Environment -40~+160℃
Working Requirement
Power 220V±10% 50Hz
Air Source 0.5--0.8MPa

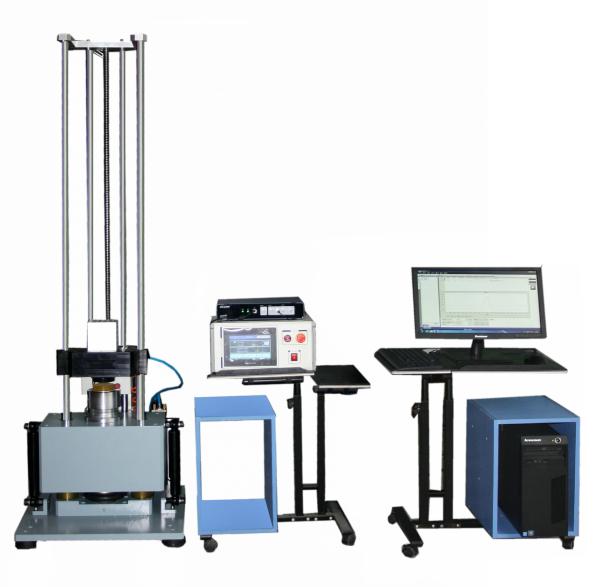

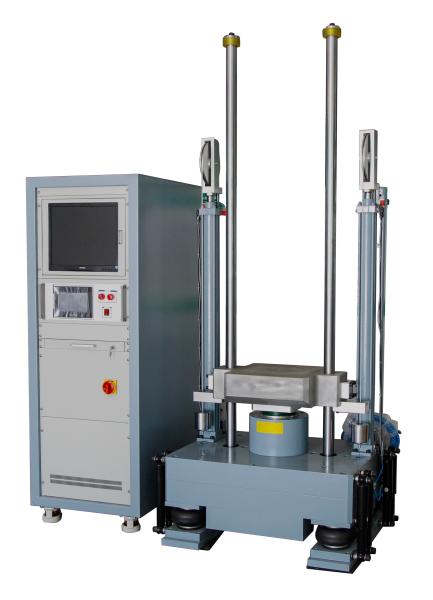

6. Product Picture


UN 38.3 Shock Test Computer Control Battery Acceleration Shock Test Equipment
