Shoes Stiffness and Impact Resistance Footwear Testing Equipment Electrical Automated
Shoes Stiffness and Impact Resistance Footwear Testing Equipment Electrical Automated
Specifications
Brand Name :
GaoXin
Model Number :
GX-5089
Certification :
CNS6863, CSA, ANSI, EN344, QAS,BS-953, 1870 ISO 8782
Place of Origin :
China Mainland
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
15 working days
Packaging Details :
Standard Wooden Package
Alternative name :
Safety shoes impact testing machine
Function :
Do impact test to steel toe, test safety capability of safety shoes
Type :
Table type
Weight :
40kg
Volume :
500×450×530mm
Description

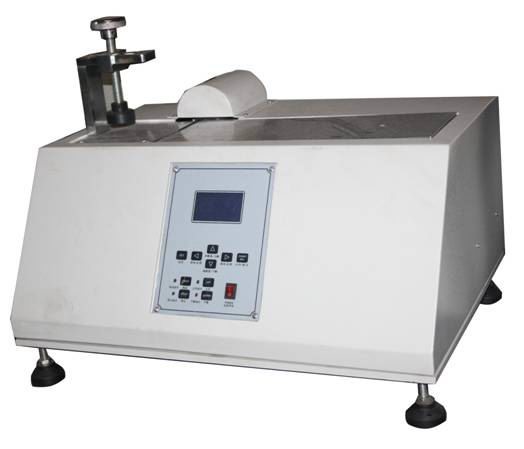

Electrical Automated Shoes Stiffness and Impact Resistance Testing Machine

Description

Shoes Stiffness Tester is used to test resistance bending to France shoe shoe 39 yards, 42 yards and British shoe NO.6, NO.8.

Using fixture to clamp the front of shoe (locating at 1/3 of half

sole of shoe, located to shaft location ), after motor launching, driving to pulley, to make shaft drive

the turning board at 100mm/min to impose the strength of 30N to shoes in order to do test.

The shaft is equipped with a decoder on shaft, and inducting angle

speed of turning board, showing the value through the display.

Specifications

Model

GX-5089

Load

30N

Capacity of the tester

500N

Bending speed

100mm/min( adjustable )

Resolution perspective

0.1degree

Resolution of force

1/10000

Measuring method

Set force to indicate bending angle, set angle to indicate bending force

Dimensions

50 x 45 x 53cm

Weight

40kg

Standards

ISO20344 8.4.1

GB/T 20991 8.4.1


General information

Place of Origin

China

Brand Name

Gaoxin

Model Number

GX-5089

Transaction information

Minimum Order Quantity

1set

Price

negotiation

Packaging Details

Non-fumigation wooden box

Delivery Time

15 working days

Payment Terms

FOB Shenzhen

Supply Ability

50 sets per month

Shoes Stiffness and Impact Resistance Footwear Testing Equipment Electrical Automated

RFQ

Q1: What is the warranty for the equipment?

A1: Warranty for the equipment is 1 year,and free lifelong technical support is available through video email.

Q2: What is the payment way?

A2: T/T ; 50% deposit and 50% before shipment.

Q3: How long the delivery time is?

A3: Generally,the delivery time is about 15-20 days, except for the special customization.

Q4: How to prove your product is qualified?

A4:The production of all equipments are strictly supervised to ensure quality. We have got various relevant certification including ISO,ASTME,DIN,JIS,UL ,BS and so on. What is more, we will carefully make installation and debugging before shipment.

Q5: Is the package strong enough for long-distance shipment?

A5:Sure.We use strong and standard wood case for the package and we will buy insurance for each shipment.
