Remote PLC Control Battery Impact Tester/ Free Drop Impact Testing Equipment
Remote PLC Control Battery Impact Tester/ Free Drop Impact Testing Equipment
Specifications
Brand Name :
GAOXIN
Model Number :
GX-5066-NE
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, FOB/CIF Shenzhen
Supply Ability :
20 sets per month
Delivery Time :
15-20 working days
Packaging Details :
International Standard Wooden Package
Product name :
Battery impact tester
Drop weight :
9.1kg
Drop height :
610mm
Standard :
UN 38.3
Material :
Stainless steel
Warranty :
12 months
Description

Remote PLC Control Battery Impact Testing Machine / Free Drop Impact Testing Equipment for UL 1642 , UN38.3
1. Product Name:Battery impact testing machine

2. Product Model:GX-5066NE

3. Description:The test sample is to be placed on a flat surface.A 15.8mm (5/8 inch) diameter bar is to be placed across the center of the sample. A 9.1kg weight is to be dropped from aheight of 610± 25mm (24±1 inch) onto the sample.

5. Technical Parameter:

Weight of Falling Ball

9.1kg or 10kg

Impact Height

0~1000mm ajustable (usually 610mm)

Heigh Display

Displayed by PLC, precision to 0.1mm

Horizotal bar

Steel Bar Dia. 15.8 mm(5/8 inch)

Impact method

Lift the weight to a certain height and release the weight freely, no Rocking, no tiltting

Power of equipment

1.5kw

Interior box

SUS#304 Stainless steel, teflon melted tape is attached to 1/3 of the cabinet, which is insulated, resistant to high temperature and flame, and easy to clean and maintain.

Outward box

A3 cold rolled sheet baking treatment

Battery pedestal plate

Thickness 20mm, ensuring long-term impact test without deformation, no dents

Test Mode

Single Test

Impact Mode

Automatic return and catch hammer

Power

1∮,AC220V±10%,50hz, 10A

Weight of machine

About 200Kg

Lift way: Automatic rising and lowering

Test Hole

One test hole is opened on the left side of the equipment box, Dia. is ¢50mm, which is convenient for connection line go through

battery fixture

Quickly fix the sample to be tested by lifting and clamping

Max. Battery tested Size

300*300*100mm (width*deep*height).

Observe window: All tempered glass explosion-proof observation window, the size is 200*200mm

Lighting device

High lightness LED, easy to install and change, explosion-proof lights

Equipment operation environment temperature

0 ~ 30℃, The most suitable temperature 25±5 ℃

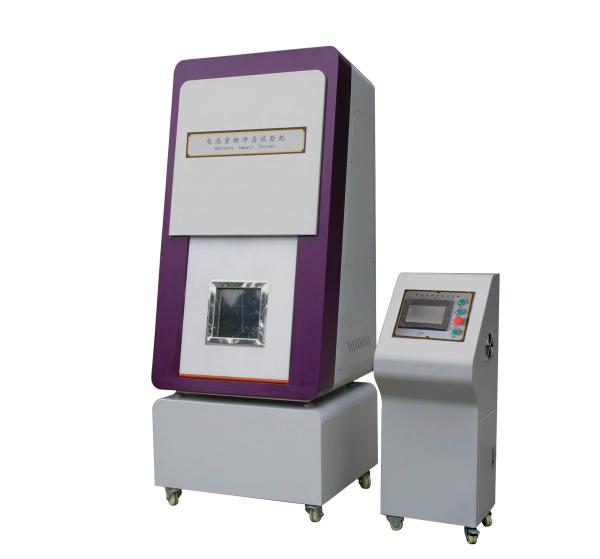

6. Picture
Remote PLC Control Battery Impact Tester/ Free Drop Impact Testing Equipment


7. Company Information

Gaoxin is committed to delivering high-quality installation, calibration, training, maintenance, consultancy, and technical support throughout the life of your test machines.

●One-year warranty including all components (except artificial damage and consumables).
●Free installation and debugging, help train 1-3 workers by our professional engineers.
●Lifelong maintenance.
●Supplementary instrument,operation manual, and product warranty card are attached with the machine.
