AC 220V 10A Footwear Testing Equipment / Water Vapor Permeability Tester
AC 220V 10A Footwear Testing Equipment / Water Vapor Permeability Tester
AC 220V 10A Footwear Testing Equipment / Water Vapor Permeability Tester
AC 220V 10A Footwear Testing Equipment / Water Vapor Permeability Tester
AC 220V 10A Footwear Testing Equipment / Water Vapor Permeability Tester
AC 220V 10A Footwear Testing Equipment / Water Vapor Permeability Tester
Specifications
Brand Name :
Gaoxin
Model Number :
GX-5094
Certification :
ISO
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T,
Supply Ability :
20 sets per month
Delivery Time :
25 working days after deposit received
Packaging Details :
International wooden package
Material :
304# Stainless Steel
Test Standards :
ISO 20344, ISO 8782-1, ISO 17699
Test Environment :
20 ℃ 65%RH
Power supply :
AC 220V, 10A
Description

ISO 20344 Water Vapor Permeability Tester for Footwear Upper Material

1．Product Name: Water vapor permeability tester

2.Description:

This machine tests the characteristics of moisture permeability of the upper and upper shoe (including leather and lining) in the environment of 20℃and 65% RH specified in the specification.

Test principle: The specimen is fixed on the opening of a test bottle equipped with a certain amount of solid desiccant. Put the test bottle in the strong air environment, move the bottle so the desiccant move constantly, so as to drive the air continued to be disturbed, weighing the test bottle, measure the weight of water vapor absorbed by the desiccant.

3. Test Standard: ISO 20344, ISO 8782-1, ISO 17699

4．Technical Parameter:

Temperature range 0~100°C
temperature fluctuation ±0.5°C
temperature uniformity ±2.0°C
Humidity range 30%R.H ~95%R.H
Humidity fluctuation ±2.5%R.H
Humidity uniformity ±3.0%R.H
Heating up time 3°C /min (nonlinear no-loads, average value)
Cooling time 1°C /min (nonlinear no-loads, average value)
bottle neck diameter About φ30 mm
Test plate rotation speed (75±5) r/min
Blade size 90mm* 75mm(about)
Blade quantity 3 pieces
Blade angle Angle of 120° between every two flat blade
Fan speed 1400r/min
Sample size φ34mm
Interior box size 400*500*400mm(W*H*D)
Volume 1200x1800x900mm(W*H*D)
Weight 220kg
Power 1∮,AC220V,20A or specified by user

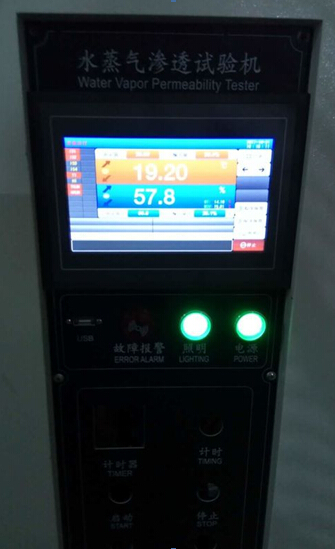

Control Panel:

AC 220V 10A Footwear Testing Equipment / Water Vapor Permeability Tester

Company information

Gaoxin is committed to delivering high-quality installation, calibration, training, maintenance, consultancy, and technical support throughout the life of your test machines.

●One-year warranty including all components (except artificial damage and consumables).

●Free installation and debugging, help train 1-3 workers by our professional engineers.

●Lifelong maintenance.
●Supplementary instrument,operation manual, and product warranty card are attached with the machine.

AC 220V 10A Footwear Testing Equipment / Water Vapor Permeability TesterAC 220V 10A Footwear Testing Equipment / Water Vapor Permeability Tester
