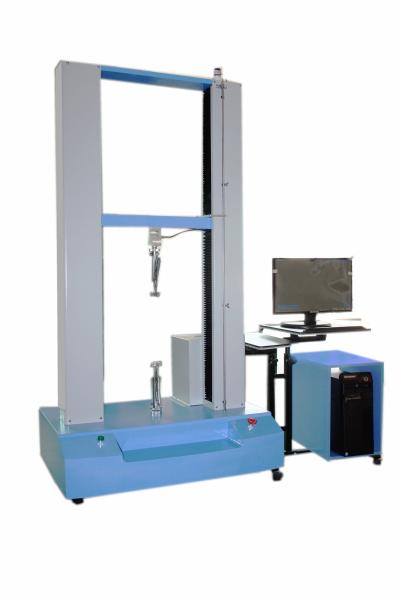

Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester
Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester
Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester
Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester
Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester
Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester
Specifications
Brand Name :
GAOIXN
Model Number :
GX-8001-M
Certification :
ISO 9001:2008; QS-9000; CE
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1set
Price :
negotiation
Payment Terms :
FOB Shenzhen, L/C, T/T, Western Union,
Supply Ability :
50 sets per month
Delivery Time :
15 work days
Packaging Details :
Non-fumigation wooden box
Power :
Servo
Type :
Universal Tensile Testing Machine
Sensor :
Celtron Load Cell
Capacity :
500, 1000, 2000, 5000 kg
Accuracy :
±0.5%
Test Speed :
25-500mm/min
Description

Flexible Easy Operation Double Column Tensile Testing Machine, Tensile Tester

Description:

Tensile testing equipment with Servo motor is widely used in controlling the quality; Rubber, Plastics;
metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production;
textile fiber; wire and cable; packaging materials etc.
Test including: tensile strength, elongation, extension rate, peeling, tearing, bending resistance, flexing, compression, shearing and adhesive strength.


Specifications:

Model

GX-8001-M

Maximum load

500, 1000, 2000, 5000 kg (optional)

Accurate

1 grade

Measuring accuracy

The value ±1% / the value±0.5%

Tester resolution

Max load 1/100000, constant the resolution

Effective testing width

400mm (or can be widened as customers requirement )

Effective tensile space

650,800,1000mm (or can be increased the height according to customers requirement)

Testing speed

From 0.5 to 1000mm/min

Unit

kgf, gf, lbf, N, kN, Mpa, pa(optional)

Accruacy of displacement measurement

Tolerance: ±0.5%

Accuracy of measured deformation

Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)

Safety

Electronic-limit protection

Testing plat form moving device

Fast /slow( two speeds to control) ,can jog

Return Back

Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation

Overload protection

Overload 10%, automatic protection

Fixture

One set of tensile clamp

Volume

800*1000*2500mm (L*W*H)

Motor

servo motor and drive

Power

220V,50HZ or as the requirement

Wattage

0.66kW (different demand of force with different motor)

Weight

300 Kg(approx)




Applicable industry:

Tensile test machine is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; petroleum & chemical; other industries.

Features of Universal Testing Machine

  • Dual Column, Stand Alone System with 50kN Maximum Capacity
  • Ergonomic Design with many Advanced Features
  • Flexible and Modular Design for Easy Expansion
  • Precision reducers, ball screws with low noise and transmission losses
  • The seal plate mining anode hardening protects the ball screw and increase service life and precision of the instrument.
  • Load cell has memory lock function which memorizes various parameters.
  • Plug and play load cell.
  • Jog control and easy operation
  • Many relevant tests can be performed with optional grips and extensometer of fixtures.



Pictures:

Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester

Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile TesterFlexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester

Flexible Easy Operation Double Column Tensile Testing Equipment , Tensile Tester

Company introduction:

Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service

Our products mainly divided into:

1. environment simulation test chamber

2. battery safety testing machine

3. Footwear and leather testers;

4, rubber and plastic tester

5, tensile tester

6. paper and packaging tester

7. cable tester

After sale service:

1. operation manual and video, till user can operate the testing machine masterly.

2. one year warranty

3. free operation training.

4. professional engineer to solve any problems or confusion about the test equipment.
