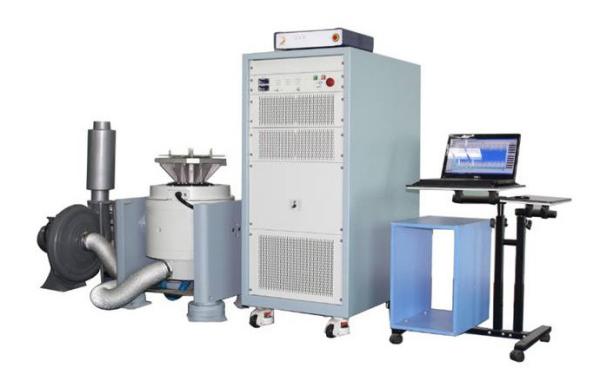

High Frequency Electro-dynamic Shaker Systems Vibration for Battery Test

1. Product Name: Battery Vibration Testing Machine

2. Model No.:GX-600-ZD

3. equipment usage and application: Vibration environment and impact environment test

Vibration test system is mainly used for products vibration and shock environment test, environmental stress screening test, reliability test.

Electromagnetic vibration tester completely according to the standard design battery related testing, simulation, under the certain condition of the vibration test of battery, the battery or battery pack is fixed on the vibration table, according to the prescribed frequency, acceleration and displacement mode along the battery sample vibration of three mutually perpendicular direction measured battery should not leak, don't lose heart, not broken, no fire and explosion.

Vibration test of the application scope is extremely broad, from circuit board, battery, plane, ship, rocket, missile, cars and home appliances and other industrial products.

Major parameters

Max. Sin exciting force: 300kg.f.peak

Max. Random exciting force: 300kg.f.rms

Max. Shock exciting force: 600kg. f.peak

Frequency Range: DC~4000Hz

Max. displacement: 25mm p~p

Max. speed: 1.8mm/s

Max. acceleration: 100g(980m/s2)

one class resonant frequency 2500Hz

Vibration mode: Random, Sin.

5. vibration type pause formula and vibration generator structure:

1. Test type: sine vibration; Random vibration;

2. Frequency response range:2-3000Hz

3. The formula:A(g)=(2πf)2Dcm/980≒A=0.002DmmF2 D=A/0.002F2

F=M(kg) ×A(g)

6. equipment composition:

7.Company introduction:

Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service

Our products mainly divided into:

1. environment simulation test chamber

2. battery safety testing machine

3. Footwear and leather testers;

4, rubber and plastic tester

5, tensile tester

6. paper and packaging tester

7. cable tester

After sale service:

1. operation manual and video, till user can operate the testing machine masterly.

2. one year warranty

3. free operation training.

4. professional engineer to solve any problems or confusion about the test equipment.
