Independent Three Zone Temperature Rande of －40℃ ～ +150℃ Cold Heat Temperature Fast Change Thermal Shock Test Chamber
Independent Three Zone Temperature Rande of －40℃ ～ +150℃ Cold Heat Temperature Fast Change Thermal Shock Test Chamber
Specifications
Brand Name :
Gaoxin
Model Number :
GX-3000-CH
Certification :
ISO 2008
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
FOB Shenzhen, L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Non-fumigation wooden box
material :
304# stainless steel
color :
silver
displayer :
Touch screen
test standard :
GJB
type :
three zones
usage :
high termperature, low temperature resistance
applicable object :
mental, plastic, rubber, electronics
spraying method :
Continuous spray or intermittent spray
Description

Independent Three Zone Temperature Rande of －40℃～+150℃ Cold Heat Temperature Fast Change Thermal Shock Test Chamber

1. Quick Details

Alternative name

Three Zones Thermal Shock Tester

Function

Testing material structure or composite materials in instant and

continuous temperature changing environment, check the chemical

and physical damage.

Provides basis and reference to improve quality of products

Type

Three zones

Weight

180kg

Internal space

1510mm*1730mm*1660mm

Corresponding test standard

GJB150, GJB360, GBJ367, GB/T5170, GB10592

2. Description

Thermal shock tester also is named rapid temperature changing tester or thermal cycling chamber.

The tester is used for testing material structure or composite materials.

The specimen will be exposed to continuous and instant changing circulation of extreme high and low

temperature.Then check the chemical change and physical damage of the specimen caused by instant temperature

change.The tester is applied to mental, plastics, rubber, electronics. The test can provides basis and reference

to improve quality of products.The tester is divided into high temperature zone, low temperature, and test tank.

The specimen shall be still, while the tester employ special coldness and heat storage system. The cold

and hot wind will be switched and channeled to the test tank in moment, and finish the test when get the

set time.

3. Features

a. The tester is used for test chemical change and physical damage of specimen after suffering

instant extreme high and low temperature change.

b. The tester is divided three zone.

c. Widely usage.

4. Specifications

Model

GX-3000-CH

Temperature range of test tank

－40℃～+150℃

Preheating range of high temperature tank

＋60℃～＋150℃ (30min, room temperature ＋

10～＋30℃)

Precooling range of low temperature tank

－10℃～－40℃

Cooling time for low temperature tank

About 80min from +20℃ to -40℃ (room temperature

＋10～＋30℃)

Temperature Fluctuation

±2.0℃

Temperature uniformity

±3.0℃

Temperature shock recovery time

Within 5min

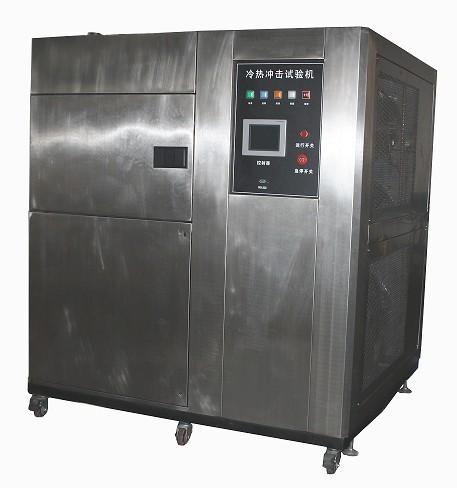

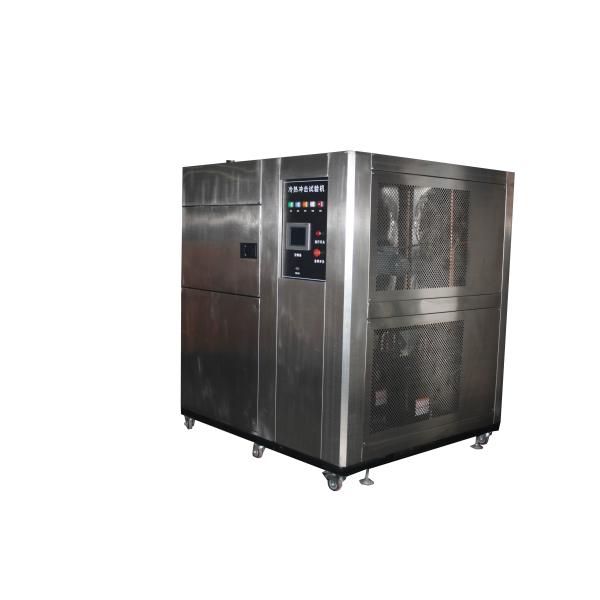

5. Product Picture

Independent Three Zone Temperature Rande of －40℃ ～ +150℃ Cold Heat Temperature Fast Change Thermal Shock Test Chamber

6. Company information

Independent Three Zone Temperature Rande of －40℃ ～ +150℃ Cold Heat Temperature Fast Change Thermal Shock Test ChamberIndependent Three Zone Temperature Rande of －40℃ ～ +150℃ Cold Heat Temperature Fast Change Thermal Shock Test ChamberIndependent Three Zone Temperature Rande of －40℃ ～ +150℃ Cold Heat Temperature Fast Change Thermal Shock Test Chamber
