Specifications
Brand Name :
Gaoxin
Model Number :
GX-5028
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
FOB Shenzhen
Supply Ability :
50 sets per month
Delivery Time :
15-25 working days
Packaging Details :
Non-fumigation wooden box
Certification :
ISO 9001:2008
Material :
Stainless steel
Function :
Abrasion tester for rubber
Color :
Silvery white(or customize)
Standard :
DIN-53516, ISO-4649, GB/T 9867, SATRA TM174, JIS-K6264.
Volume :
70×30×30cm
Weight :
61kg
Description

Synthetic Leather Rubber Testing Equipment of DIN Abrasive Tester , Abrasion Resistance


1.Quick Details

Name

DIN abrasive tester

Usage

test the friction of surface of rubber , tire, conveyor belt, shoe sole, synthetic leather

Power

1∮,AC220V,3A

Weight

61kg

Volume

70×30×30cm



2. Description

The tester is for the measurement of abrasion resistance or rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that are subject to abrasive/ frictional wear in actual service. The abrasion resistance is measured by moving a test piece across the surface of an abrasive sheet mounted to a revolving drum, and is expressed as volume loss in mm3 or abrasion resistance index in percent. For volume loss, a smaller number indicates better abrasion resistance, while for the abrasion resistance index; a smaller number denotes poorer abrasion resistance.

3. Specifications

Sample

Diameter of 16mm,thickness of 6~15mm

Fixture load

2.5N

Weight load

2.5N,5N

Fixture lateral moving distance

4.2mm/circle

Diameter of the cylinder

(150±0.2)mm

Length of the cylinder

460mm

Rotation speed of the cylinder

40rpm

Distance reservation

40m/20m(equals 84 circles/42 circles)

Abrasion speed

0.32m/sec

Incline angle

3°(the angle between sample support axle and the vertical plane of cylinder)

Volume

70×30×30cm

Weight

61kg

Power

1∮,AC220V,3A


4.Pictures

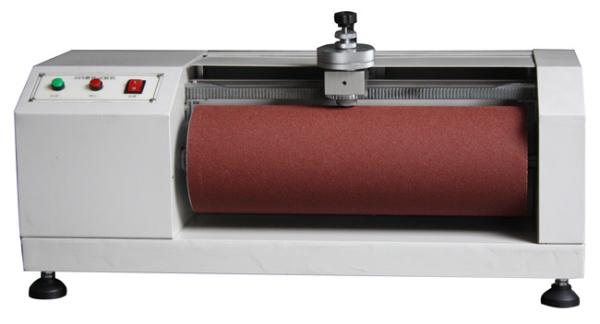

Rubber Testing Equipment Rotary Drum DIN Abrasive Tester , Abrasion Resistance Tester

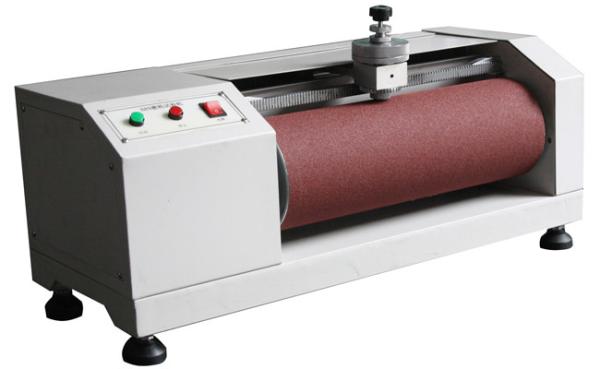

Rubber Testing Equipment Rotary Drum DIN Abrasive Tester , Abrasion Resistance Tester

Rubber Testing Equipment Rotary Drum DIN Abrasive Tester , Abrasion Resistance Tester
Rubber Testing Equipment Rotary Drum DIN Abrasive Tester , Abrasion Resistance Tester
