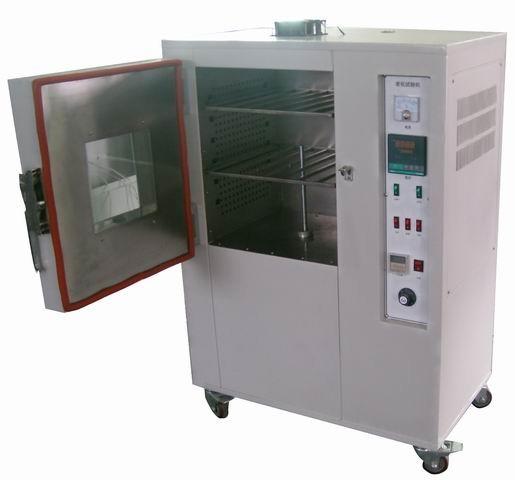

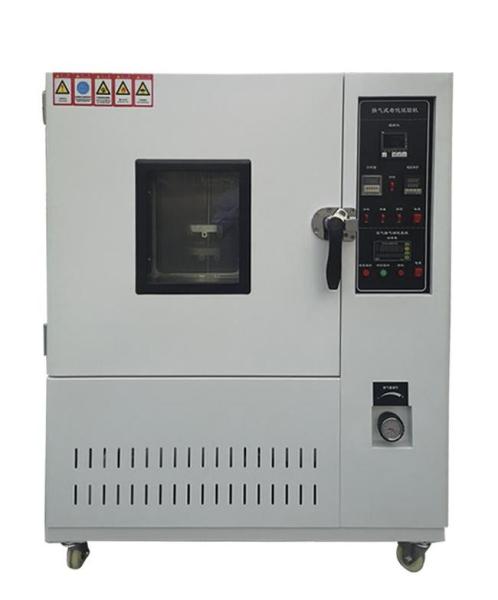

Rubber Aging Test Movable Environmental Test Chamber Rubber Lab Aging Oven High Temperature Lab Oven
Rubber Aging Test Movable Environmental Test Chamber Rubber Lab Aging Oven High Temperature Lab Oven
Rubber Aging Test Movable Environmental Test Chamber Rubber Lab Aging Oven High Temperature Lab Oven
Rubber Aging Test Movable Environmental Test Chamber Rubber Lab Aging Oven High Temperature Lab Oven
Specifications
Brand Name :
Gaoxin
Model Number :
GX-3010
Certification :
ISO 2008
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
FOB Shenzhen, L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Non-fumigation wooden box
material :
304# stainless steel
color :
silver grey
type :
vertical type, movable
usage :
aging resistance test
applicable objects :
rubber and plastics
temperature range :
Normal temperature to 300 degrees
Description

Rubber Aging Test Movable Environmental Test Chamber Rubber Lab Aging Oven High Temperature Lab Oven

1. Quick Details

Alternative name

Anti-Aging Testing Chamber for rubber

Function

Test aging resistance of rubber and plastic by high temperature

Type

Three dimension

Feature

Specimen can be rubber or plastic

Test Anti-aging performance

Weight

87kg

Volume

91*55*99mm

Corresponding test standard

ASTM-D1052,ISO5423,4643, HG/T 2411-2006

2. Description

Rubber aging test chamber is used for testing anti-aging performance of rubber and plastics.

Hang a specimen on the holder;

heat for certain time with setted temperature;

Take out and placed under normal temperature for 4 hours.

Test its tensile strength, elongation, and rest rate.

calculate the change rate of tensile and elongation before and after heat.

It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.

Anti yellowing: Aging test chamber stimulate the atmosphere environment, driven by the sun ultraviolet

radiation.

It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to

atmosphee for 6 months.

3. Features

(1). Test aging resistance of rubber or plastics by high temperature.

(2). Temperature range is from normal temperature to 300 degrees, usually 120 degrees.

(3). The tester is movable and custom made for the inner box dimension or Max. temperature.

4. Specifications

Model

GX-3010-A

GX-3010-B

GX-3010-C

Dimension of interior chamber

40×40×45cm

50×50×60cm

60×60×60cm

High temperature

Normal temp.～200℃or300℃

Rotating speed of specimen stand

5~10rpm

Electric heat

3KW

4KW

5KW

motor

1/4HP

Volume

91×55×99cm

101×65×114cm

88×83×125cm

Weight

87kg

90kg

150kg

Power

1∮,220V,15A

1∮,220V,19.5A

1∮,220V,26A

Heating temperature and timing

Rubber specimen

Plastic specimen

90℃

96hr

100℃

48hr

100℃

48hr

100℃

96hr

120℃

96hr

120℃

48hr

120℃

120hr

Rubber Aging Test Movable Environmental Test Chamber Rubber Lab Aging Oven High Temperature Lab OvenRubber Aging Test Movable Environmental Test Chamber Rubber Lab Aging Oven High Temperature Lab OvenRubber Aging Test Movable Environmental Test Chamber Rubber Lab Aging Oven High Temperature Lab Oven
