Servo Drive Cell Battery Crush Safety Testing Equipment Battery Testing Equipment Max Strength Up To 20KN
Servo Drive Cell Battery Crush Safety Testing Equipment Battery Testing Equipment Max Strength Up To 20KN
Specifications
Brand Name :
GAOXIN
Model Number :
GX-5067-CSM
Certification :
ISO 2008
Place of Origin :
Guangdong China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
15 work days
Packaging Details :
Non-fumigation wooden box
Material :
Stainless Steel
Function :
Battery Crush Test
Force Range :
13kN（1kN~20kN Adjustable）
Driver :
Servo Motor Drive
Pressure Display :
High Precision Pressure Sensor And Computer Screen Display
Control Method :
Test Software + Computer Screen Display
Unit Change :
Kg, N, Lb
Power :
AC380V， 50~60HZ， 10A
Description

Hydraulic Driven Crush Cell Phone Battery Testing Equipment Battery Testing Equipment Max Compression Strength Up To 20KN

Specifications:

Driver

Servo motor drive

Crush head

Easy to install and change, standard round crush plate with diameter of 15 cm or square plate with size of 15cm*15cm

Pressure range

13kN(1kN~20kN adjustable)

Pressure accuracy

0.1N

Sensor resolution

1/100,000

Pressure display

High precision pressure sensor and computer screen display

Control method

Test software + computer screen display

Unit change

kg, N, lb

Displacement Resolution

0.01 mm

Data sampling frequency

100 times/second

Compression space

300*300*200mm(W*D*H)

Stroke

200mm
Test Speed 0.01mm~20mm/s adjustable

Time delay function

0-999min

Weight

220kg

Volume

800×630×1580mm(W×D×H)

Structure

Interior box:SUS304# stainless steel,
Outward box:A3 Steel plate with paint and observation window(200*200mm)

Power

AC380V, 50~60HZ, 10A


Description:

The tester is applied to test safety capability of battery by simulating lithium battery suffered crush in the process of transportation, storage and handling home waste under certain temperature. The specimen of battery is qualified without leakage, explosion, breaking or fire.


Pictures:

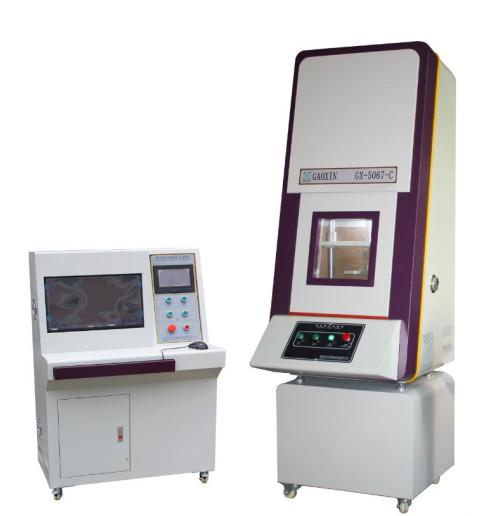

Servo Drive Cell Battery Crush Safety Testing Equipment Battery Testing Equipment Max Strength Up To 20KN

Company introduction:

Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.
Our advantages:
(1) Speciality in testing equipment
(2) Various products to choose from
(3) Accept customization
(4) Excellent after-sale service

Our products mainly divided into:

1. environment simulation test chamber
2. battery safety testing machine
3. Footwear and leather testers;
4, rubber and plastic tester
5, tensile tester
6. paper and packaging tester
7. cable tester

After sale service:

1. operation manual and video, till user can operate the testing machine masterly.
2. one year warranty
3. free operation training.
4. professional engineer to solve any problems or confusion about the test equipment.

Servo Drive Cell Battery Crush Safety Testing Equipment Battery Testing Equipment Max Strength Up To 20KN
