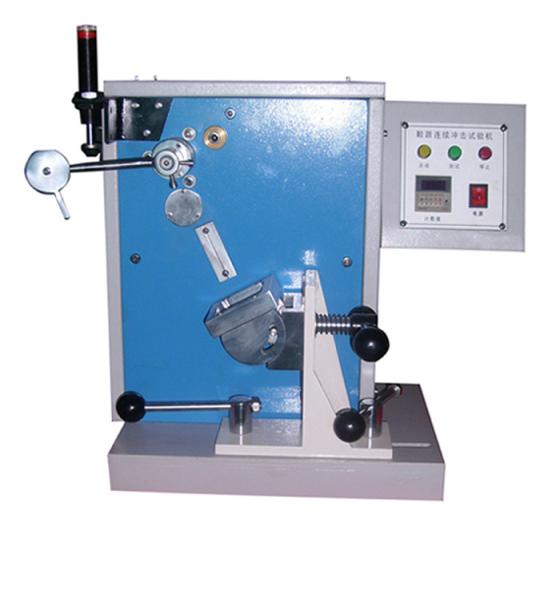

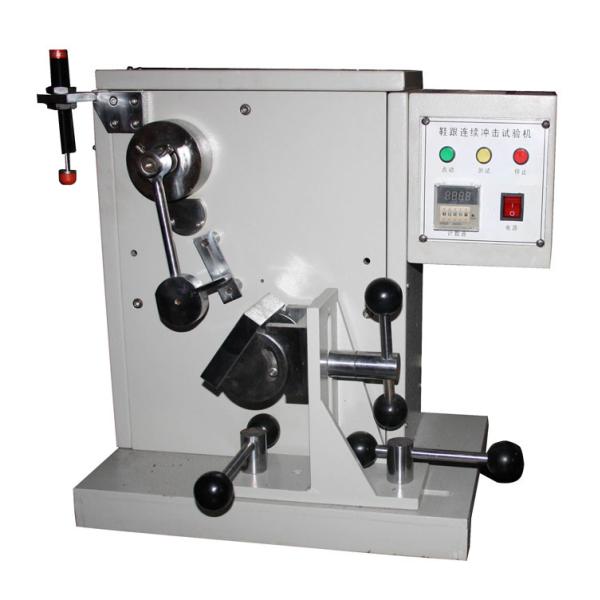

Continuous Impact Tester Footwear Testing Equipment For Heel Stability Performance
Continuous Impact Tester Footwear Testing Equipment For Heel Stability Performance
Continuous Impact Tester Footwear Testing Equipment For Heel Stability Performance
Continuous Impact Tester Footwear Testing Equipment For Heel Stability Performance
Continuous Impact Tester Footwear Testing Equipment For Heel Stability Performance
Continuous Impact Tester Footwear Testing Equipment For Heel Stability Performance
Continuous Impact Tester Footwear Testing Equipment For Heel Stability Performance
Continuous Impact Tester Footwear Testing Equipment For Heel Stability Performance
Continuous Impact Tester Footwear Testing Equipment For Heel Stability Performance
Continuous Impact Tester Footwear Testing Equipment For Heel Stability Performance
Specifications
Brand Name :
Gaoxin
Model Number :
GX-5044
Certification :
BS5131、SATRA TM21
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
10-15 working days
Packaging Details :
International standard wooden package
Product Name :
Woman's shoes heel impact tester
Product Model :
GX-5044
Test Standard :
BS5131、SATRA TM21
Capacity :
0.68 J/blow
Pendulum Bob :
Diameter of 12.5 ±1 mm
Hammer :
Diameter of 57 mm, thickness of 20 mm
Impact Head :
Length of 35 mm, width of 20 mm, radius of 3 mm, thickness of 6 mm
Test speed :
60 times/min
Description

Shoes Heel Continuous Impact Tester for Footwear Heel Stability Performance​

1. Product Name:Shoes heel continuous impact tester

2. Product Model:GX-5044

3. Description:The tester is mainly designed for the women’s shoes heel impact resistance test. The impact hammer hit the heel freely once a second with the energy of 0.68J until the heel is broken or reaches the maximum fatigue tests.

4. Test standard:BS5131(test times of 20000),SATRA TM21

5. Technical Parameter:

Hitting Frequency

60 blows/min

Hitting Energy

0.68 J/blow

Pendulum Bob

Diameter of 12.5 ±1 mm

The distance between the transmission shaft

152±2 mm

Impact Hammer

Diameter of 57 mm, thickness of 20 mm

Impact Head

Length of 35 mm, width of 20 mm, radius of 3 mm, thickness of 6 mm

Length of the impact head

64 mm

Pendulum Bob Level Weight

456.5 g

Testing Speed

60 times/min

Testing base adjusting base

Up and down～90mm,left and right～80mm,angle～180°

Counter

LED display, 0~999,999

Power

220 V 3A (can customize)

7.

6.

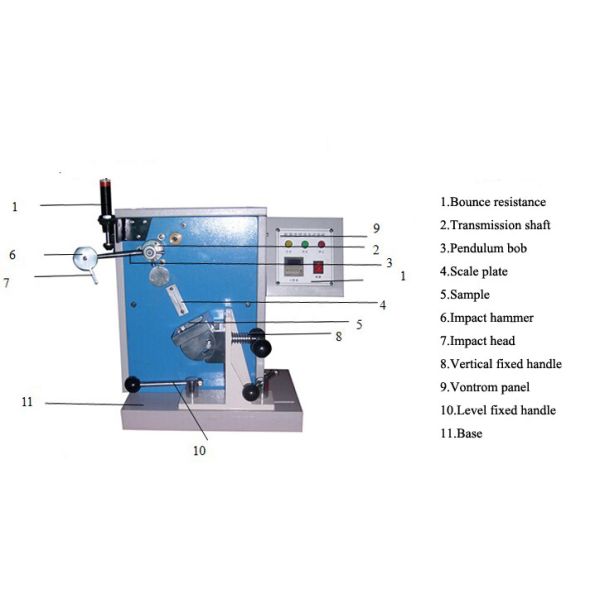

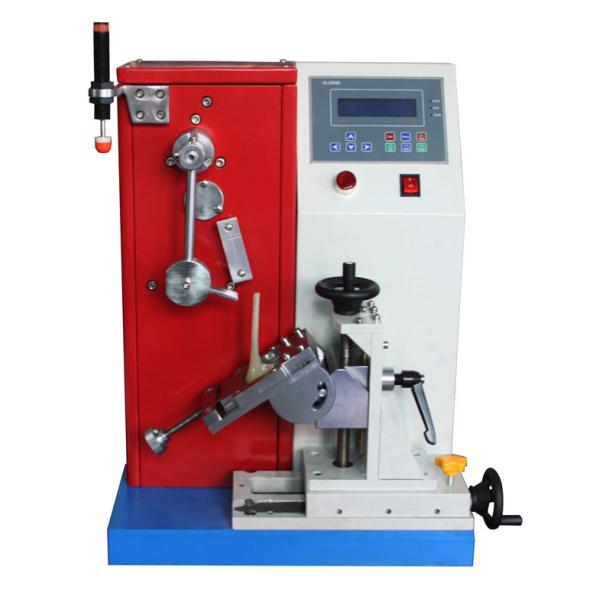

Continuous Impact Tester Footwear Testing Equipment For Heel Stability PerformanceContinuous Impact Tester Footwear Testing Equipment For Heel Stability PerformanceContinuous Impact Tester Footwear Testing Equipment For Heel Stability PerformanceContinuous Impact Tester Footwear Testing Equipment For Heel Stability Performance

6. Company information

Dongguan GaoXin Testing Equipment Company, established in 1990, is specialized in rubber, leather and footwear testing machine. As a high-tech company with the combination of design, production and marketing, GaoXin has provided many large firms and test laboratory with high-quality products and superior service. With the decades of research experience and persistent pursuit of perfection, we believe that GaoXin will grow to a well-known international company in the near future.
