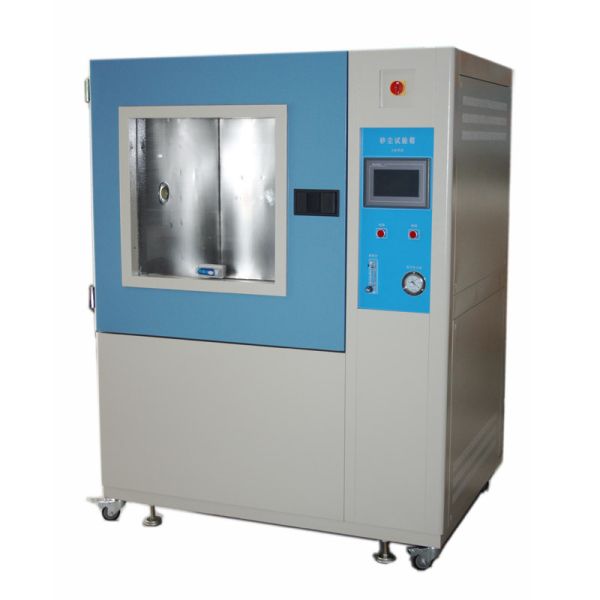

IPX78 Protection Testing Chamber Dustproof Lab Environmental Test Chamber Sand And Dust Test Chamber
IPX78 Protection Testing Chamber Dustproof Lab Environmental Test Chamber Sand And Dust Test Chamber
IPX78 Protection Testing Chamber Dustproof Lab Environmental Test Chamber Sand And Dust Test Chamber
IPX78 Protection Testing Chamber Dustproof Lab Environmental Test Chamber Sand And Dust Test Chamber
Specifications
Brand Name :
GAOXIN
Model Number :
GX-3080
Place of Origin :
Dongguan, China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
T/T
Supply Ability :
10 sets / month
Delivery Time :
15 work days
Packaging Details :
Standard Export Wooden Case
Color :
White
Usage :
Universal Testing Machine
Material :
SUS304 Stainless Steel
Standard :
IEC60529
Warranty :
12 months
Power supply :
380V 50HZ
Description

IPX78 Protection Testing Chamber Dustproof Lab Environmental Test Chamber Sand And Dust Test Chamber

Features

  • Test area size is 1000*1000*1000mm D*W*H
  • Interior material is SUS304 stainless steel
  • Exterior material is Steel Plate with protective coating, color is blue
  • Dust is blown in test area by air motor
  • Dust re-cycle blowing by circulating pump
  • A heater fixed into test chamber to keep dust dry
  • Wiper is fitted to view window, window size is 35*45cm
  • Silicon seal for door
  • Programmable color display touch screen controller which located on right side of chamber
  • A stainless steel shelf is fixed above the sieve and funnel
  • Chamber inside equipped with power interface for test specimen
  • Bottom of chamber is fitted with circulating pump, vacuum pump, motor
  • Temperature sensor PT-100
  • Safety protection
  • Guarantee a long service lifetime
  • Easy to operate on control panel
  • 380V, 50Hz
  • Standard: IEC60529


Technical Parameters
​Note: Chamber size can be customized according to customer request. We have experience of producing and installing walk in dust chamber.

Internal dimensions (mm)

800*1000*1000

Overall dimensions (mm)

1050*1420*1820

Performance index

Normal wire diameter

50um

Normal width of a gap between wires

75um

The Talcum powder amount

2kg ~ 4kg/m3

Fight time

0 ~ 99H59M

Fan cycle time

0 ~ 99H59M

Specimen power outlet

Dust-proof socket AC220V 16A

Control system

Controller

5.7" programmable color display touch screen controller

PC Link with software, R-232 interface

Vacuum system

Equipped with vacuum pump, a pressure gauge, air filter, pressure regulating triple, connecting tube

Circulating fan

Enclosed alloy low-noise motor, multi-vane centrifugal fan

Heating system

Independent Nichrome electronic heating system

Power supply

380V 50HZ;

Safety Devices

Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller

Note: The test chamber can meet the standards IEC60529 GB2423,GB4706,GB4208, and satisfy the experiment requirements of parts enclosure protection grade for household appliances for DIN,low-voltage apparatus,automobiles,motorcycle.





























IPX78 Protection Testing Chamber Dustproof Lab Environmental Test Chamber Sand And Dust Test Chamber
