Battery Impact Tester Battery Testing Equipment with SJ/T11170 , UL 1642 ,UL 2054
Battery Impact Tester Battery Testing Equipment with SJ/T11170 , UL 1642 ,UL 2054
Battery Impact Tester Battery Testing Equipment with SJ/T11170 , UL 1642 ,UL 2054
Battery Impact Tester Battery Testing Equipment with SJ/T11170 , UL 1642 ,UL 2054
Specifications
Brand Name :
Gaoxin
Model Number :
GX-5066
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, FOB/CIF Shenzhen
Supply Ability :
20 sets per month
Delivery Time :
15-20 working days
Packaging Details :
International Standard Wooden Package
Function :
Impact Test
Weight :
About 105Kg
Interior box :
SUS#304 Stainless steel
Outward box :
Galvanized cool board with paint
Door :
Single door with double storey and observing window
Power :
AC220V，ф5A
Description

Battery Impact Tester Battery Testing Equipment with SJ/T11170 , UL 1642 ,UL 2054

1.Product Name:Battery impact testing machine

2. Product Model:GX-5066

3. Description:The test sample is to be placed on a flat surface.A 15.8mm (5/8 inch) diameter bar is to be placed

across the center of the sample. A 9.1 weight is to be dropped from aheight of 610mm onto the sample.

4.Test standard:UN38.3,SJ/T11169—1998,SJ/T11170—1998,UL1642:1995,UL2054:1997,QC/T 743-2006 QC/T 742-2006 ,QC/T 744-2006 ,GB/T18287-2000,GB 8897.4-2002 ,IEC60086-4:2000

5.Technical Parameter:

Weight

9.1kg

Impact height

610 mm

Impact method

Lift the weight to the height of 610mm and release the weight freely

Bar

15.8mm(5/8 inch) diameter , bar

Interior box

SUS#304 Stainless steel

Outward box

Galvanized cool board with paint

Sealing strip

Silicone foam

Air outlet

Dia. 150mm, in the back box

Door

Single door with double storey and observing window

Impact flat

Stainless steel board

Power

1∮,AC220V,ф5A

Weight

About 105Kg

Test environment

Voltage

220V±10% 50HZ

Temperature range

0 ~ 30℃, The most suitable temperature 25±5℃

Standard configuration

Test mainframe,standard weights,safety bolts, Limited rod, Limited switch

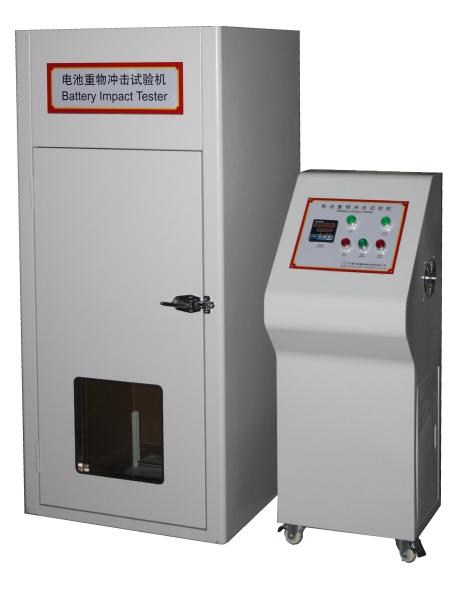

6.Picture

Battery Impact Tester Battery Testing Equipment with SJ/T11170 , UL 1642 ,UL 2054

7.FAQ

Q1: What is the warranty for the equipment?

A1: Warranty for the equipment is 1 year,and free lifelong technical support is available through video email.

Q2: What is the payment way?

A2: T/T ; 50% deposit and 50% before shipment.

Q3: How long the delivery time is?

A3: Generally,the delivery time is about 15-25 days, except for the special customization.

Q4: How to prove your product is qualified?

A4:The production of all equipments are strictly supervised to ensure quality. We have got various relevant certification including ISO,ASTME,DIN,JIS,UL ,BS and so on. What is more, we will carefully make installation and debugging before shipment.

Q5:Is the package strong enough for long-distance shipment?

A5:Sure.We use strong and standard wood case for the package and we will buy insurance for each shipment.

Battery Impact Tester Battery Testing Equipment with SJ/T11170 , UL 1642 ,UL 2054Battery Impact Tester Battery Testing Equipment with SJ/T11170 , UL 1642 ,UL 2054Battery Impact Tester Battery Testing Equipment with SJ/T11170 , UL 1642 ,UL 2054
