LCD Display Micro Computer Control Leather Fabric Universal Materials Tearing Tensile Strength Testing Equipment
LCD Display Micro Computer Control Leather Fabric Universal Materials Tearing Tensile Strength Testing Equipment
LCD Display Micro Computer Control Leather Fabric Universal Materials Tearing Tensile Strength Testing Equipment
LCD Display Micro Computer Control Leather Fabric Universal Materials Tearing Tensile Strength Testing Equipment
Specifications
Brand Name :
Gaoxin
Model Number :
GX-8005
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
30 sets per monh
Delivery Time :
10-15 working days
Packaging Details :
International strong wooden package
Capacity :
5, 10, 20, 50kg
Unit exchange :
kgf ,lbf ,N, KN, Kpa, Mpa
Load resolution :
1/ 10000
Maximum stroke :
350mm or customized
Display :
LCD display
Testing speed :
25-500 mm/min
Application :
Plastic Film Materials
Description

LCD Display Micro Computer Control Leather Fabric Universal Materials Tearing Tensile Strength Testing Equipment

1. Fabric Tensile Testing Machine Introduction

Tearing testing machine is a fundamental materials science tester for plastic film materials .The sample is subjected to a controlled force until failure. The results of the tester are commonly used to select a material for an application, for quality control, and to predict how a material will react under other types of forces. The tearing testing machine can not only do the tearing test, but also compression test, bending test, tearing test and so on with various fixtures.

2. Fabric Tensile Testing Machine Technical Parameter

Load range

5, 10, 20, 50kg

Unit exchange

kgf,lbf,N

Accuracy of load

± 1%

Load resolution

1/10,000

Max. tensile space

350 mm

Displacement resolution

0.01mm

Test speed range

25～500mm/min

Speed Control

Knob

Stop mode

Specimen damage or set lower and upper data limit

Items for printing

Data; test times, largest force value, average value

Weight

80kg

Power

220V/50HZ or specified

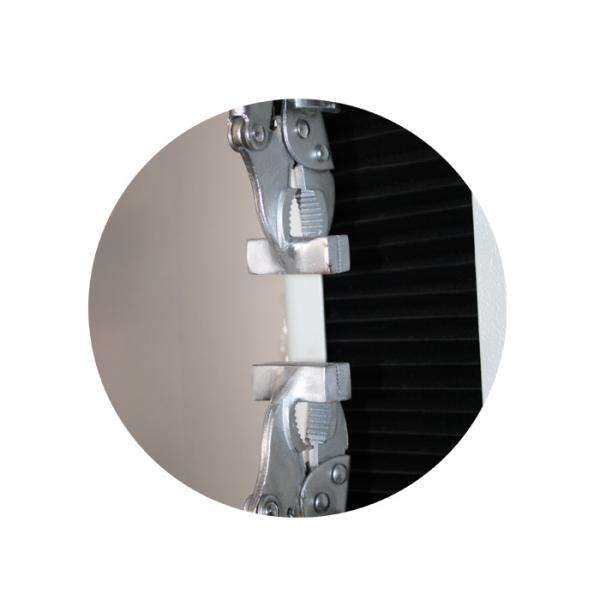

3. Fabric Tensile Testing Machine Picture

LCD Display Micro Computer Control Leather Fabric Universal Materials Tearing Tensile Strength Testing Equipment

4. Company Information

LCD Display Micro Computer Control Leather Fabric Universal Materials Tearing Tensile Strength Testing EquipmentLCD Display Micro Computer Control Leather Fabric Universal Materials Tearing Tensile Strength Testing Equipment
