ISO TAPPI Standard Strength Machine Electronic Test Equipment Economical Electronic Rupture
ISO TAPPI Standard Strength Machine Electronic Test Equipment Economical Electronic Rupture
ISO TAPPI Standard Strength Machine Electronic Test Equipment Economical Electronic Rupture
ISO TAPPI Standard Strength Machine Electronic Test Equipment Economical Electronic Rupture
Specifications
Brand Name :
Gaoxin
Model Number :
GX-6020-P
Certification :
ISO 9001:2008
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
15-20 working days
Packaging Details :
International strong wooden package
Function :
Rupture strength test
Display :
Digital display
Sensor method :
Pressure transducer
Indicator method :
Digital display
Capacity :
0~100KG/cm²(accuracy to 0.1kg/ cm²)
Motor :
1/4HP, shockproof motor
Oil pressure speed :
(170±10)ml/min
Description

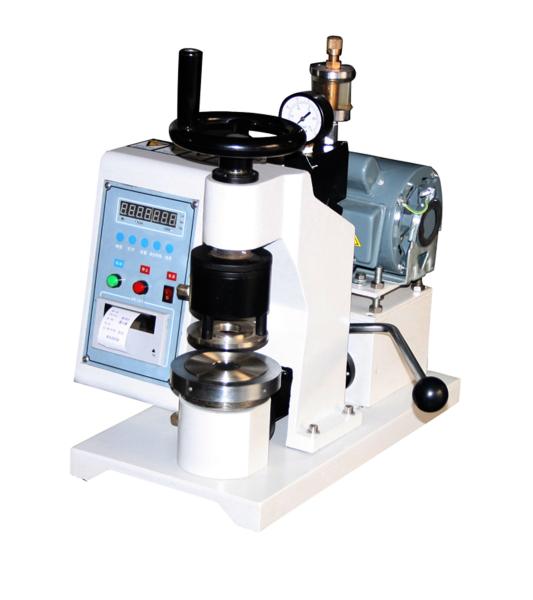

ISO and TAPPI Standard Electronic Rupture Strength Machine

1. Product Name:Electronic rupture strength testing machine

2. Product Model:GX-6020-P

3. Description:The tester is applicable for the carton box rupture strength test for various industries.

4. Test standard: ISO-2759,GB/T6545, JIS-P8112,L1018,ASTM-D2210,TAPPI-T403

5. Technical Parameter:

Item

Specification

Sensor method

Pressure transducer

Indicator method

Digital display

Capacity

(Alternative)

High

0~100KG/cm²(accuracy to 0.1kg/ cm²)

Lower

0~16KG/cm²(accuracy to 0.02kg/ cm²)

Oil pressure speed

(170±10)ml/min

Clamp ring diameter

Upper ring

High pressure Φ31.5mm; Lower pressureΦ30.48mm

Lower ring

High pressure Φ31.5mm; Lower pressure Φ31.75mm

Oil pressure gauge

0~25kg/ cm²

Motor

1/4HP, shockproof motor

Volume

62×51×57cm

Weight

About 67kg

Power

Single phase AC 220V 2.6A 50HZ

Power consumption

About 200W

Print item

Max value and date; can restore 12 groups

Accessory

Rubber membrane 2 pieces; Aluminum foils 5 pieces; Glycerinum 1 bottle; Special wrench 1 piece

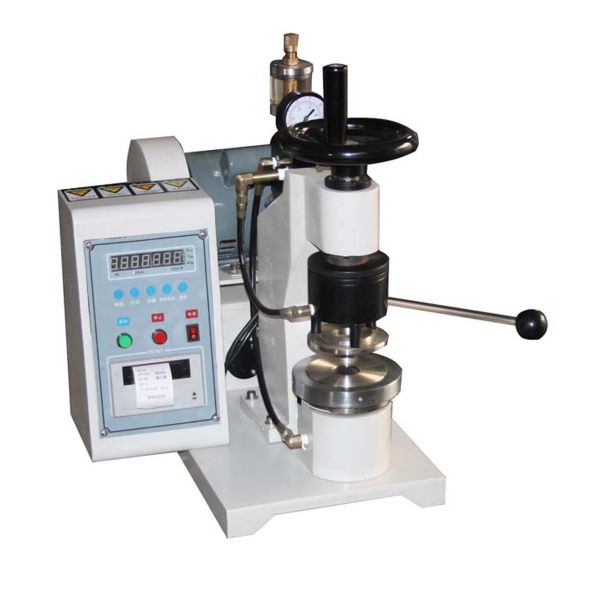

6. Product Picture

ISO TAPPI Standard Strength Machine Electronic Test Equipment Economical Electronic Rupture

7. Company information

Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service

ISO TAPPI Standard Strength Machine Electronic Test Equipment Economical Electronic Rupture


ISO TAPPI Standard Strength Machine Electronic Test Equipment Economical Electronic Rupture
