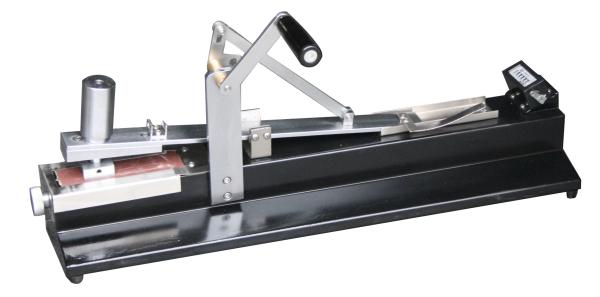

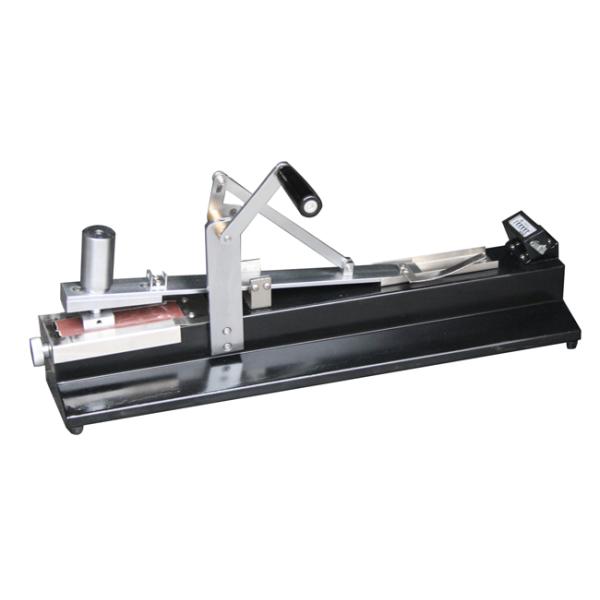

Stainless Steel Footwear Testing Machine , Heel Lift Abrasion Resistance Tester
Stainless Steel Footwear Testing Machine , Heel Lift Abrasion Resistance Tester
Specifications
Brand Name :
Gaoxin
Model Number :
GX-5041
Certification :
ISO 2008
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
FOB Shenzhen, L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Non-fumigation wooden box
Material :
304# stainless steel
Color :
silver
Type :
vertical type
Dimension(W*D*H) :
68×20×26cm
Weight :
8kg
Load :
1400,1700,2200g
Description

Stainless Steel Footwear Testing Machine , Heel Lift Abrasion Resistance Tester

1.Quick Details

Alternative name

Heel Lift Abrasion Resistance Tester

Function

Test abrasion resistance of heel lift

Feature

Portable and manually

Weight

8kg

Volume

68×20×26 mm

Corresponding test standard

ASTM F 609, HG/T 3780-2005

2.Description

Heel lift abrasion resistance tester is specialized for testing heel lift of woman's high heel shoes.

Place heel lift on the abrasive paper, use certain load to friction heel lift until getting the setted times,

check its abrasive degree.

3.Features

a. The tester is usually used to test abrasive resistance of heel lift of woman's high heel shoes.

b. Small volume and portable

c. Economical.

4.Specifications

Model

GX-5041

1400,1700,2200g

1400,1700,2200g

Friction hammer

38×36mm

Counter

LED display, 0~9999

Dimensions

68×20×26cm ( L x W x H )

Weight

8kg

Standards

ASTM F 609

HG/T 3780-2005

Stainless Steel Footwear Testing Machine , Heel Lift Abrasion Resistance Tester
