Safety Footwear Testing Equipment With Electromagnet Control , EN Standard
Safety Footwear Testing Equipment With Electromagnet Control , EN Standard
Safety Footwear Testing Equipment With Electromagnet Control , EN Standard
Safety Footwear Testing Equipment With Electromagnet Control , EN Standard
Specifications
Brand Name :
Gaoxin
Model Number :
GX-5032
Certification :
EN-344、345;ANSI-Z4；ISO20344; GB/T20991; GB/T21148; GB/T21147
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
10-15 working days
Packaging Details :
International standard wooden package
Hammer Weight :
（EN，GB）20±0.2kg，（BS，ANSI，CSA）22.7kg
Fall Height :
(EN)0-1100mm
Impact Capacity :
(EN)200J，（BS，ANSI）100±2J
Impact Blade :
（EN）3±0.1mm（R）（ANSI）25.4mm
Horsepower :
AC1/8HP
Base load-bearing :
At least 600 Kg., choose the floor as the bearing surface
Metal Board :
400*400*40mm
Description

Safety Footwear Testing Equipment With Electromagnet Control , EN Standard

1.Product Name:Safety footwear impact testing machine

2.Product Model:GX-5032

3.Product Description:The tester is mainly used for the impact resistance test of the safety shoes toe head. Use the electromagnet to control the drop of hammer and drop from the set height. Check the damage or deformation of steel toe head of the shoes to evaluate its resistance to impact.

4.Test Standard:EN-344,345;ANSI-Z4；ISO20344; GB/T20991; GB/T21148; GB/T21147

5.Technical Parameter:

Hammer Weight

(EN,GB)20±0.2kg,(BS,ANSI,CSA)22.7kg

Fall Height

(EN)0-1100mm

Impact Capacity

(EN)200J,(BS,ANSI)100±2J

Impact Blade

(EN)3±0.1mm(R)(ANSI)25.4mm

Horsepower

AC1/8HP

Base load-bearing

At least 600 Kg., choose the floor as the bearing surface

Metal Board

400*400*40mm

Volume

585×695×1815 mm

Weight

227kg

Power

3∮,AC 220V,5A

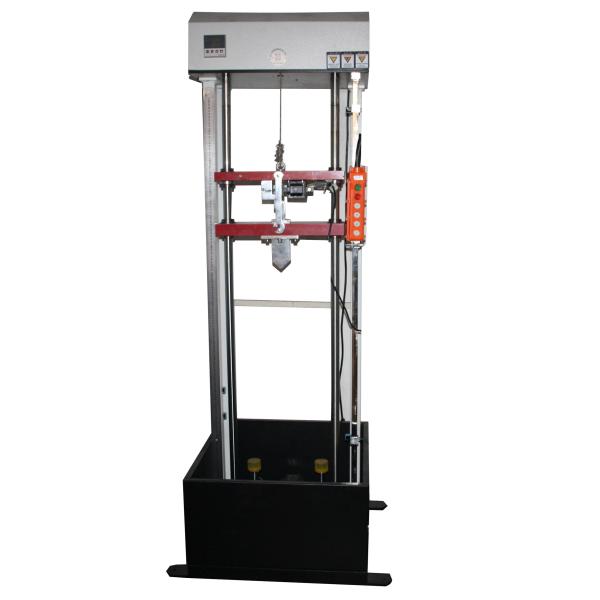

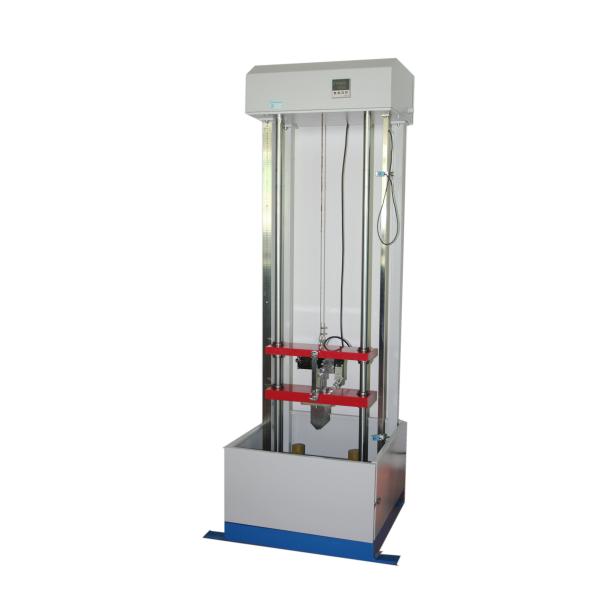

6. Product Structure

Safety Footwear Testing Equipment With Electromagnet Control , EN StandardSafety Footwear Testing Equipment With Electromagnet Control , EN Standard

7. Company information

Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service

Safety Footwear Testing Equipment With Electromagnet Control , EN Standard
