Specifications
Brand Name :
Gaoxin
Model Number :
GX-6052
Certification :
ISO 2008
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
FOB Shenzhen, L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Non-fumigation wooden box
material :
304# stainless steel
color :
silver
type :
vertical type
structure :
single column
fixture :
Pneumatic Structure
usage :
free fall test
applicable object :
small electronics
falling method :
multi angle (edge, corner, surface)
Power :
50hz / customized,220V
Usage :
Drop Tester,Impact Testing Machine
Description

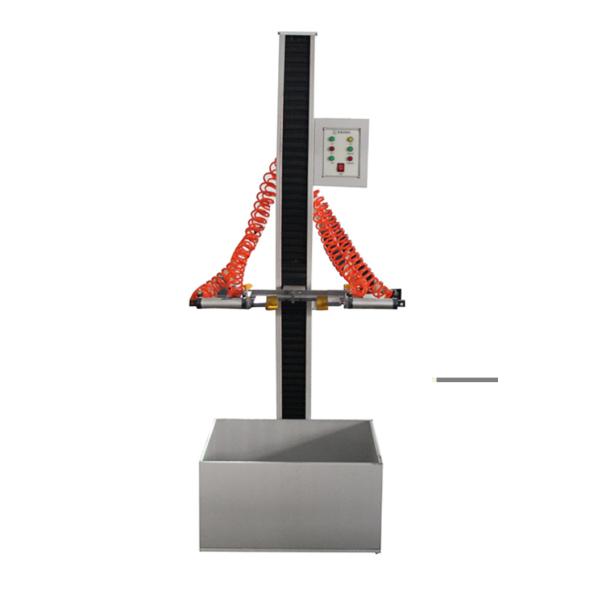

Professional Mobile Phone Testing Equipment , Small Electronics Free fall testing equipment

1.Quick Details

Alternative name

Free fall testing equipment

Function

Test whether the specimen is damaged drop from certain height, suitable for small consumer electronics.

Type

Single wing electromagnetic type

Weight

80kg

Volume

700mm*900mm*1650mm

Corresponding test standard

UL2054-2008, SJ/T11170, IEC62133, SJ/T11169

2.Description

Free fall testing equipment is for lithium ion battery safety testing equipment in battery production line

and lab research

a. This machine is suitable for mobile phone, free radio, electronic dictionary, intercom telephone,

CD/MD/MP3 and other small consumer electronic products and components of the drop test, to

assess its safety performance and durability.

b. The key element of reliable performance, variety of drop floor for use, can meet the needs of

different test standards.

c. The free fall tester is applied pneumatic structure. Fix the specimen on the special fixture

(displacement is adjustable), press dropping key, then the cylinder release and specimen

drop free.

d. The falling height can be adjusted from up and down, and attached altitude scale.

e. The key parts of the tester is imported from Japan, reliable on quality.

3.Features

a. The free drop tester model GX-6052 is used for small consumer electronics such as mobile, MP3, electronic dictionary

b. The fixture method is pneumatic adsorption.

c. The specimen is under 2kg.

d. The base panel can be cement board, acrylic board, steel board.

4.Specifications

Model

GX-6052

Max. height of specimen

300-1500mm (or customer specified)

Max. Weight of specimen

2kg±100g

Fixture method

Pneumatic absorption

Base panel

Cement board, Acrylic board, stainless steel board

Method of dropping

Multi-angle (edge, angle, surface)

Dimension of base panel

500× 600× 200mm

Air pressure

1MPa

Net weight

80kg

Power

1∮ ,220V,5A
