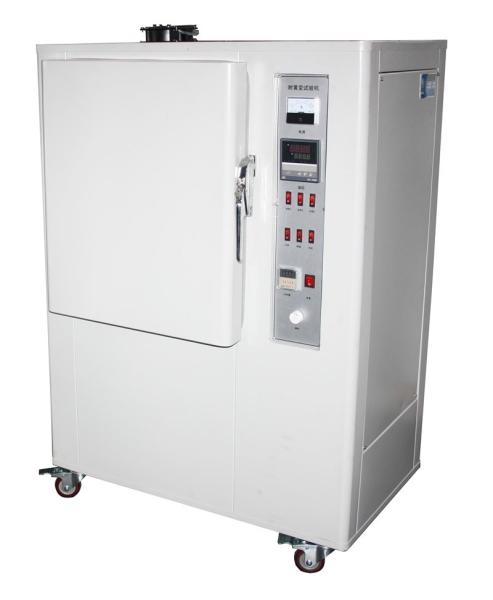

Anti Yellowing Aging Test Chamber ASTM-D1148 HG/T3689 For Footwear
Anti Yellowing Aging Test Chamber ASTM-D1148 HG/T3689 For Footwear
Specifications
Brand Name :
Gaoxin
Model Number :
GX-5031-A
Certification :
ISO 2015
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
20 working days
Packaging Details :
international standard strong package
Function :
anti-yellowing test
Color :
White silvery
Materail :
Stainless steel
Type :
Lamp bulb type
Light source :
300 w OSRAM bulbs
Heating method :
hot air circulation
Power supply :
AC220V, 5 A
Weight :
135kg
Description

Testing Machine Of The Anti - Yellowing Aging Test Chamber Footwear Testing Equipments

Test standard

ASTM-D1148, HG/T3689

Test principles

The lamp bulb type uses the sun heating device to test the sample.

Application scope

White or light color material, substrate, leather, PU, fabric for shoes materials.

Specifications

(1) The lamp bulb type test chamber

Light source: 300 w OSRAM bulbs

Heating method: hot air circulation

Wave length: 280-280 nm

Insulation: glass fiber

Sample plate: 300 mm diameter, rotating 3 + 1 RPM

Light density: Adjustable optical

Sample size: (62 + 2) mm x (12 + 2) mm

Timer: LED, 0-999 hr

Distance between the light bulb and the sample: (250 + 2) mm

Horsepower: 1/4 HP

Temperature: room temperature to 200 ° C

Inside box: 500 x500x600 mm

Test temperature:(50 + 2) ° C

Size: 1000 x650x1170 mm

Power supply: AC220V, 5 A

Weight: 135 kg

(2) The OSRAM Bulb Technical Parameters

Manufacturer: OSRAM

Name: UV ultraviolet (UV) light bulbs

Origin: Germany

Lamp life: 1000 hours

Cure time: 15 ~ 30 seconds

Lamp holder types: E27 screw

Brand: OSRAM

Wave length: 365 ~ 400 nm

Rated voltage: 220 v

Rated power: 300 w

Size: 127 * 185 * 127 mm

Standard Configuration

  • The test machine
  • Imported 300W bulb
  • Two shelves
  • Rotating shelf
  • Operating instruction;
  • Product warranty card
  • Certificate
  • A roll of shading paper
  • B 250 change color card (pay additional)
