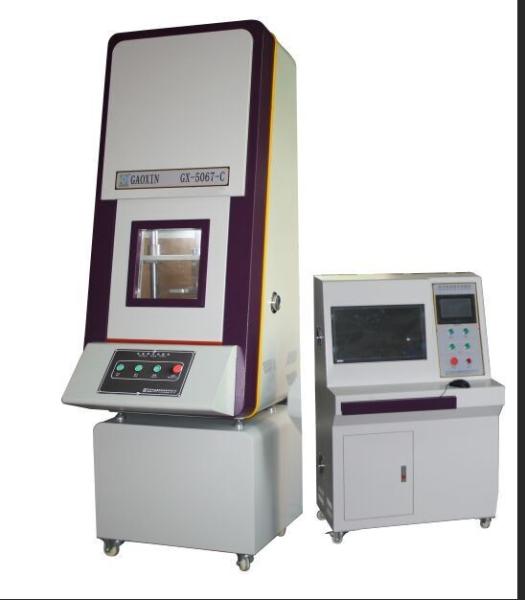

High precision Servo motor Drive Computer Control Battery Crush Test Equipment Comply To UN38.3 IEC 62133 IEC1642

Main technical parameter:

Drive: Servo motor

Crush plate: dia. 20cm circular disc

Pressure range: 0~20KN

Crush speed: 0.01~20mm/s adjustable

Force display accuracy: 0.01N

Sensor resolution : 1/100,000

Compress space: 300*300*300mm(W*H*D) it means max. testable battery dimension.

Crush stroke: 300mm

Set up test condition and dispaly test data and Control on the company test software.

The test software can monitoring the Crush force, dispalcement, battery voltage, battery temperature.

Safety protection :

1. Over force protection: the sensor has built in force limit, in order to avoid over force damage sensor and drive motor.

2. Out of phase and anti phase protection

3. Stroke limit protection

4. wire fuse over current protection

5. Overload protection

Test machine feature:

1. its two layer structure, upper and lower, upper is test chamber, lower is for load bearing and storage.

2. Test chamber material:

Internal: 10mm thickness 45 # steel sheet with chromeplate treatment and pasted with Teflon, its for anti-corrosion, anti flaming, and easy to clean up after test.

External: 1.5mm thick A3 cold rolled steel sheet with baking finishing

3. Inspection window: 200X200mm three layer vacuum explosion proof glass

4. Built in Anti explosion lighting

5. Exhaust port: Installed with exhaust fan diameter 120mm, with exhaust duct, you can connect to you Lab exhaust system.

6. Test chamber door: electric lifting automaticlly.

7. Cable port: diameter 50mm

8. Safety door: there is a pressure relief port loated the back of test chamber.

9. Castor: four movable castor equiped at the bottom of equipment.

10. Optional: video monitoring, fire extinguishing system, etc......

Machine installation environment

For more detail information please contact with us.
