UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery
UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery
UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery
UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery
UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery
UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery
UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery
UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery
Specifications
Brand Name :
GAOXIN
Model Number :
GX-6052-C
Certification :
ISO 9001
Place of Origin :
Dongguan, China
MOQ :
1set
Price :
negotiation
Payment Terms :
FOB Shenzhen,T/T
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
Non-fumigation wooden box
Control mode :
PLC control mode
Height setting and display :
PLC
Clamping method :
Pneumatic adsorption
Sample weight :
3kg±100g
Drop height :
300~1500mm(adjustable)
Drop floor :
Concrete, wood and steel(Optional)
Description

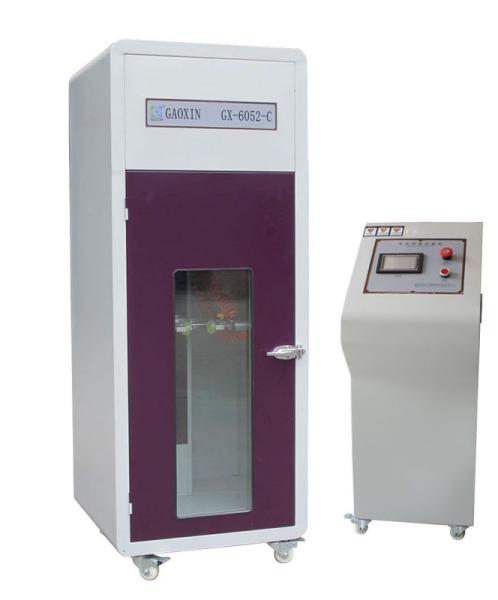

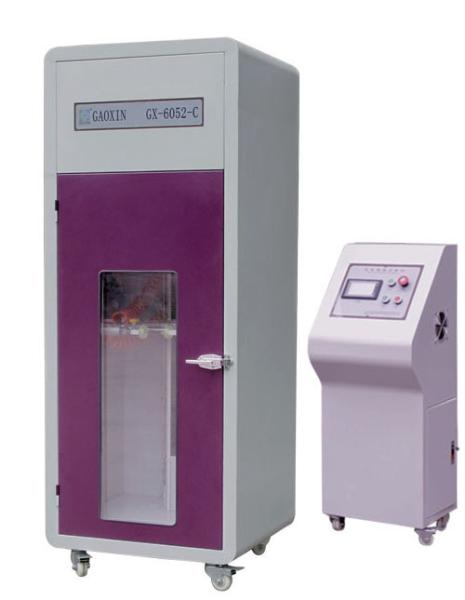

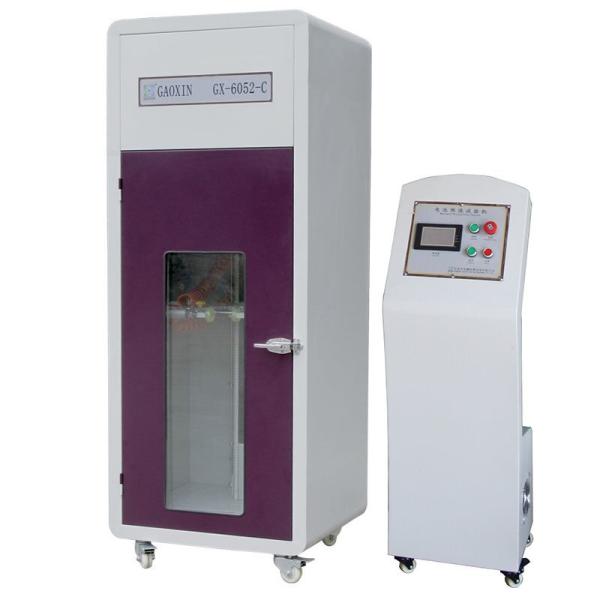

UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery

1. Product Name:Battery free drop tester

2. Product Model:GX-6052-C

3. Test standard:UN38.3,UL1642,UL2054,QC/T 743-2006, QC/T 744-2006,GB 8897.4-2002,IEC60086-4 ,GB31241,SN/T1414, SN/T1413 , YD1628, GJB2374, QB/T2052,IEC62133-2012, SAE-J2464,GB31241.

4. Scope:

The tester is applicable for the free drop test of battery, mobile phone, Intercom, electronic dictionaries, building intercom, and CD/MD/MP3 and other small consumer electronic products and components

5. Feature:

Each of the samples is to be dropped from the height of 1 m (3.28ft.)so it strikes a concrete surface in the position that is most likely to produce the adverse results. Each sample is to be dropped three times. The sample should not explode or catch fire after the observation period.

Pneumatic structure is used to release the sample and the drop height can be adjusted to certain height shown on the altitude scale.

6. Technical Parameter:

Sample weight 3kg±100g
Drop height 300~1500mm(adjustable)
Height adjust By the altitude scale
Clap method Pneumatic adsorption
Drop floor Concrete, wood and steel(Optional)
Drop method Multi-angle(Ling, the Angle, the surface)
Base size 500×600×10mm
Air pressure 1MPa
Volume 500×900×1650mm
Weight 80kg
Power 1∮ ,220V,3A

UN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For BatteryUN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For BatteryUN38.3 IEC62133 Drop Height Adjustable Free Fall Drop Tester For Battery

1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
