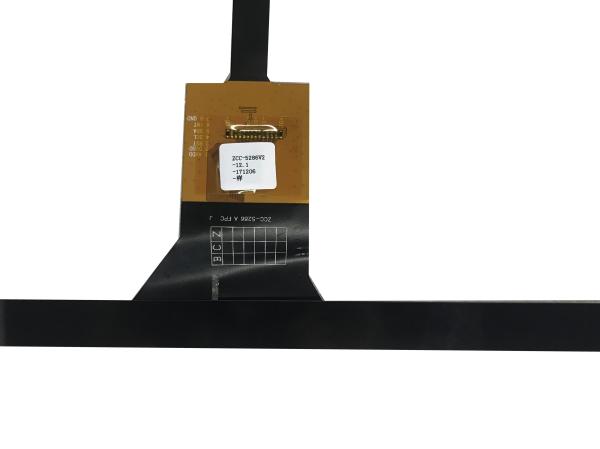

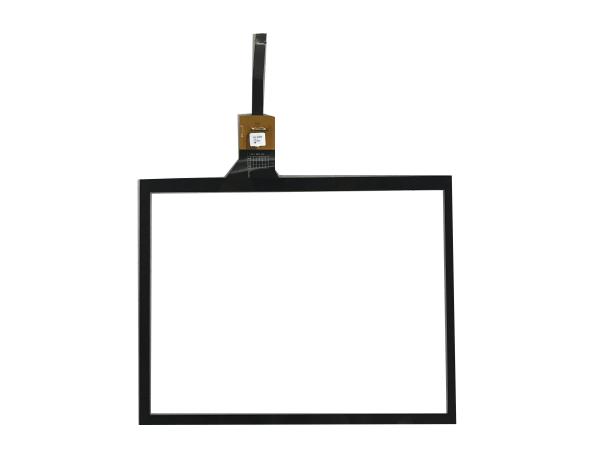

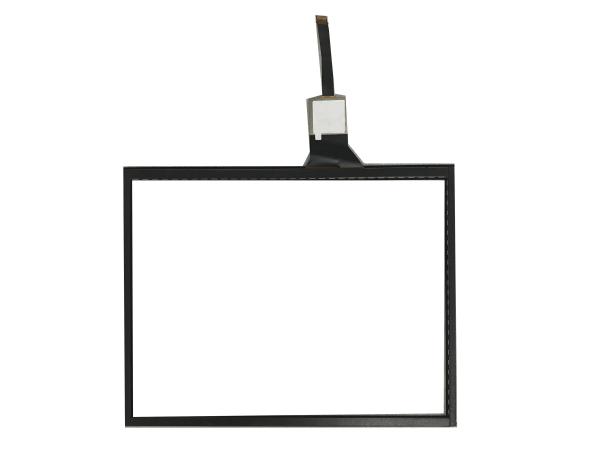

Narrow bezel Kiosk Touch Panel 12.1 inch Self Service ATM With Anti - glare
Narrow bezel Kiosk Touch Panel 12.1 inch Self Service ATM With Anti - glare
Narrow bezel Kiosk Touch Panel 12.1 inch Self Service ATM With Anti - glare
Narrow bezel Kiosk Touch Panel 12.1 inch Self Service ATM With Anti - glare
Narrow bezel Kiosk Touch Panel 12.1 inch Self Service ATM With Anti - glare
Narrow bezel Kiosk Touch Panel 12.1 inch Self Service ATM With Anti - glare
Specifications
Brand Name :
Touch-China
Model Number :
ZCC-5286
Certification :
CE, Rohs, FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
20 working days
Packaging Details :
Standard export package
Supply Ability :
20K pcs per month
size :
Mainly 2.1 inches,but support for customization 3.5 to 86 inches
Interface :
USB
Touch Points :
10 points
TP Structure :
Cover glass+UV glue+ITO sensor glass
Surface hardness :
More than 7H
Input method :
Finger or capacitive pen
Working voltage :
USB(5V)
TP type :
COF
Transmittance :
≥85%
IC controller :
EETI
Description

Narrow bezel Kiosk Touch Panel 12.1 inch Self-Service ATM With Anti-glare

Product Specification:

Size: 12.1 inch
Total Thickness: 3.03±0.3mm
Outline of Cover Lens: 260.5*204±0.3mm
Outline of ITO Sensor: 258.9*201.2±0.3mm
Viewing Area: 244.76*183.32±0.3mm
Active Area: 247*185.5±0.3mm
TP Structure: G+G
Controller: ILITEK, WEIDA, EETI, Silicon Works etc.(Customized)
Cover glass thickness: 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Customized)
Cover glass treatments: AG, AR, AF, AE (Customized)
CTP interface: USB
Operating system: Win7, Win8, Win10, WCE, Android, Linux, XP
Working temperature and humidity -20°C~70°C,20~85% RH, non-condensing
Storage environment and humidity : -30°C~80°C, 20~85% RH, non-condensing
Transparency ≥85%
Response time: <10ms
ESD Air discharge: 8KV
ESD Contact discharge: 4KV
Pen hitting life: ≥10,000,000/point
Pen sliding Durability: ≥500,000 times
Finger Touch life: ≥35,000,000 times
Certifications: CE, FCC, Rohs
Aspect ratio: 16:9
Report rate: 100HZ
Input method: Finger or capacitive pen
Warranty: 1 Year

Company advantages

  • 22 years' experience in designing and manufacturing touch solution(G+G/G+F+F)
  • Own 60000sqm factory_good lead time and stable quality
  • In-housing touch sensor development and optical bonding workshop
  • Wide range of sizes from 7'' to 86'' Perfect adaptation to customer’s requirements
  • Strong reseach team for both software and hardware support
  • Surface treatments like AG, AR, AF, Antibacterial, Anti-UV ceramic ink

Projected Capacitive Touch panel:

  • Projected capacitive touch panels are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
  • There is no air gap between layers like in a resistive touch panel.
  • The patterns on the two parallel ITO layers form a grid of capacitors.
  • The electric fields of these capacitors are projected through the top layer of glass.
  • When the user places a finger near the top surface of the touch panel, it couples with the electric fields.
  • This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.
  • An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.

Delivery Time:(In the case of global epidemics, we will try our best to ensure delivery speed.)

  • Samples in stock: 3-8 working days
  • Customized project: 10~15days for samples
  • Mass production: 10~18days

FAQ:

Q. Are you a factory or trading company?

A: We are a factory.

Q. Does your products have CE&Rohs certificates?

A: Yes.

Q. What’s the shipping method?

A: By sea / air / express, which methods to be used on the basis of customer’s requirements.

Q. What’s the payment methods?

A: T/T, 30% deposit before production, the balance before shipment.

Q. What size of touch screen can you manufacture?

A: 3.5” to 86 ”, the bigger size are researching and developing.

Q:Is your company's product price is too high?

A:Our company's product prices are strictly in accordance with market prices

Drawings:

Narrow bezel Kiosk Touch Panel 12.1 inch Self Service ATM With Anti - glare

Narrow bezel Kiosk Touch Panel 12.1 inch Self Service ATM With Anti - glare

Application:

-- Kiosk,Karaoke -- All in one --Digital Signage -- Tablet pc

-- Advertising player -- Education Whiteboard -- Medical device

-- Industrial PC panel -- Multi-touch table -- POS

-- Restaurant menu -- ATM
