12.5 Inch PCAP Projected Capacitive Touch Panel Finger Or Capacitive Pen Input Method
12.5 Inch PCAP Projected Capacitive Touch Panel Finger Or Capacitive Pen Input Method
Specifications
Brand Name :
Touch-China
Model Number :
ZCC-4468
Certification :
CE, Rohs, FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
20K pcs / month
Packaging Details :
Standard export package
Supply Ability :
20K per month
size :
12.5 inch
Interface :
USB
Touch Points :
10 points
TP Structure :
Cover glass+UV glue+ITO sensor glass
Surface hardness :
More than 7H
Input method :
Finger or capacitive pen
Working voltage :
USB(5V)
TP type :
COF
Transmittance :
≥85%
IC controller :
EETI
Description

12.5 Inch PCAP Projected Capacitive Touch Panel Finger Or Capacitive Pen Input Method

Product Specification:

Size: 12.5inch
Total Thickness: 1.85±0.2mm
Outline of Cover Lens: 301.48*182.52±0.2mm
Outline of ITO Sensor: 297.48*178.52±0.3mm
Viewing Area: 277.48*156.52±0.3mm
Active Area: 278.48*157.52±0.3mm
TP Structure: G+G
Controller: ILITEK, WEIDA, EETI, Silicon Works etc.(Customized)
Cover glass thickness: 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Customized)
Cover glass treatments: AG, AR, AF, AE (Customized)
CTP interface: USB
Operating system: Win7, Win8, Win10, WCE, Android, Linux, XP
Working temperature and humidity -20°C~70°C,20~85% RH, non-condensing
Storage environment and humidity : -30°C~80°C, 20~85% RH, non-condensing
Transparency ≥85%
Response time: <10ms
ESD Air discharge: 8KV
ESD Contact discharge: 4KV
Pen hitting life: ≥10,000,000/point
Pen sliding Durability: ≥500,000 times
Finger Touch life: ≥35,000,000 times
Certifications: CE, FCC, Rohs
Aspect ratio: 16:9
Report rate: 100HZ
Input method: Finger or capacitive pen
Warranty: 1 Year



Projected Capacitive Touch panel:

  • Projected capacitive touch panels are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
  • There is no air gap between layers like in a resistive touch panel.
  • The patterns on the two parallel ITO layers form a grid of capacitors.
  • The electric fields of these capacitors are projected through the top layer of glass.
  • When the user places a finger near the top surface of the touch panel, it couples with the electric fields.
  • This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.
  • An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.

Delivery Time:(In the case of global epidemics, we will try our best to ensure delivery speed)

  • Samples in stock: 5~10working days
  • Customized project: 15~20days for samples
  • Mass production: 18~25days



FAQ:

Q. Are you a factory or trading company?
A: We are a factory.
Q. Does your products have CE&Rohs certificates?
A: Yes.
Q. What’s the shipping method?
A: By sea / air / express, which methods to be used on the basis of customer’s requirements.
Q. What’s the payment methods?
A: T/T, 30% deposit before production, the balance before shipment.
Q. What size of touch screen can you manufacture?
A: 3.5” to 85”, the bigger size are researching and developing.

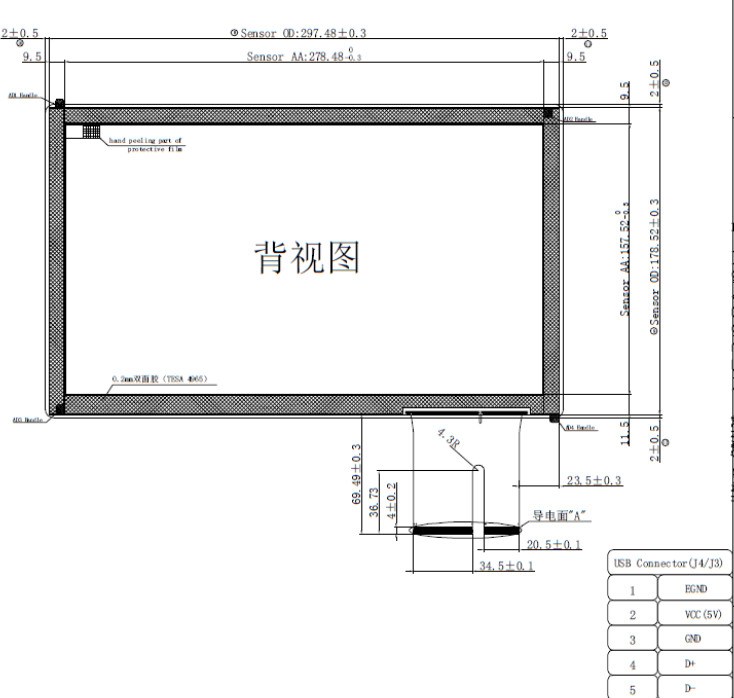

Drawings:

12.5 Inch PCAP Projected Capacitive Touch Panel Finger Or Capacitive Pen Input Method

12.5 Inch PCAP Projected Capacitive Touch Panel Finger Or Capacitive Pen Input Method

Application:

The target market is as follows, smart new retailing (vending machine), smart finance(ATM,POS), smart

industrial control, smart eudcation & conference, medical, automative factory installed products,

advertising inquiry machine, smart home system and so on.

Some of our great partners:
Cooperation with many large and internationally well-known enterprises
for example Hangsheng, ADAYO,
HIKVISION, Great wall information, BOE, iFLYTEK, CVTE, Advantech, KF, SMTC etc.

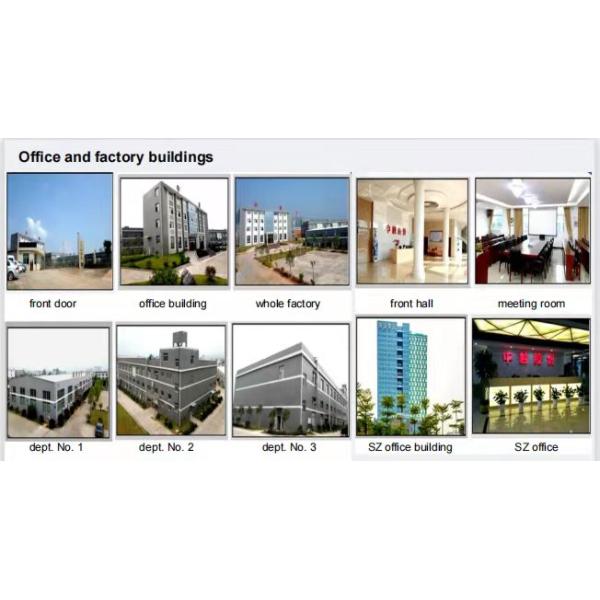

Factory map:
12.5 Inch PCAP Projected Capacitive Touch Panel Finger Or Capacitive Pen Input Method
