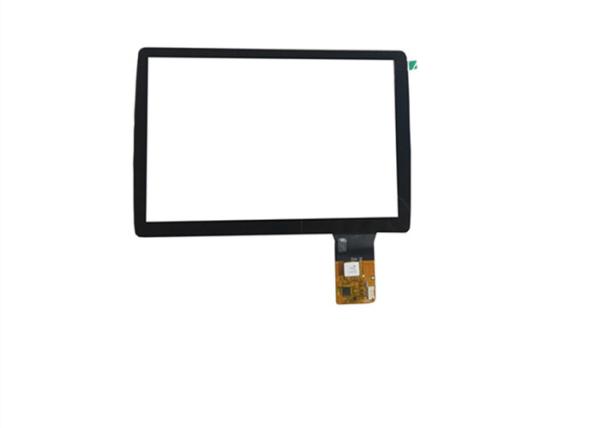

Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Control
Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Control
Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Control
Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Control
Specifications
Brand Name :
Touch China
Model Number :
ZCC-3972V1
Certification :
CE,ROHS,FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K pcs per month
Delivery Time :
10-15 days
Packaging Details :
Standard export package
TP type :
Projected capacitive touch panel
Touch points :
10points
Interface :
USB
TP Structure :
Cover Glass+UV Glue+ITO Sensor Glass
Surface Hardness :
≧7H
IC controller :
ILITEK
Transmittance: :
≥85%
Input Method: :
Finger Or Capacitive Pen
OS :
Win7, Win8, Win10, WCE, Android, Linux, XP
Warrently :
1 Year
Description

Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Monitor




4:3 & 16:10 & 16:9. Glove touch, waterproof, anti-glare, anti-finger, anti-reflective. IIC and USB interface.

Basic specification:

Size10.1 inch
Total thickness3.3±0.2mm
Outline of Cover Lens243.56*155.54+0.1mm
Outline of ITO Sensor227.11*147.7±0.2mm
Viewing Area217.06*135.4±0.2mm
Active Area218.8*137.4±0.3mm
InterfaceUSB
Input voltage5V
Response time<10ms
Report rate100 HZ
Input methodHand writing or capacitive pen
Transmittance﹥85%
IC Controller:WEIDA, EETI, Silicon Works (optional)
Cover glass thickness1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (optional)
Cover glass treatmentsAG, AR, AF, AE (optional)
Working temperature and humidity-20°C~70°C,20~85% RH, non-condensing
Storage environment and humidity -30°C~80°C, 20~85% RH, non-condensing
ESD Air discharge8KV
ESD Contact discharge4KV
Package list10.1"Touch panel + USB cable



Advantages

  • Physically tempered cover glass, support a ball of 500g falling on the center from 1.3m height.
  • Enhanced durability and reliability
  • Water proof, anti-explosion.
  • Professional facilities and excellent design
  • Optimized Production Capacity
  • Optimized Production Capacity

Glove Touch:
Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Control
Development process

  • Receive customer's technical files, including PCAP drawing, LCD specification.
  • Recommend standard products or customize products based on customer's requirements.
  • Offer engineering drawing for confirmation and fill in project kick-off form.
  • Make samples according to the confirmed drawing.
  • Debug the samples based on the information on kick-off form, keep the FW.
  • Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
  • Pilot production.
  • Mass production



Delivery time:

  • Samples in stock: 1~3 working days
  • Customized project: 10~15days for samples
  • Mass production: 15~18days




Technical Drawing:
Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Control
Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Control
Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Control


Some of our great partners:
Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Control
Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Control
Glove touch 10.1 Inch Projected Capacitive Touch Panel For industrial Control
