19.5 Inch ILITEK Multi Touch Capacitive Screen ,Tempered Glass PCAP Kit For Gaming Machine Flexible Anti-Explosion
19.5 Inch ILITEK Multi Touch Capacitive Screen ,Tempered Glass PCAP Kit For Gaming Machine Flexible Anti-Explosion
Specifications
Brand Name :
Touch China
Model Number :
ZCC-3105
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K per month
Delivery Time :
15 working days
Packaging Details :
Standard export package
Type :
Projected capacitve touch screen
Size :
19.5 inch
Touch points :
10
Aspect Ratio :
16:9
Structure :
G+G
Surface Hardness :
≧6H
IC solution :
ILITEK
Application :
PCAP Touch Panel
Description

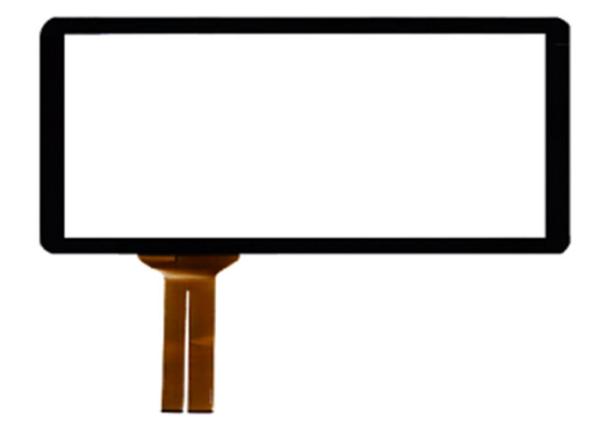

19.5 inch tempered glass PCAP Touch Panel kit support 10 points touch

Typical Application:

A.Self-service Terminal equipment

B. Vending machine

C. Indoor and Outdoor KIOSK

D. Gaming Machine

E. Multi Touch Table

F. POS

G. Interactive digital signage

H. Education E-white boards

etc.

Technical parameters:

1. TP structure: G+G

2. TP Type: COB

3. Working voltage: 5V

3. Light transmittance:≥85%

4. Surface hardness: more than 6H

5. Working environment: -10°C~+60°C, ≤85%RH;

6. Storage environment: -10°C~+65°C, ≤85%RH;

7. Tolerance of those parts without any notes: +/-0.3mm;

8. Response time: 10ms

9. Report rate: 100 HZ

8. Products comply with RoHS/CE standard.

Features:

1. Projected Capacitive touch screen
2. Customization
3. 3.5 inch to 65 inch(More large sizes products are developed now)
4. Multi touch point
5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
6. USB/IIC port

7. Low MOQ

Competitive advantages:

1. We have 23-year experience in designing and manufacturing touch panels.

2. We have strong research team for both software and hardware and provide before and after-sale service.

3. We cooperate with excellent customers and suppliers.

4. We have long-term cooperation with excellent IC suppliers all over the world.

5. We have good guarantee for product quality and lead time.

6. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.

Delivery time:

Sample: 10-15 working days

Mass production:

1.Small sizes(smaller than 12.1 inch): 18 working days.

2.Large sizes(larger than 12.1 inch):20-25 working days.

Drawing:

19.5 Inch ILITEK Multi Touch Capacitive Screen ,Tempered Glass PCAP Kit For Gaming Machine Flexible Anti-Explosion

19.5 Inch ILITEK Multi Touch Capacitive Screen ,Tempered Glass PCAP Kit For Gaming Machine Flexible Anti-Explosion

19.5 Inch ILITEK Multi Touch Capacitive Screen ,Tempered Glass PCAP Kit For Gaming Machine Flexible Anti-Explosion
