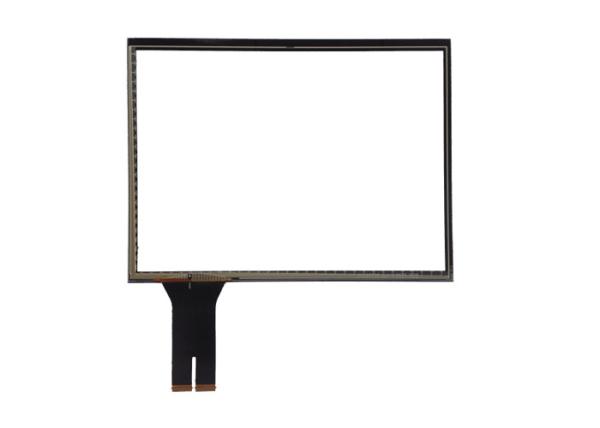

10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage
10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage
10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage
10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage
Specifications
Brand Name :
Touch China
Model Number :
ZCC-4606
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K per month
Delivery Time :
18-22 working days
Packaging Details :
Standard export package
Type :
Projected capacitve touch screen
Size :
10.4 inch
Touch points :
10
Aspect Ratio :
16:9
Structure :
G+G
Surface Hardness :
≧6H
IC solution :
ILITEK
Application :
POS,touch monitor
Description

10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage

Basic specification:

Size 10.4 inch
Total thickness 1.8±0.2mm
Outline of Cover Lens 226*179±0.1mm
Outline of ITO Sensor 225*177.15±0.2mm
Viewing Area 213.6*161±0.2mm
Active Area 214.63*162.02±0.3mm
Interface USB
Input voltage 5V
Response time 10ms
Report rate 100 HZ
Input method Hand writing or capacitive pen
Transmittance ﹥85%
Package list 10.4 inch Touch panel,controller board and USB cable

Features:

1. Projected Capacitive touch screen
2. Customization
3. 3.5 inch to 65 inch(More large sizes products are developed now)
4. Multi touch point
5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
6. USB/IIC port

7. Low MOQ

Applications:

Kiosk,Karaoke,All in one,Digital Signage,Tablet pc,Advertising player,
Education Whiteboard,Medical device,Industrial pc panel,Multi-touch table,

POS,Restaurant menu,ATM etc.

10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage

Competitive advantages:

1. 22 years' experience in designing and manufacturing touch solution(G+G/G+F+F)
2. Own 60000sqm factory_good lead time and stable quality
3. In-housing touch sensor development and optical bonding workshop
4. Wide range of sizes from 7'' to 86'' Perfect adaptation to customer’s requirements
5. Strong reseach team for both software and hardware support
6. Surface treatments like AG, AR, AF, Antibacterial, Anti-UV ceramic ink

Delivery time:

Sample: 12-18working days

Mass production:

1.Small sizes(smaller than 12.1 inch): 18-25 working days.

2.Large sizes(larger than 12.1 inch):20-28 working days.

Technical Drawings:

10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage

10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage

Pictures of factory products:

10.4 Inch PCAP Touch Panel Sensitive Tempered Glass For Digital Signage
