17.3 Inch Projected Capacitive Touch Panel USB Interface 10 Points ITO Glass
17.3 Inch Projected Capacitive Touch Panel USB Interface 10 Points ITO Glass
Specifications
Brand Name :
Touch-China
Model Number :
ZCC-6823
Certification :
CE, Rohs, FCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
20K pcs / month
Delivery Time :
10-20days
Packaging Details :
Standard export package
size :
17.3inch
Interface :
USB
Touch Points :
10points
TP Structure :
cover lens+hot melt glue+ITO Glass
Surface hardness :
More than 7H
Input method :
Finger or capacitive pen
Working voltage :
USB(5V)
TP type :
COF
Transmittance :
≥85%
IC controller :
ILITEK
Description

17.3 inch projected capacitive Touch

Product Specification:

Size: 17.3inch
Total Thickness: 2.4±0.3mm
Outline of Cover Lens:
240*407 ±0.3mm
Outline of ITO Sensor:
230.91* 397.58±0.3mm
Viewing Area:
216*383 ±0.3mm
Active Area:
218.41*385.4 ±0.3mm

TP Structure:

 G+G
Controller: ILITEK, WEIDA, EETI, Silicon Works etc.(Customized)
Cover glass thickness: 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Customized)
Cover glass treatments: AG, AR, AF, AE (Customized)
CTP interface: USB
Operating system: Win7, Win8, Win10, WCE, Android, Linux, XP
Working temperature and humidity
-10~+60℃, 20~85% RH, non-condensing
Storage environment and humidity :
-10~+65℃, 20~85% RH, non-condensing
Transparency ≥85%
Response time: <10ms
ESD Air discharge: 8KV
ESD Contact discharge: 4KV
Pen hitting life: ≥10,000,000/point
Pen sliding Durability: ≥500,000 times
Finger Touch life: ≥35,000,000 times
Certifications: CE, FCC, Rohs
Aspect ratio: 16:9
Report rate: 100HZ
Input method: Finger or capacitive pen
Warranty: 1 Year

Projected Capacitive Touch panel:

  • Projected capacitive touch panels are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
  • There is no air gap between layers like in a resistive touch panel.
  • The patterns on the two parallel ITO layers form a grid of capacitors.
  • The electric fields of these capacitors are projected through the top layer of glass.
  • When the user places a finger near the top surface of the touch panel, it couples with the electric fields.
  • This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.
  • An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.

Delivery Time:(In the case of global epidemics, we will try our best to ensure delivery speed)

  • Samples in stock: 5~15 working days
  • Customized project: 15~25days for samples
  • Mass production: 18~25days

FAQ:

Q. Are you a manufacturer or a trading company?
A: We are a manufacturer.

Q. What's payment terms can you accpet?

A: T/T in advance, or 30% as deposite,70% as balance before delivery.

Q. How do you control the quality ?
A: We control the product quality by IQC,three tests on production lines,and 100% aging testing before packaging.

Q. What's MOQ?
A: MOQ is 100 pcs. Of course,we could accept small trial orders for certain items.

Q. Can you give us a favorable discount ?
A: Of course, a favorable discount will be offered if the quantity is sizable.

Q:Does the product support customization?

A:Of course

Application:

-- Kiosk,Karaoke -- All in one --Digital Signage -- Tablet pc

-- Advertising player -- Education Whiteboard -- Medical device

-- Industrial PC panel -- Multi-touch table -- POS

-- Restaurant menu -- ATM

Some of our great partners:

Cooperation with many large and internationally well-known enterprises
for example Hangsheng, ADAYO,
HIKVISION, Great wall information, BOE, iFLYTEK, CVTE, Advantech, KF, SMTC etc.

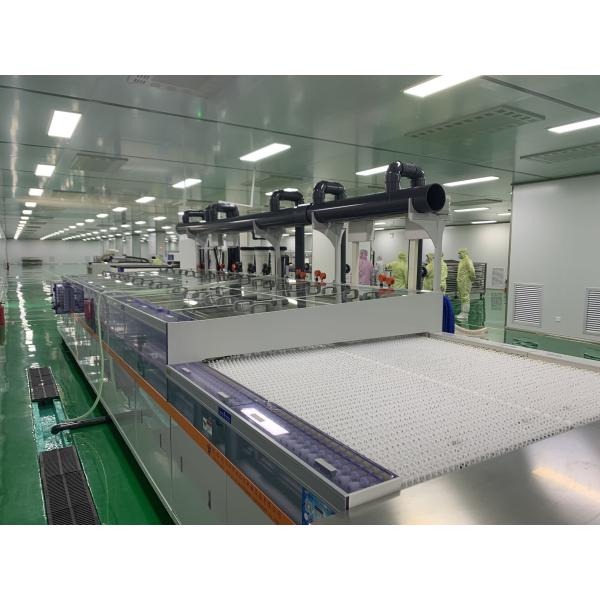

Product production environment map:
17.3 Inch Projected Capacitive Touch Panel USB Interface 10 Points ITO Glass
