Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port
Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port
Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port
Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port
Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port
Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port
Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port
Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port
Specifications
Brand Name :
OEM/ODM
Model Number :
ZCC-8365
Certification :
FCC/CE/ROHS/CCC
Place of Origin :
CHINA
MOQ :
1pc
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5K/per month
Delivery Time :
Samples 3-5working days
Packaging Details :
Carton/standard export package
Touch style :
Projected capacitive touch panel
Sizes :
15inch
TP structure :
G+G
Outline of cover lens :
389.6*314.6 +0/-0.4
Total Thickness :
6.35±0.35
Outline of ITO sensor :
321.4*247.38 ±0.3
View area :
305*229 ±0.3
Active area :
308.1*232.1 ±0.3
Interface :
USB（IIC or UART optional）
number of touch points :
10（5points optional）
light Transmittance :
more than 83%
Input voltage :
5V
Response time :
8-10ms
Pressure endurance valve :
Less than 10G
surface hardness :
6H
Thickness for cover lens :
5mm
Input method :
Finger or capacitive touch pen
Application :
Ordinary electric equipments and automatic office facilities.
Description

Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port

Projected Capacitive TouchScreen Technology

Projected Capacitive Technology permits more accurate and flexible operation by etching the conductive layer on the touch screen.

Projected Capacitive Technology (PCT) is a more robust solution versus resistive touch technology since PCT's top layer is made of glass.

Touch-China's Projected Capacitive Touchscreens can support resolutions up to 1024 x 1024 with a sampling rate of 50 times per second.

Our Projected Capacitive Touch Screens uses multiple layers of glass wih optical lamination in assembly process. This makes the PCT

touch screen the same touchness as tempered glass which could stand against shock and impact.

Projected Capacitive touch panels are embedded with high performance IC and users can enlarge, shrink, rotate, flip and drag pages easily

due to the multi-touch gesture support (multi touch touch screen).

Advantage


■ Multi-points touch
■ Superior image clarity with high light transmission

■ Controller IC close to sensor for best performance
■ Sensitive and fast response
■ More application in electronic fields

For CAPACITIVE TOUCH, it is better to know the following:

Specification

№ Item Specification
1 Item model ZCC-8365
2 Detection method Projected Capacitive
3 Size 15"
4 Aspect ratio 4:3/16:9
5 Resolution According to the size
6 Input method Finger/capacitive touch pen
7 Touch action force 30~60g
8 Operating Voltage 3.3V adjustable
9 Operating current 2.5~10mA Depends on IC
10 Operating temperature -10°C~60°C
11 Storage temperature -20°C~70°C ,＜85%RH；
12 Humidity 10%~90%RH at 40°C, non-condensing
13 Relative humidity 10%~90%RH at 40°C, non-condensing
14 Response time <8/10ms
15 Transparency ≥83% depends on the quantity of layers
16 Surface hardness ≥6H
17 Material G+G
18 Thickness

5mm adjustable
19 Light transmission 83-90%
20 Durability Scratch-free; More than 50,000,000 touches in one location without failure
21 Drivers available Windows 10,Windows 7/8/XP,,Linux,Mac,Android
22 Certificates CE, FCC, RoHS, CCC
23 Working environment Under sunlight,indoor and outdoor
24 Finger Touch life ≥50,000,000 times
25 Warranty 1 year

Application


■ Mobile phone
■ Car navigation (GPS)
■ E-book
■ Tablet PC
■ Handheld game device
■ Electronic photo frame

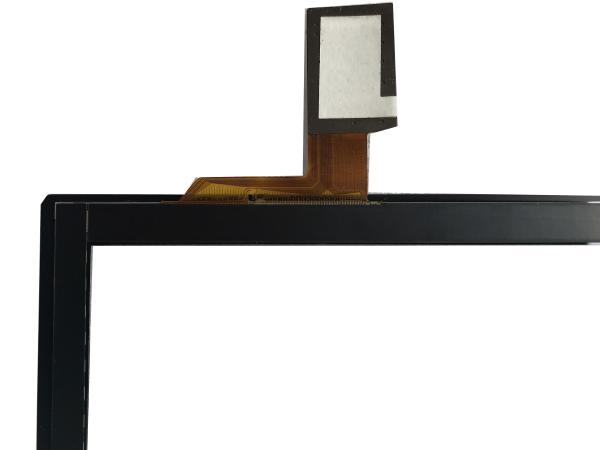

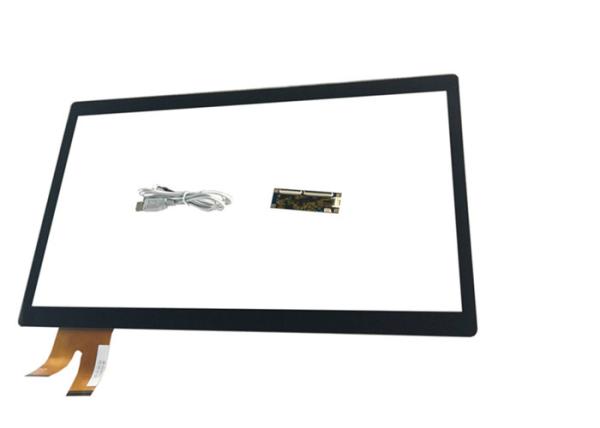

Product detailed drawing for reference:

Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port

Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port

Some Product case for reference

Anti Explosion 15inch 5mm Projected Capacitive Touch Panel IIC USB Port

Package with export standard
