7 Inch Projected Capacitive Touch Screen with I2C Interface and 5 Point touch Thin Thickness
7 Inch Projected Capacitive Touch Screen with I2C Interface and 5 Point touch Thin Thickness
7 Inch Projected Capacitive Touch Screen with I2C Interface and 5 Point touch Thin Thickness
7 Inch Projected Capacitive Touch Screen with I2C Interface and 5 Point touch Thin Thickness
Specifications
Brand Name :
Touch-China
Model Number :
ZCC-6504
Certification :
CE, Rohs, FCC
Place of Origin :
china
MOQ :
200pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
20K pcs / month
Delivery Time :
10-15days
Packaging Details :
Standard export package
size :
7inch
Interface :
I2C
Touch Points :
5 points
TP Structure :
Cover glass+SCA+ITO sensor glass
Surface hardness :
More than 7H
Input method :
Finger or capacitive pen
Working voltage :
3.3V
TP type :
COF
Transmittance :
≥85%
IC controller :
Goodix911
Description

7 Inch Projected Capacitive Touch Screen with I2C Interface and 5 point touch

Product Specification:

Size: 7 inch
Total Thickness: 1.45±0.2mm
Outline of Cover Lens: 192.34*128±0.1mm
Outline of ITO Sensor: 164.5*99.1±0.2mm
Viewing Area: 154.81*86.52±0.2mm
Active Area: 158*90.3±0.2mm

TP Structure:

 G+G
Controller: ILITEK, WEIDA, Silion works, EETI (Optional)
Cover glass thickness: 1.1mm,1.8mm,2mm,3mm (Optional)
Cover glass treatments: AG, AR, AF, AE (Optional)
CTP interface: IIC
Operating system: Android, Linux
Working temperature and humidity -20°C~70°C,20~85% RH, non-condensing
Storage environment and humidity : -30°C~80°C, 20~85% RH, non-condensing
Transparency ≥85%
Response time: <10ms
ESD Air discharge: 8KV
ESD Contact discharge: 4KV
Pen hitting life: ≥10,000,000/point
Pen sliding Durability: ≥500,000 times
Finger Touch life: ≥35,000,000 times
Certifications: CE, FCC, RoHS
Aspect ratio: 16:9
Report rate: 100HZ
Input method: Finger or capacitive pen
Warranty: 1 Year

FAQ:

Q. Are you a factory or trading company?

A: We are a factory.

Q. Does your products have CE&Rohs certificates?

A: Yes.

Q. What’s the shipping method?

A: By sea / air / express, which methods to be used on the basis of customer’s requirements.

Q. What’s the payment methods?

A: T/T, 30% deposit before production, the balance before shipment.

Q. What size of touch screen can you manufacture?

A: 3.5” to 65”, the bigger size are researching and developing.

Q: Can I order a sample before quantity order? And what’s the deliver Time of sample order?

A: Yes, sure.Our company accept sample order before large order. As normal. We have some samples in stock of each model .so we will send the sample order within 1 working days.

Q: Can you accept paypal or escrow for sample order?if not, which payment do you accept?

A: Sorry, Our company is not retailer,we are wholesaler.paypal or escrow is not accept. As the payment terms, we prefer Bank transfer.

Q: How many days will arrive to our country?

A: Based on our experience, as normal it takes about 3-5days will arrive to your country.

Q: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry.

Delivery Time:

  • Samples in stock: 1~3 working days
  • Customized project: 10~15 days for samples
  • Mass production: 15~20 days

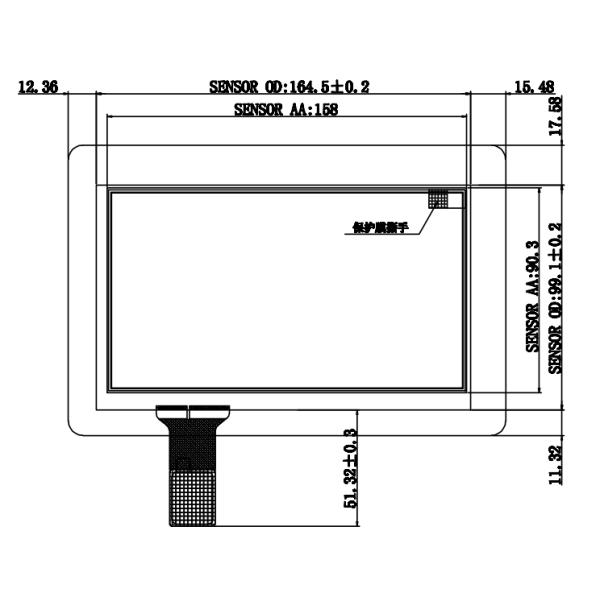

Technical Drawings:

7 Inch Projected Capacitive Touch Screen with I2C Interface and 5 Point touch Thin Thickness

7 Inch Projected Capacitive Touch Screen with I2C Interface and 5 Point touch Thin Thickness
