10inch 10.1inch 10ms Custom Capacitive Touch Panel For Mobile Phone

Custom Projected Capacitive Touch Panel

Our capacitive touch panel design can be paired with housing design from the customers to cover their lens or replace the physical buttons on its original module.

Touch-China is also capable of doing the customized shape needed to pair with customer's mechanical design.

With the assistance of the simulation software, equiment with high accuracy and simplifying assembly process, Touch-China is capable

of making the sample in shorter period and with lower development charge.

Main Advantage

■ Multi-points touch
■ Superior image clarity with high light transmission

■ Controller IC close to sensor for best performance
■ Sensitive and fast response
■ More application in electronic fields

For CAPACITIVE TOUCH, it is better to know the following:

1. Touch Type (Single Point, Touch key, Two Point, multi-touch, Glove, water, salt water)

2. Handwriting support (Yes/No) and Drilling Holes (Yes/No)

3. Preferred controller (if available)

4. Touch Panel Dimensions (Active Size, Outer Dimension with Cover, & Touch panel thickness)

5. LCD Dimensions (Active Area, Viewing Area, & Resolution)

6. Connector (B2B or FPC) and Interface Type (SPI or I2C)

7. Drop Test Condition (<0.5m, <1m, <3H or none) 8) Surface Hardness (>2H, >3H or >7H)

8. Surface treatment requirement: AG(Antiglare), AR(Anti-reflection), AF(Anti-fingerprint), AS(Anti-shuttering)

9. Bonding to LCD: Air bonding or optical bonding?

10. Cover glass material and thickness (Tempered, Gorilla, Dragtrail, Plastic)

Specification

Application

■ Mobile phone
■ Car navigation (GPS)
■ E-book
■ Tablet PC
■ Handheld game device
■ Electronic photo frame

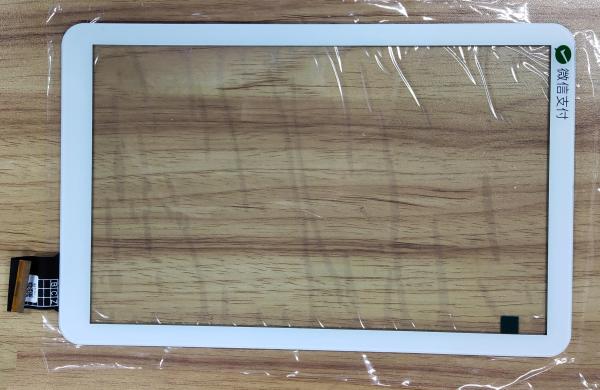

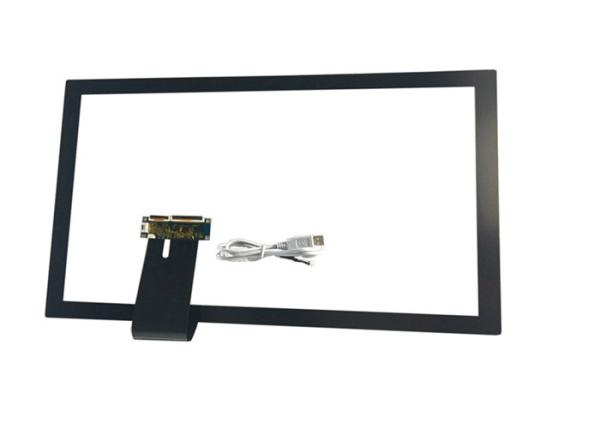

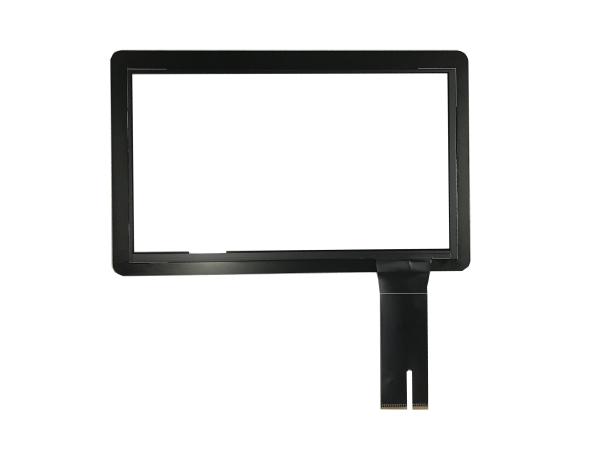

Some Product photos for example
