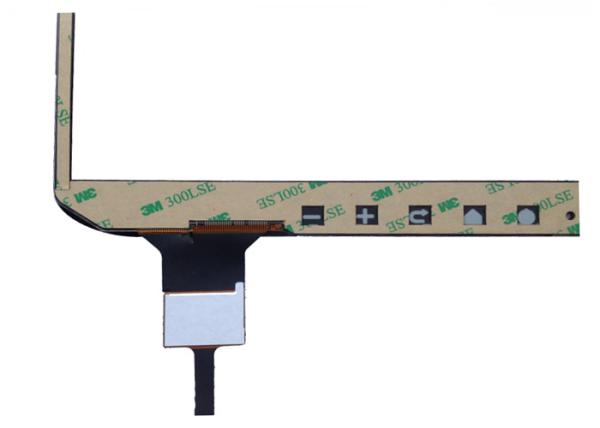

5 Points Car Touch Screen , 9 Inch Capacitive Touch Panel For GPS IIC Interface
5 Points Car Touch Screen , 9 Inch Capacitive Touch Panel For GPS IIC Interface
5 Points Car Touch Screen , 9 Inch Capacitive Touch Panel For GPS IIC Interface
5 Points Car Touch Screen , 9 Inch Capacitive Touch Panel For GPS IIC Interface
5 Points Car Touch Screen , 9 Inch Capacitive Touch Panel For GPS IIC Interface
5 Points Car Touch Screen , 9 Inch Capacitive Touch Panel For GPS IIC Interface
Specifications
Brand Name :
Touch-China
Model Number :
ZCC-4169
Certification :
RoHS, CE, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
500K per month
Delivery Time :
10-15days
Packaging Details :
Standard export package
Size :
9inch
Touch points :
5points
Interface :
IIC
TP Structure :
G+G (cover glass+UV glue+ITO glass)
Surface Hardness: :
>3H
IC controller :
Goodix
Transparent :
≥85%
OS :
Windows 7/8/10,Android,Linux,XP,WCE
Certificates :
CE, FCC, RoHS
Color :
Black bezel
Description

9inch Car Touch Screen with 5 points capacitive touch panel for GPS

Product informations:

Type Projected capacitive touch panel
Size 9 inch
Total thickness 1.475±0.2mm
Outline of cover lens 206.22*139.39±0.1mm
Outline of ITO sensor 204.62*138.09±0.2mm
Viewing area 196.61*114.55±0.2mm
Active area 197.61*115.55±0.3mm
Interface IIC
Touch point 5 points
Transmittance ＞85%
Hardness ＞3H
Chipset Goodix 927
Working environment -20-70℃, ≤85%RH
Storage environment -30-80℃, ≤85%RH

Capacitive touch panel benefits:

  • Outstanding performance with 10-point multi touch compliant
  • Long-term life time, durable and reliability
  • Stable, no-drift and parallax-free against touching screen
  • Vandal and abrasion resistant screens, ideal for applications in harsh environment
  • Sensitive and Fast response
  • Plug and play ,calibration freely

FAQ:

Q. Are you a factory or trading company?

A: We are a factory.

Q. Does your products have CE&Rohs certificates?

A: Yes.

Q. What’s the shipping method?

A: By sea / air / express, which methods to be used on the basis of customer’s requirements.

Q. What’s the payment methods?

A: T/T, 30% deposit before production, the balance before shipment.

Q. What size of touch screen can you manufacture?

A: 3.5” to 65”, the bigger size are researching and developing.

Q: Can you accept paypal or escrow for sample order?if not, which payment do you accept?

A: Sorry, Our company is not retailer,we are wholesaler.paypal or escrow is not accept. As the payment terms, we prefer Bank transfer.

Custom Solution:

  • Projected capacitive touch panel and cover glass surface treatment.
  • P-Cap is constructed from two layers of ITO glass which are etched to leaved a grid pattern of X and Y line elements.
  • Customize the entire touch solution with the pattern etched according to different touch IC specifications.
  • Customize the cover glass with different masking and surface coating solutions for varieties.

Technical Drawing:

5 Points Car Touch Screen , 9 Inch Capacitive Touch Panel For GPS IIC Interface

5 Points Car Touch Screen , 9 Inch Capacitive Touch Panel For GPS IIC Interface
