10.1inch Fast Response 5 Point Capacitive Touch Screen , Durable Cypress Touch Screen Digital Signage High Precision
10.1inch Fast Response 5 Point Capacitive Touch Screen , Durable Cypress Touch Screen Digital Signage High Precision
10.1inch Fast Response 5 Point Capacitive Touch Screen , Durable Cypress Touch Screen Digital Signage High Precision
10.1inch Fast Response 5 Point Capacitive Touch Screen , Durable Cypress Touch Screen Digital Signage High Precision
Specifications
Brand Name :
Touch-China
Model Number :
ZCC-5048
Certification :
CE, Rohs, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
15K pcs / month
Delivery Time :
10-15days
Packaging Details :
Standard export package
size :
10.1inch
Interface :
I2C
Touch Points :
5points
TP Structure :
PET lens+OCA+ITO sensor glass
Surface hardness :
More than 6H
Input method :
Finger or capacitive pen
Working voltage :
I2C (2.8V ~ 3.3V)
Transmittance :
≥83%
IC Controller :
GT11
Warranty: :
1 Year
Description

Car Touch Panel for 10.1" IPS Car Monitor With Capacitive Multi Touch Panel

Basic Info:

Size: 10.1inch
Total Thickness: 1.595±0.2mm
Outline of PET Lens: 310.64*152.5±0.2mm
Outline of ITO Sensor: 301.52*149.4±0.2mm
Viewing Area: 222.22*124.78±0.2mm
Active Area: 223.22*125.78±0.3mm
Controller: Goodix, Atmel, Cypress
CTP interface: IIC
Operating system: Win7, Win8, Win10, WCE, Android, Linux, XP
Working temperature and humidity: -20°C~70°C,20~85% RH, non-condensing
Storage environment and humidity : -30°C~80°C, 20~85% RH, non-condensing
Transparency: ≥85%
Certifications: CE, FCC, Rohs
Pen hitting life: ≥10,000,000/point
Pen sliding Durability: ≥500,000 times
Finger Touch life: ≥35,000,000 times
Response time: <10ms


Capacitive touch panel benefits:

  1. Outstanding performance with 10-point multi touch compliant
  2. Long-term life time, durable and reliability
  3. Stable, no-drift and parallax-free against touching screen
  4. Vandal and abrasion resistant screens, ideal for applications in harsh environment
  5. Sensitive and Fast response
  6. Plug and play ,calibration freely


Delivery Time:

  1. Samples in stock: 1~3 working days
  2. Customized project: 10~15days for samples
  3. Mass production: 10~18days

Prodcut Application:

  1. Automotive / GPS navigation
  2. Android car stereo
  3. Car Multimedia Player
  4. DVD GPS CD Bluetooth Audio
  5. Android car stereo
  6. Car Multimedia Player
  7. DVD GPS CD Bluetooth Audio

Competitive advantages:


1. We have 23-year experience in designing and manufacturing touch panels.
2. We have strong research team for both software and hardware and provide before and after-sale service.
3. We cooperate with excellent customers and suppliers.
4. We have long-term cooperation with excellent IC suppliers all over the world.
5. We have good guarantee for product quality and lead time.
6. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.

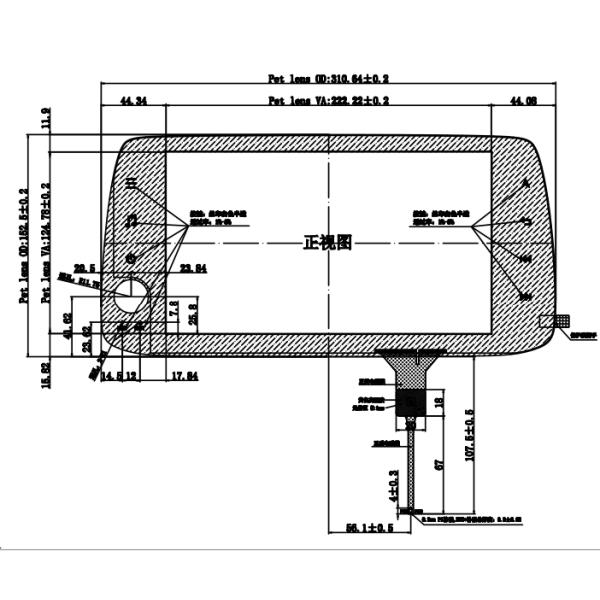

Technical Drawings:
10.1inch Fast Response 5 Point Capacitive Touch Screen , Durable Cypress Touch Screen Digital Signage High Precision
10.1inch Fast Response 5 Point Capacitive Touch Screen , Durable Cypress Touch Screen Digital Signage High Precision

10.1inch Fast Response 5 Point Capacitive Touch Screen , Durable Cypress Touch Screen Digital Signage High Precision
