250cd/㎡ TFT Display 17 Inch CTP Optical Bonding Module
250cd/㎡ TFT Display 17 Inch CTP Optical Bonding Module
Specifications
Brand Name :
Touch-China
Model Number :
ZCQTH-6822
Certification :
CE, Rohs, FCC
Place of Origin :
china
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
20K pcs / month
Delivery Time :
10-15days
Packaging Details :
Standard export package
size :
17inch
Resolution :
1280×1024
Touch Points :
10 points
Touch Screen :
Capacitive touch screen
Surface hardness :
More than 7H
Input method :
Finger or capacitive pen
Working voltage :
USB(5V)
Bonding way :
Optical bonding (OCA)
Transmittance :
≥85%
Brightness :
250cd/㎡
Description

17 Inch Optical Bonding Module of CTP with TFT Display for Industrial Touch Monitor

Product Specification:

Items Parameters

LCD Screen Size

17 inch

Aspect ratio

 4:3

Resolution

1280×1024

Visible Area

H)337.92mm×(V)270.336mm

Viewing Angle

 85/85/80/80 (Typ.)(CR≥10)

Contrast Ratio

 1000:1

Response Time

3.5/1.5 (Typ.)(Tr/Td) ms

Colors D

 8Bit 16.7M , 72% NTSC

Scanning Frequency

 60Hz

Interface

 LVDS(See 1.2 for details)

Operation Voltage

 5V

Back light Source

 WLED

Center Luminance of White

 250cd/㎡

Operating Lift of backlight

Min. 30K hours

Operation Voltage

37.7V~44.2V (for reference)

Operation Current

Typ current:60ma

BLU Power consumption

Max. 10.6W(for reference)

Touch Screen Type

10 point G+G capacitive touch panel

Touch Mode

Finger or capacitor pen

Response Speed

 10ms

Reported Rate

 100Hz

Resolution

 ≥4096×4096

Touch Times

Durable single-point≥30 million times

Interface

 USB

Working Voltage

Typical value+5VDC

Glass Thickness

Total 2.45mm±0.2(Cover1.1mm+SCA0.25mm+Senser1.1mm)

Surface Treatment

 NO

Surface Durability

Surface hardness equals glass, Moh's hardness level≥7

Transmittance

 ≥85%

Bonding Way

Optical bonding

Bonding Material

 OCA

Thickness

 0.175mm

Modele Size

(W)421mm×(H)346mm×(T)14.8mm

Net Weight

 1.98KG

Working Temperature

 0℃~+50℃

Storage Temperature

 -20℃~+60℃

Working Humidity

 ≤85%RH(non-condensing)

Storage Humidity

 ≤85%RH(non-condensing)

LVDS Interface Pin Define:

CN1 socket(Module size):FI-X30HL (JAE)​

Pin NO. Symbol Signal
1 RXO0- Pixel data
2 RXO0+ Pixel data
3 RXO1- Pixel data
4 RXO1+ Pixel data
5 RXO2- Pixel data
6 RXO2+ Pixel data
7 GND Ground
8 RXOCLK- Pixel clock
9 RXOCLK+ Pixel clock
10 RXO3- Pixel data
11 RXO3+ Pixel data
12 RXE0- Pixel data
13 RXE0- Pixel data
14 GND Ground
15 RXE1- Pixel data
16 RXE1+ Pixel data
17 GND Ground
18 RXE2- Pixel data
19 RXE2+ Pixel data
20 RXECLK- Pixel clock
21 RXECLK+ Pixel clock
22 RXE3- Pixel data
23 RXE3+ Pixel data
24 GND Ground
25 NC Do not connect
26 NC Do not connect
27 NC Do not connect

28/29/30

 VDD Power Supply Input Voltage 5V

Features:
1. Projected Capacitive touch screen
2. Customization
3. 3.5 inch to 70 inch(More large sizes products are developed now)
4. Multi touch point
5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
6. USB interface
7. Low MOQ

Applications:
Touch Kiosk, All in one
Digital Signage, Tablet pc
Advertising Machine
Medical device, Industrial pc panel
Multi-touch table, POS
Restaurant menu, ATM etc.

Technical Drawings:

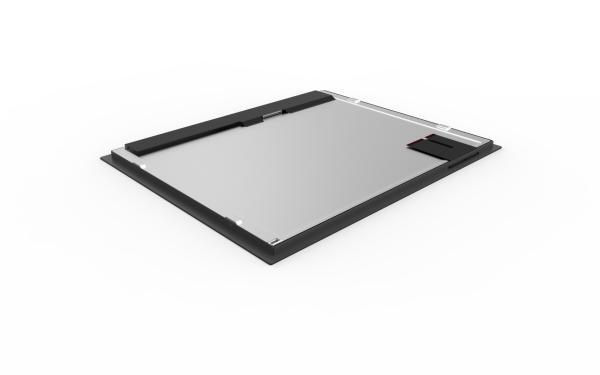

250cd/㎡ TFT Display 17 Inch CTP Optical Bonding Module
