Kiosk 17 Inch Capacitive Multi Touch Screen Response Speed Fast High Resolution
Kiosk 17 Inch Capacitive Multi Touch Screen Response Speed Fast High Resolution
Kiosk 17 Inch Capacitive Multi Touch Screen Response Speed Fast High Resolution
Kiosk 17 Inch Capacitive Multi Touch Screen Response Speed Fast High Resolution
Specifications
Brand Name :
Touch China
Model Number :
ZCC-4613
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
15K per month
Delivery Time :
10-15days
Packaging Details :
Standard export package
Size :
17 inch
Touch points :
10 points
Interface: :
USB
TP Structure :
G+G
Surface hardness :
≧7H
IC solution :
Weida
Input Method :
Finger Or Capacitive Pen
Transmittance :
≥85%
OS :
Win7, Win8, Win10, WCE, Android, Linux, XP
Description

Kiosk 17 Inch Capacitive Multi Touch Screen Response Speed Fast High Resolution

Basic specification:

Size 17 inch
Total thickness 2.4±0.3mm
Outline of Cover Lens 377*309±0.3mm
Outline of ITO Sensor 355.22*289.62±0.3mm
Viewing Area 338.92*271.34±0.3mm
Active Area 341.92*274.34±0.3mm
Interface USB
Input voltage 5V
Response time 10ms
Report rate 100 HZ
Input method Hand writing or capacitive pen
Transmittance ﹥85%
Package list 17 inch Touch panel, USB controller board and USB cable

Features:

  1. Projected Capacitive touch screen
  2. Customization
  3. 3.5 inch to 65 inch(More large sizes products are developed now)
  4. Multi touch point
  5. OS support:Windows 7/8/10,Android,Linux,XP,WCE
  6. USB/IIC port
  7. Low MOQ

Applications:

  • Kiosk,Karaoke, All in one,Digital Signage,Tablet pc, Advertising player,
  • Education Whiteboard, Medical device, Industrial pc panel, Multi-touch table,
  • POS, Restaurant menu, ATM etc.

Kiosk 17 Inch Capacitive Multi Touch Screen Response Speed Fast High Resolution

Development process

  • Receive customer's technical files, including PCAP drawing, LCD specification.
  • Recommend standard products or customize products based on customer's requirements.
  • Offer engineering drawing for confirmation and fill in project kick-off form.
  • Make samples according to the confirmed drawing.
  • Debug the samples based on the information on kick-off form, keep the FW.
  • Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
  • Pilot production.
  • Mass production

Delivery time:

  • Samples in stock: 1~3 working days
  • Customized project: 15days for samples
  • Mass production: 15~20days

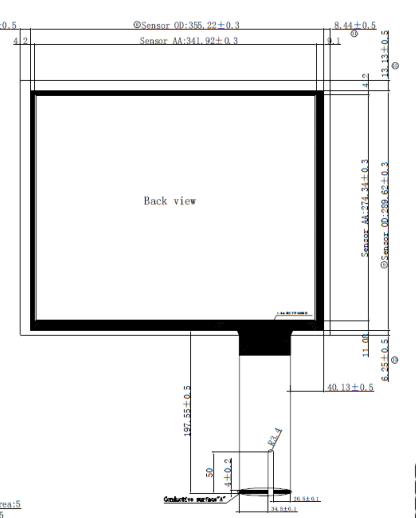

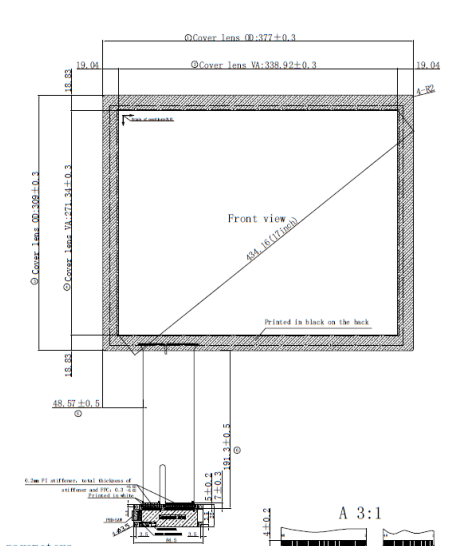

Technical Drawing:

Kiosk 17 Inch Capacitive Multi Touch Screen Response Speed Fast High Resolution

Kiosk 17 Inch Capacitive Multi Touch Screen Response Speed Fast High Resolution

Some of our great partners:
Kiosk 17 Inch Capacitive Multi Touch Screen Response Speed Fast High Resolution
Kiosk 17 Inch Capacitive Multi Touch Screen Response Speed Fast High Resolution
Kiosk 17 Inch Capacitive Multi Touch Screen Response Speed Fast High Resolution
