10 Point Touch Capacitive Touch Screen of COF Structure Used for Intelligent Home Device
10 Point Touch Capacitive Touch Screen of COF Structure Used for Intelligent Home Device
10 Point Touch Capacitive Touch Screen of COF Structure Used for Intelligent Home Device
10 Point Touch Capacitive Touch Screen of COF Structure Used for Intelligent Home Device
Specifications
Brand Name :
Touch-China
Model Number :
ZCC-7461
Certification :
CE, RoHS, REACH
Place of Origin :
China
MOQ :
200pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25K pcs / month
Delivery Time :
20-25 days
Packaging Details :
Standard export package
size :
10.1inch
Interface :
I2C
Touch Points :
10 points
TP Structure :
Cover glass+SCA+ITO sensor glass
Surface hardness :
More than 7H
Input method :
Finger or capacitive pen
Working voltage :
3.3V
TP type :
COF
Transmittance :
≥85%
IC controller :
ILItek 2511
Description

10 Point Touch Capacitive Touch Screen of COF structure Used for Intelligent Home Device

Parameters of the touch panel

Size:

10.1 inch

Total Thickness:

1.525±0.2mm

Outline of Cover Lens:

238.9*157.25±0.1mm

Outline of ITO Sensor:

229.7*146.7±0.2mm

Viewing Area:

217.18*135.96±0.2mm

Active Area:

218.18*136.96±0.3mm

TP Structure:

G+G

Controller:

ILItek 2511

Cover glass thickness:

0.7mm

Cover glass treatments:

AG, AR, AF (Optional)

CTP interface:

I2C / USB

Operating system:

Android, Linux, XP, Win7, Win8, Win10

Working temperature and humidity

-20°C~70°C,20~85% RH, non-condensing

Storage environment and humidity :

-30°C~80°C, 20~85% RH, non-condensing

Transparency

≥85%

Response time:

<10ms

ESD Air discharge:

8KV

ESD Contact discharge:

4KV

Pen hitting life:

≥10,000,000/point

Pen sliding Durability:

≥500,000 times

Finger Touch life:

≥35,000,000 times

Certifications:

CE, RoHS, REACH

Aspect ratio:

16:10

Report rate:

100HZ

Input method:

Finger or capacitive pen

Ball drop test standard

227g, 100cm for 3 times

Warranty:

1 Year

Project proceeded steps

1. Receipt of customer’s RFQ ( detailed requirements of the touch panel, qty. Needed etc.)

2. Evaluate the drawing and offer the redesigned drawing and quotation to the customer.

3. Confirm the drawing and quotation.

4. Go ahead with sample manufacturing

5. Samples’ testing and confirmation of samples

6. Mass production

7. Shipment, follow up with the feedback of mass production.

Reliability test conditions

Touch Panel Reliability Test Condition

1. Set the initial temperature to be 25℃

2. Ramp to 60℃at 90% RH, 2H

3 .Soak at 60℃at 90% RH, 2H

4. Ramp from 60℃at 90% RH to -20℃, 4H

5. Soak to -20℃, 2H

6. Ramp from -20℃to 25℃, 2H

 Condition Temp. Humidity Time
Intitial condition 25℃ / /
Ramp to 60℃ 60℃ 90% 2H
Soak 60℃ 90% 2H
Ramp to -20℃ -20℃ / 4H
Soak -20℃ / 2H
Ramp to initial temperature 25℃ / 2H
12H for each cycle(from step 1 to 6), total 28 cycles. Duration of one circle 12H

Cover glass special treatment

AF coating: It makes the screen more smooth. when there is water on the screen, it can drop or be wiped from the screen easily. The standard for AF coating is defined by the water drop angle. The angle should be more than 110° and 95 ° after being ground by #0000 steel wool with 500g force for 2000 times.
AG coating: AG coating changes the light reflection and can improve the situation in which the the images on the dispaly can be hardly visible under strong light. There are sprayed AG and etched AG coating. It usually defined by two indexs, gloss and haze.
AR coating: AR coating decreases the reflection of the light to increase the transmittance of the screen. The images on the displays look more vivid and clearer.
AB coating: It means the anti-bacterial feature. It is widely used in medical fields.

FAQ

1. What’s your lead time?

Re: The lead time for both samples and mass production is 15 days.

2. Are you a trading company or manufacturer?

Re: We are a manufacturer.

3. What kind of products can you provide?

Re: We can provide capacitive touch panel from 3.5” to 86” and optical bonding products.

4. How to deal with the defective touch panel after they are shipped.

Re: First, we will make clear what the issue is. Usually the issue can be solved by either remote testing or sending back representative defective touch panels.

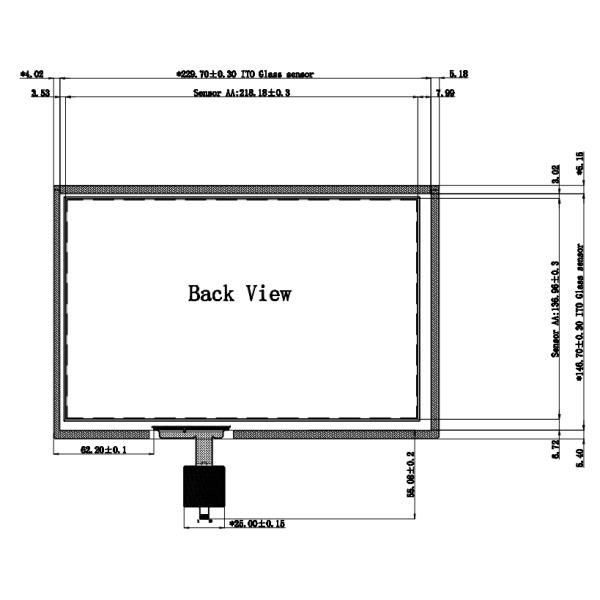

Engineering drawing

10 Point Touch Capacitive Touch Screen of COF Structure Used for Intelligent Home Device

10 Point Touch Capacitive Touch Screen of COF Structure Used for Intelligent Home Device

Shipments

DHL, UPS, FedEx, TNT etc.
