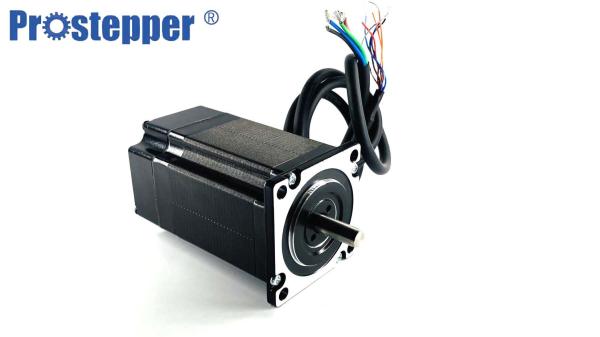

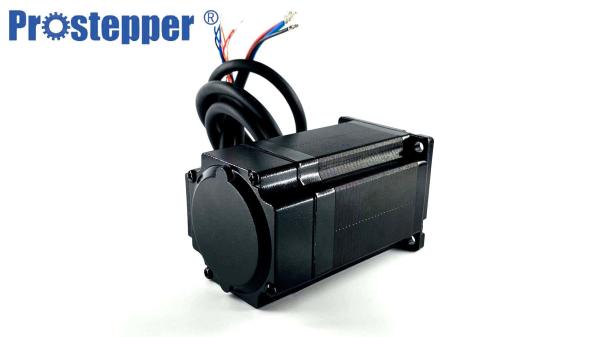

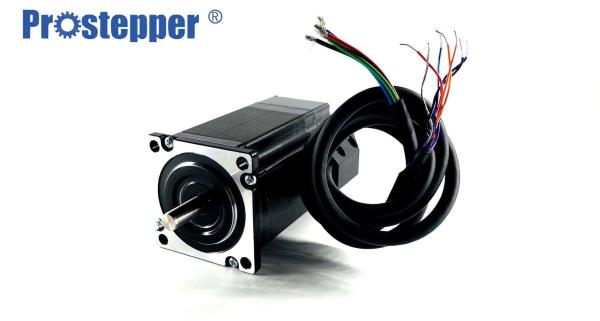

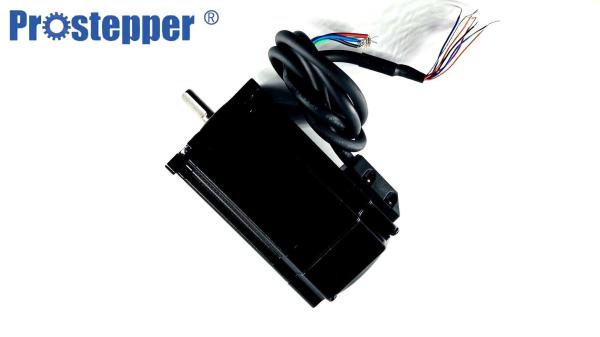

57mm*55mm Encoder Stepping Motor Standard Type NEMA23 1.8 step motor

​Product description

• Accurate Speed Control

The rotational speed of the stepping motor can be precisely controlled ,By controlling the frequency of the electric pulse.

• The material is selected from well-known manufacturers at home and abroad. The advantages are light weight, good heat dissipation performance, good thermal conductivity, die-casting, good plasticity, higher elongation than iron, low noise, good motion stability, the disadvantages are high price, low hardness

• Stepper motors are economical, accurate, and easy to control, and they can operate reliably in a variety of environments (depending on the level of protection IP chosen) preferably in machines with additional enclosures or in clean environments

• Strictly control the production of parts to improve the quality of parts
• Automatic machine operation, stable automatic work, high processing efficiency.
• Online testing of technical parameters to ensure the consistency of data product parameters

  ---

Specifications

Speed/Torque Characteristics(Reference Value)

Outline(Unit:mm)

Encoder Specifications

Applications:

• Used for robots stepper motor,
• Electronic automatic equipment stepping motor,
• Medical instrument stepping motor,
• Advertising instrument stepper motor
• Medical equipment
• Effective angle and speed control
• Textile machineryIndustrial automationOffice automation

Note

The winding on this article is a 4 Wire Bipolar.

0.9° and 1.8° Hybrid Stepper Motors

1.8° Step Angle,The motors are directly compatible with the stepper motor drive boards and also drive either motor (if required) in the half step mode i.e. 0.9° per step resulting in higher resolution, greater performance stability and faster stepping rates. Direction, velocity, acceleration/deceleration can be controlled by a stepper motor controller.,Applying the correct electrical pulse sequence to the windings of the stepper motor results in a 1.8° step angle rotation of the spindle (i.e. 200 steps per revolution). When correctly loaded and driven these motors will produce discrete output steps. The number of steps and speed of rotation are determined by the number of pulses and frequency of the input signal. This provides an ideal method for speed and position control. The motors are directly compatible with stepper motor drive boards.,

Applications include:

• Robotics
• Paper feed mechanisms
• Teletype printers
• Small machine tools
• Computer peripherals
• X-Y plotters

Quality assurance:

1. All stepper motors have CE and RoHS certification
2. All motors are tested by a toasting machine for 72 hours
3. All the motors will be shipped after testing
