Specifications
Brand Name :
Prostepper
Model Number :
PEM86H280E1KM
Certification :
CE/ISO/RoHS.
Place of Origin :
JIANGSU,CHINA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C,
Supply Ability :
250000pcs /per month
Delivery Time :
7-25 work days
Packaging Details :
38.5*24*23
Brand :
Prostepper
Product model :
PEM86H280E1KM
Holding torque :
4.5Nm
Brake Torque :
5N.m
Step angle(degrees) :
1.8 Degree
Current :
6A
Motor length :
80mm
Weight :
3.1kg
Description

nema34 1.8 degree Stepping Motor Brake Stepper Motor With Encoder For plotter

  • Product description of 1.8 degree brake stepper motor
  • Automatic assembly line, improve production efficiency, low cost without human operation, one line down intelligent mechanical automatic assembly

  • The material is selected from well-known manufacturers at home and abroad. The advantages are light weight, good heat dissipation performance, good thermal conductivity, die-casting, good plasticity, higher elongation than iron, low noise, good motion stability, the disadvantages are high price, low hardness

  • Online testing of technical parameters to ensure the consistency of data product parameters
  • .Longer Life

    Stepping motor is a mechanical structure,which does not need be changed by electric brush or Hall sensor,thus reducing the probability and increasing the motor life.Stepping motor life usually determined by the life of the bearing.

  • Accurate position Control

    The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.

  • Specifications
Holding Torque 4.5N.m
Related Current 6A/Phase
Resistance 0.34Ω/Phase
Inductance 2.4MH/Phase
Inertia 1800g.cm²
Index ×
Output Differental
Black Torque 5N.m

Encoder Specifications Brake Specifications

Model E1K E2k5z Model PEM86
Resolution 1000cpr/4000ppr 2500cpr/10000ppr Brake Type Holding Brake
Type Incremental encoder Incremental encoder Voltage 24VDC±5%
Output Mode Differental Differental Power 7.5W
Output Signal A+A-;B+B- A+A-;B+B-;Z+Z- Torque 5N.m
Supple Voltage 5VDC±5% 5VDC±5% Release Time 50ms
  • Stepping Accuracy: ± 5%
  • Resistance Accuracy: ± 10%
  • Inductance Accuracy: ± 20%
  • Temperature Rise: 80°C Max.
  • Ambient Temperature: -20°C ... +50°C
  • Insulation Resistance: 100MOhm min. 500V DC
  • Withstand: 500V AC, 1 Minute

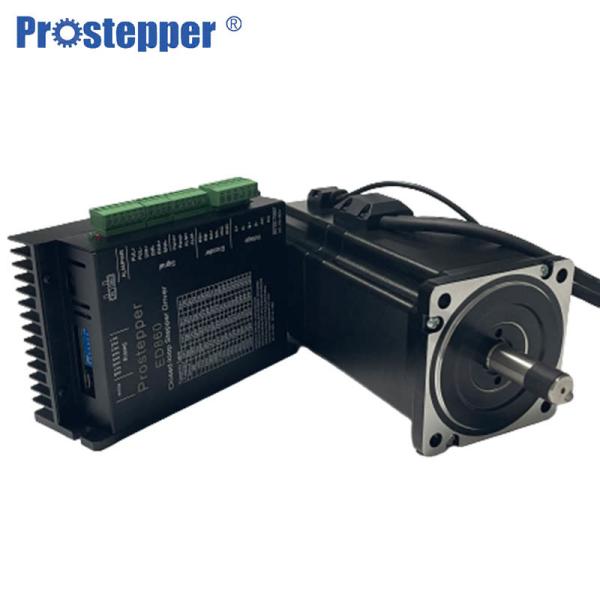

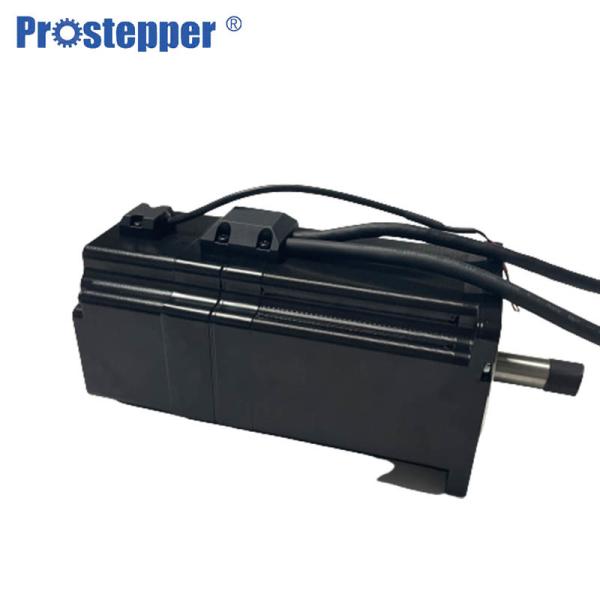

Nema 34 1.8 Degree 86mm 5N.M Brake Stepper MotorNema 34 1.8 Degree 86mm 5N.M Brake Stepper Motor

  • Speed/Torque Characteristics(Reference Value)

Nema 34 1.8 Degree 86mm 5N.M Brake Stepper Motor

Nema 34 1.8 Degree 86mm 5N.M Brake Stepper Motor

  • Primary Competitive Advantages:

· Green Product

· Military Specifications

· Packaging

· Price

· Product Features

· Product Performance

· Prompt Delivery

· Quality Approvals

· Service

· Small Orders Accepted

· Brand-name Parts

· Origin

· Experienced Staff


  • Quality assurance:

1. All stepper motors have CE and RoHS certification
2. All motors are tested by a toasting machine for 72 hours
3. All the motors will be shipped after testing

  • Why choose stepper motor
  • While these applications are the most common, they’re a fraction of what stepper motors can be used for. Generally speaking, any application that requires highly accurate positioning, speed control, and low speed torque can benefit from the use of stepper motors.
  • While servo motors have their place in industry as well as numerous advantages of their own, stepper motors are an ideal solution in many applications.
  • Stepper motors are a robust motion control technology and can be found inside of many common machines and equipment. To learn more, browse stepper motors at Prostepper from the world’s leading suppliers.
