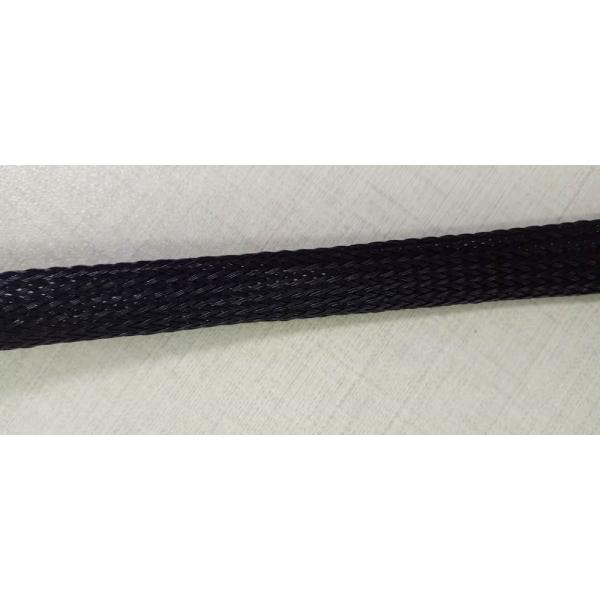

Black Mesh Tube Net Plastic Sleeve For Flexible Wire Cable , Black Flame Retardant Braided Sleeves
Black Mesh Tube Net Plastic Sleeve For Flexible Wire Cable , Black Flame Retardant Braided Sleeves
Black Mesh Tube Net Plastic Sleeve For Flexible Wire Cable , Black Flame Retardant Braided Sleeves
Black Mesh Tube Net Plastic Sleeve For Flexible Wire Cable , Black Flame Retardant Braided Sleeves
Specifications
Certification :
SGS
Place of Origin :
China
MOQ :
500meters
Price :
Negotiate
Payment Terms :
TT
Supply Ability :
50000meters per day
Packaging Details :
Roll
Delivery Time :
5-7days
Materal :
PET
Size :
19MM
Usage :
Flexible Wire Cable
Color :
black
Description

PET high flame retardant braided expanbable sleeving

Polyester high flame-retardant expandable sleeving is manufactured from modified polyester monofilament which is in compliance with UL94V-0 requirement. It not only provide excellent flame retardant properties, but also has durable abrasion resistance.

Application :

It is widely used to cover the wires, cables, wire harnesses, pipes and industrial hoses where the additional protection and high flame retardant are required.

Technical data:

Material: Polyester

Operating range:-50°C ~ +150°C

Melt point: 240±10°C

Flammability: UL94V-0

Standard colours: Black, Grey

Certificate: UL, RoHS, REACH, Halogen Free

Cutting tool: Hot knife

Part No. Nominal size (W) Expandable Range Packing (L)
Inch mm Min.(I)
mm		 Max.(O)
mm		 Standard spool
PET-003 1/8'' 3 1 6 300 m
PET-006 1/4'' 6 3 9 300 m
PET-008 5/16'' 8 5 12 300 m
PET-010 3/8'' 10 7 17 300 m
PET-012 1/2'' 12 8 20 300 m
PET-016 5/8'' 16 10 27 250 m
PET-019 3/4" 19 14 30 200 m
PET-025 1" 25 18 33 200 m
PET-032 1-1/4" 32 20 50 150 m
PET-038 1-1/2" 38 30 60 100 m
PET-045 1-3/4" 45 35 75 100 m
PET-050 2" 50 40 80 100 m
PET-064 2-1/2" 64 45 105 100 m
PET-076 3" 76 64 120 100 m

Black Mesh Tube Net Plastic Sleeve For Flexible Wire Cable , Black Flame Retardant Braided Sleeves

Notes:

1. Nominal size indicates the flat width.

2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4. Special packing, sizes, and colors can be supplied upon request.

5. All numerical data are average or typical values, not including customized sizes.

Black Mesh Tube Net Plastic Sleeve For Flexible Wire Cable , Black Flame Retardant Braided Sleeves
