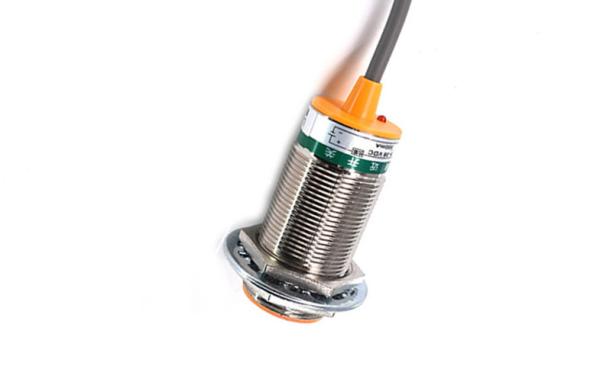

Multipurpose Micro Inductive Proximity Sensor Strong Anti - Interference Ability
Multipurpose Micro Inductive Proximity Sensor Strong Anti - Interference Ability
Specifications
Model Number :
LJ30A3-10-Z/EX
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000only 8day
Place of Origin :
China
Brand Name :
Zhongde
Certification :
CE
Name :
Micro Inductive Proximity Sensor
Feature :
Strong Anti - Interference Ability
Size :
M30
Voltage :
DC
Output Method :
NPN/PNP
Induction Method :
Normally open
Description

Multipurpose Micro Inductive Proximity Sensor Strong Anti - Interference Ability

Description

The Industrial Proximity Switch gives the end user greater flexibility in monitoring different types of equipment. One sensor can be used for a variety of applications, reducing part numbers and inventory.

Details

Two-wire

NPN/PNP

Normally open

DC

Parameter

Lag distance Less than 10% of the detection distance
Detecting objects Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage DC : DC 12~24 (6~36V) pulse (p-p) below 10%
AC : AC 110~220V (36~250V) 50/60Hz
Current consumption N.P : ≤13mA
D : ≤0.8mA
A : ≤1.7mA
Control output N.P : ≤300mA
D : ≤200mA
A : ≤400mA
Loop protection N.P.D : reverse connection protection, surge absorption, load short circuit protection
A : surge absorption
Ambient temperature -30~+65°C (no icing, no condensation)
Ambient humidity -35~95%RH
Insulation resistance 50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect -30~+65°C: detection distance error ±15% at +23°C
-25~+60°C: detection distance error ±10% at +23°C
Voltage effect 6-36V (90-250V) : ±15% of detection distance error
10-30V (220V) : ±10% of detection distance error
Protection level IP67 (IEC)
Material Housing: ABS
Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.
